OmniHub 6/6D– User Manual
Page 38 of 182
3.3.5 OHR6-8VSB-00

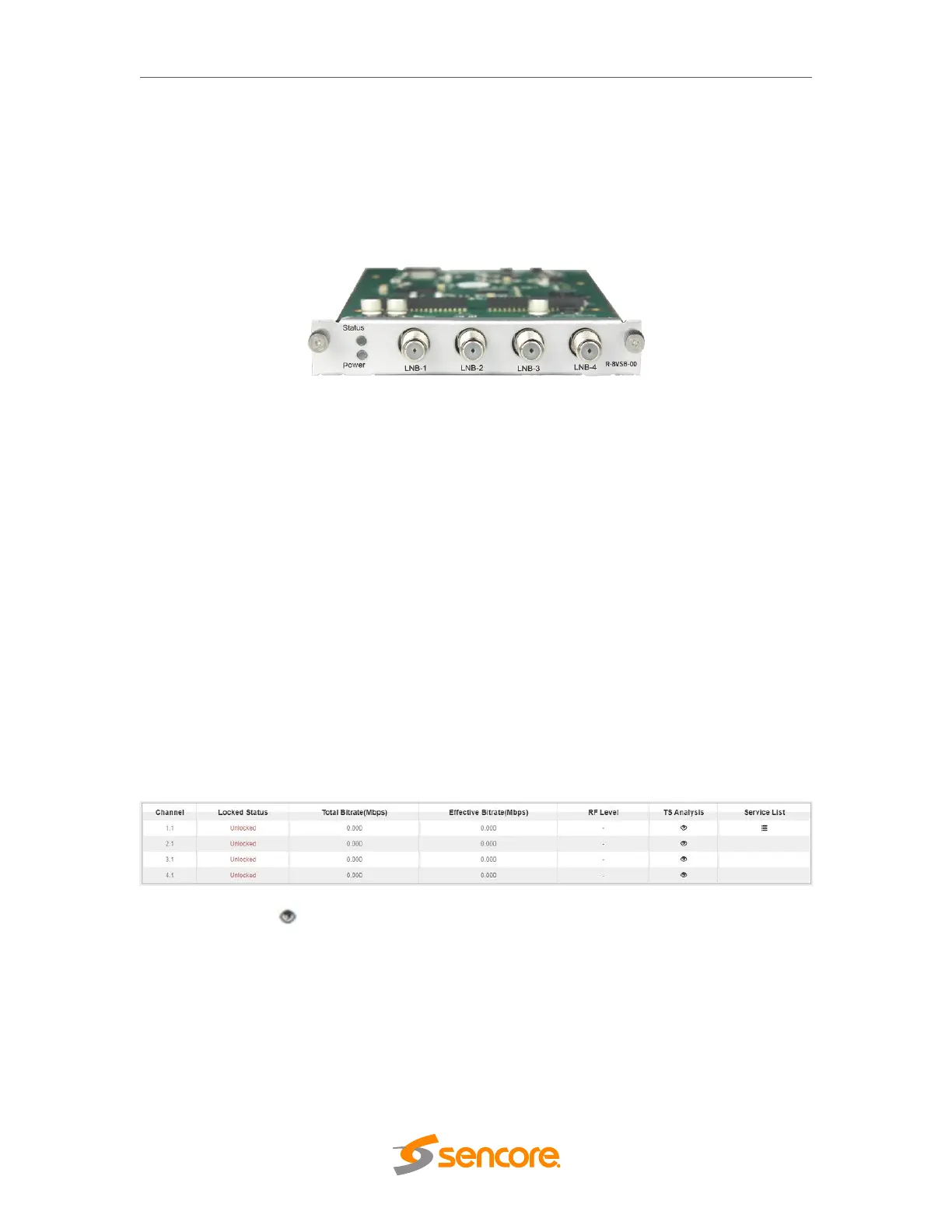

OHR6-8VSB-00 is a 4-channel 8VSB receiving module with 4 RF connectors. Picture
below shows the front plate of the 8VSB module.
Module specification:
- 4 RF female connectors
- Frequency range: 50 860MHz
- Bandwidth: 6MHz
- Modulation: 8VSB
- Signal Level: -80dBm ~ -20dBm
3.3.5.1 Module Status
Status page will display when you select the OHR6-8VSB-00 in the channel list. This
shows the Channel Number, Locked Status, Total Bit Rate, Effective Bit Rate, TS
Analysis and Service List for each 8VSB input stream. Once the channel is connected to
the source and is set with the correct parameters. The status of the channel will display
‘locked’ and you can see the total bitrate and actual bitrate. Total Bit rate in Mbps shows
the bitrate of receiving signals of each channel with LOCKED status, while the Effective
Bit Rate in Mbps shows the actual bitrate of each receiving Channel. RF Level of the
input signal will show you the level of each locked channel.
Clicking the icon under TS Analysis will display the information on the structure of
the transport stream as shown in the picture below.
