OmniHub 6/6D– User Manual
Page 46 of 182

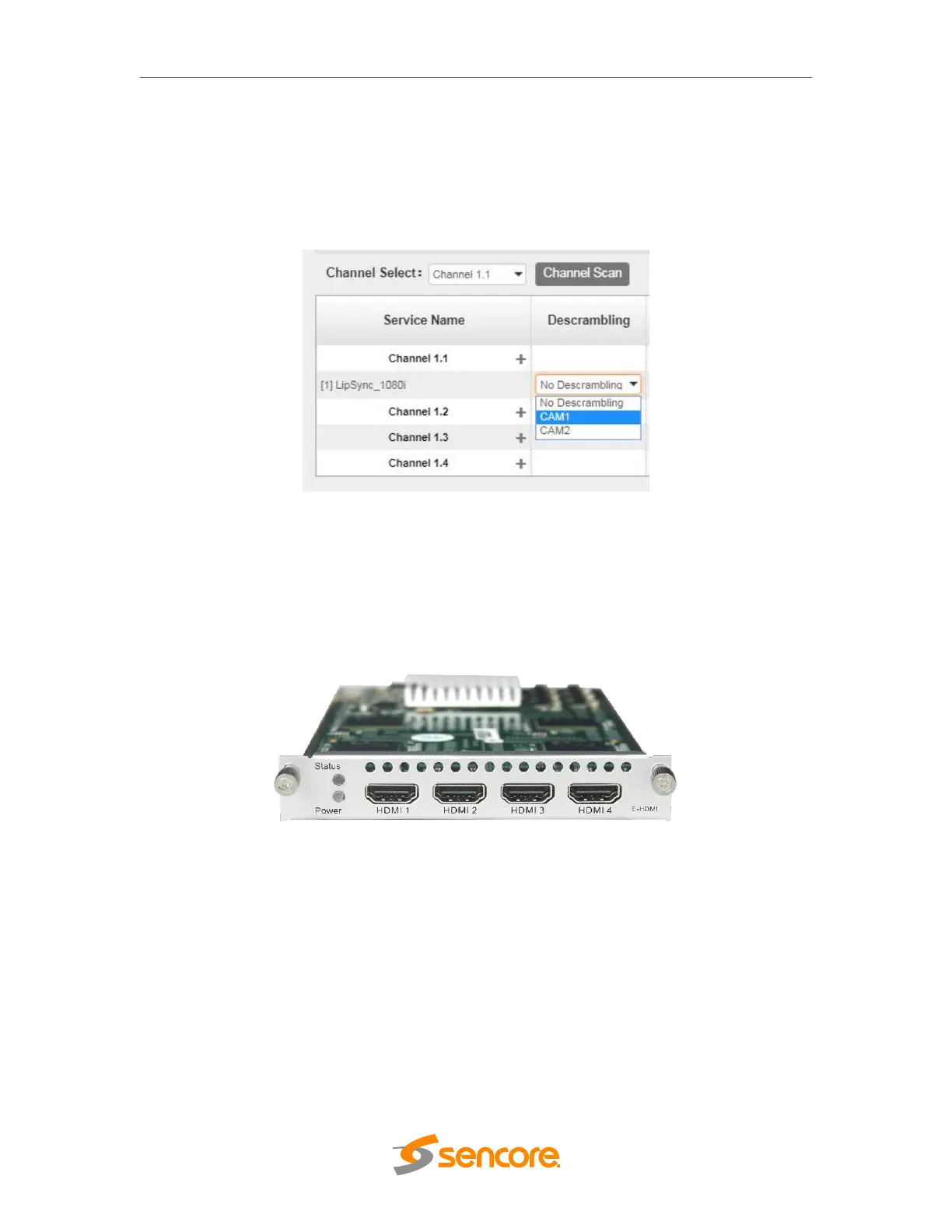

In Descrambling Settings there are CAM1, CAM2 and No Descrambling options. Select
the correct CAM to decrypt the service and click Apply to make the change take effect or
Clear Config button on the right side to clear all configuration.
*You need to click Apply button after you configure service to CAM for descrambling,
otherwise the descrambling configuration will not be saved.
3.4 Encoder Modules
3.4.1 OHE6-HDMI-R01
OHE6-HDMI-R01 is a 4-channel HDMI input encoder which supports H.264 HD/SD or
MPEG-2 SD encoding. The module supports MPEG1-L2, AAC and AC3 audio encoding.
3.4.1.1 Module Status
Module Status for HDMI encoder shows the Bitrate of each port when an HDMI source is
connected. Video resolution of the source video will also appear in the status. Other
details in status are HDCP encryption, Video Bitrate and Audio Bitrate.
