OmniHub
6/6D–
User
Manual
Page
52
of
182

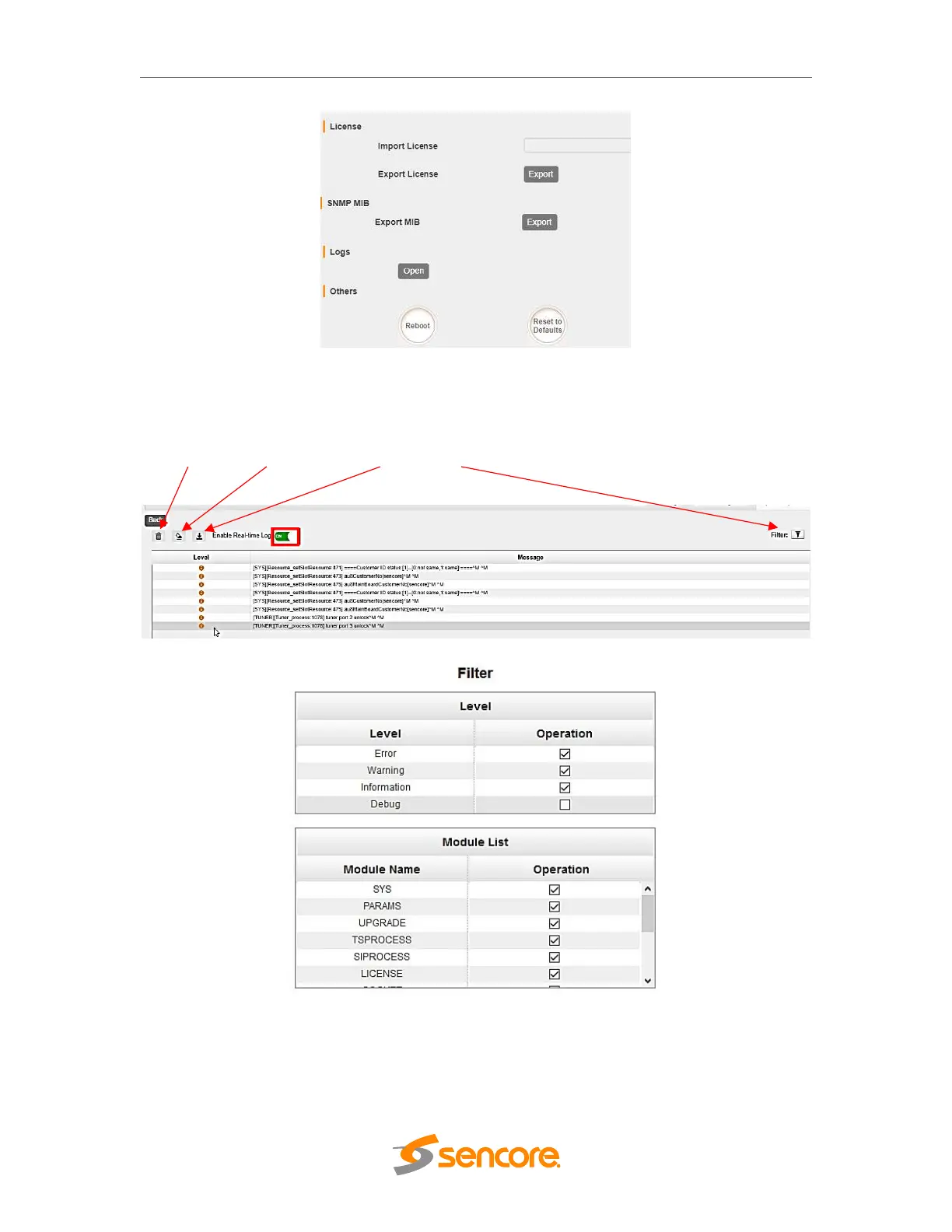

To
open
the
log
management
menu,
click
on
the
Open
button.
The
newly
opened
menu
allows
you
to
enable
/
disable
logging.
After
login
is
enabled,
additional
control
buttons
will
be
displayed:
-
clean
log,
clean
screen,
export
logs,
filter
dialog
box
3.4.2
OHE6-HDMI-02
OHE6-HDM
I-02
is
a
2-channel
HDMI
encoder
which
supports
H.264
HD/SD
or
MPEG-2
HD/SD
encoding
with
2-channel
RCA
for
CC
input.
The
module
supports
MPEG1-L2,
AAC
and
AC3
audio
encoding.
51
53
