OmniHub 6/6D– User Manual
Page 53 of 182

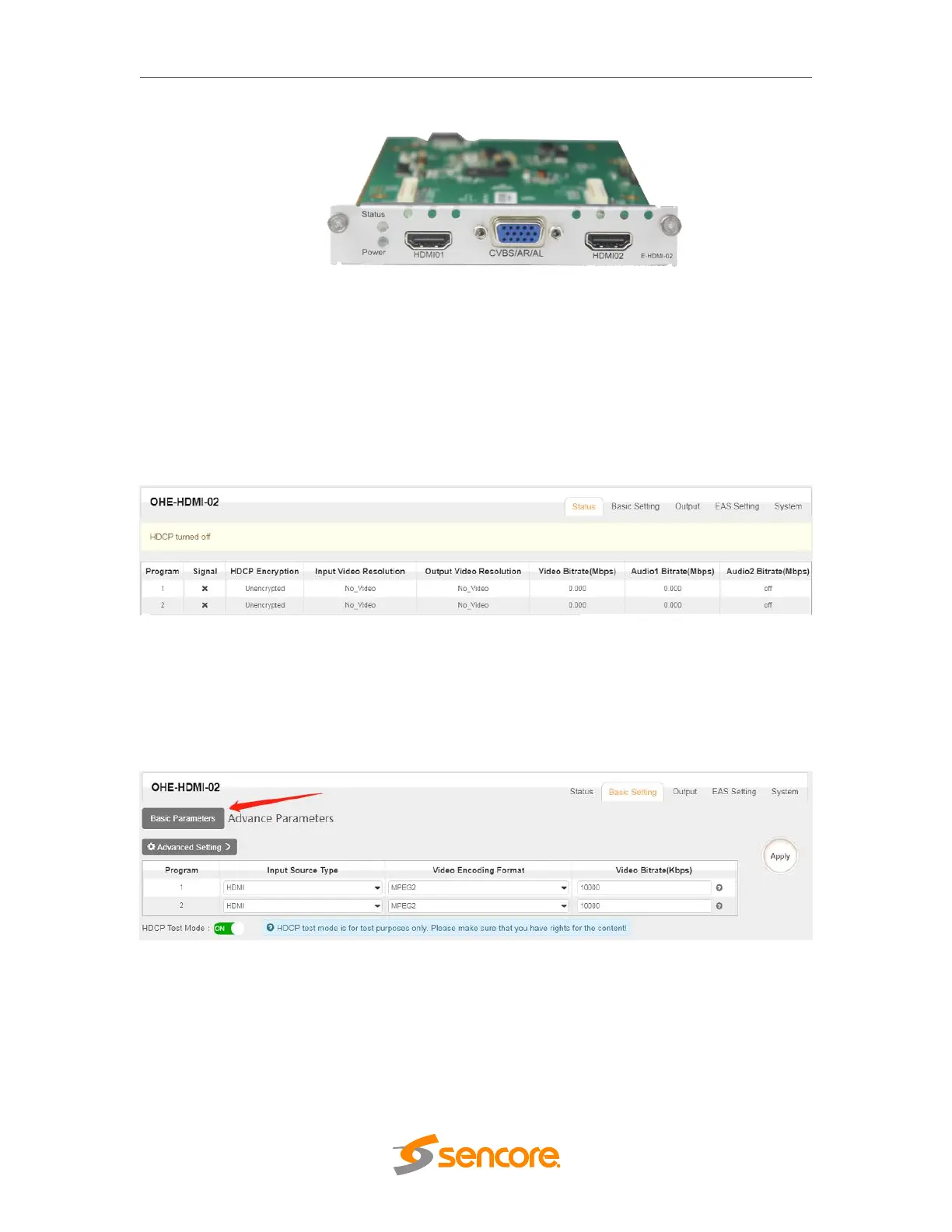

3.3.5.1 Module Status
Module Status for the HDMI encoder shows the Bitrate of each port when an HDMI
source is connected. The Status for OHE6-HDMI-02 is the same with OHE6-HDMI-00.
The difereces are the number of channels shown in the status and some other
parameters for example, OHE6-HDMI-00 doesn’t have Audio2 Bitrate and the
input/output video resolution.
3.4.2.2 Module Basic Settings
Click Advanced Setting to see all parameters you can modify and check specific
parameters you want to set and see. Click the Apply button on the right side to make the
change take effect.
