OmniHub 6/6D– User Manual
Page 74 of 182

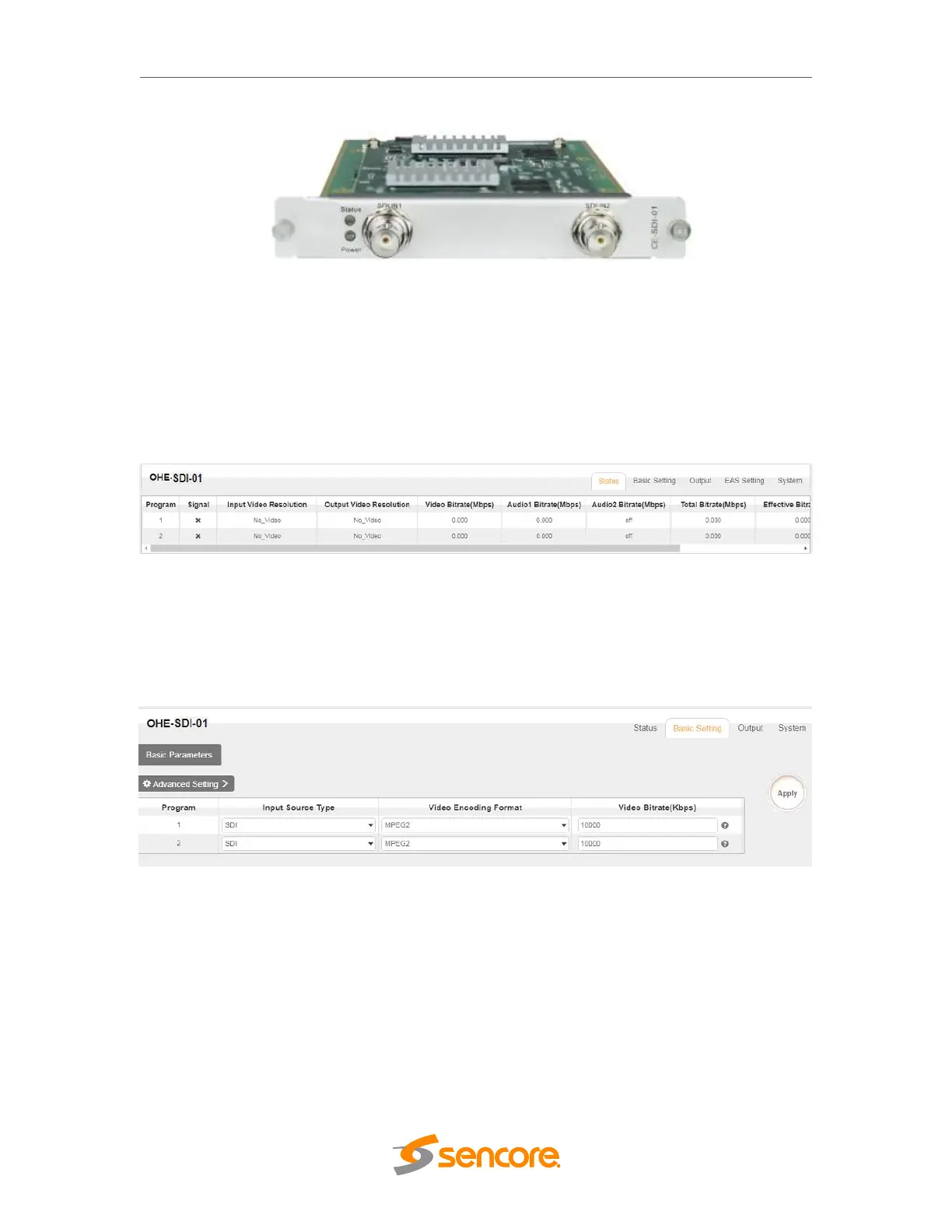

OHE-SDI-01
3.4.5.1 Module Status
Status page for OHE-SDI-01 shows the following parameters: Signal Status, Input Video
Resolution, Output Video Resolution, Video Bitrate, Audio Bitrate, Audio2 Bitrate, Total
Bitrate, Effective Bitrate, TS anaylsis and Program Name. The following parameters will
display values once a good SDI source is connected.
3.4.5.2 Module Basic Settings
The Setting for SDI/CVBS has Basic and Advanced Parameters. Basic Parameters are
the same with the other Encoder Parameters where we can modify the Video, Audio and
Service Parameters as shown in the picture below.
Advanced parameters will display the list of parameters that you can enable and modify.
