OmniHub 6/6D– User Manual
Page 44 of 182

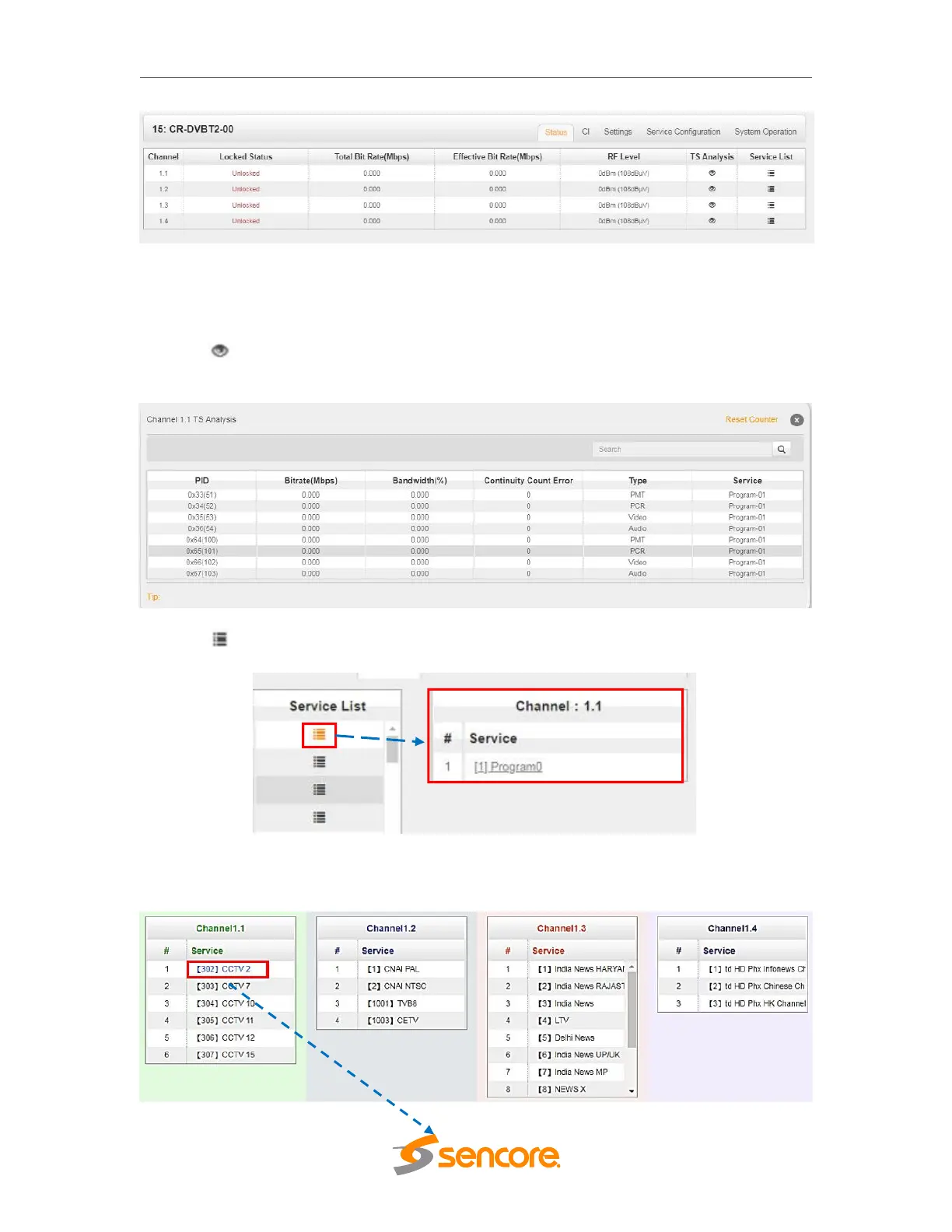

Total Bit rate in Mbps shows the receiving bitrate of each channel with the LOCKED
status. Effective Bit Rate in Mbps which shows the actual bitrate of each receiving
channel. RF Level of the input signal will show you the level of each locked channel.
Clicking under the TS Analysis will display the information on the structure of the
transport stream as shown in the picture below.
Clicking under Service List will display information of the services included in the
transport stream as shown in the picture below.
Clicking on the service name under the service will display the detailed information of
the service: PCR, PMT, Video and Audio PID and Bitrate as shown in the picture below.
