OmniHub 6/6D– User Manual
Page 173 of 182

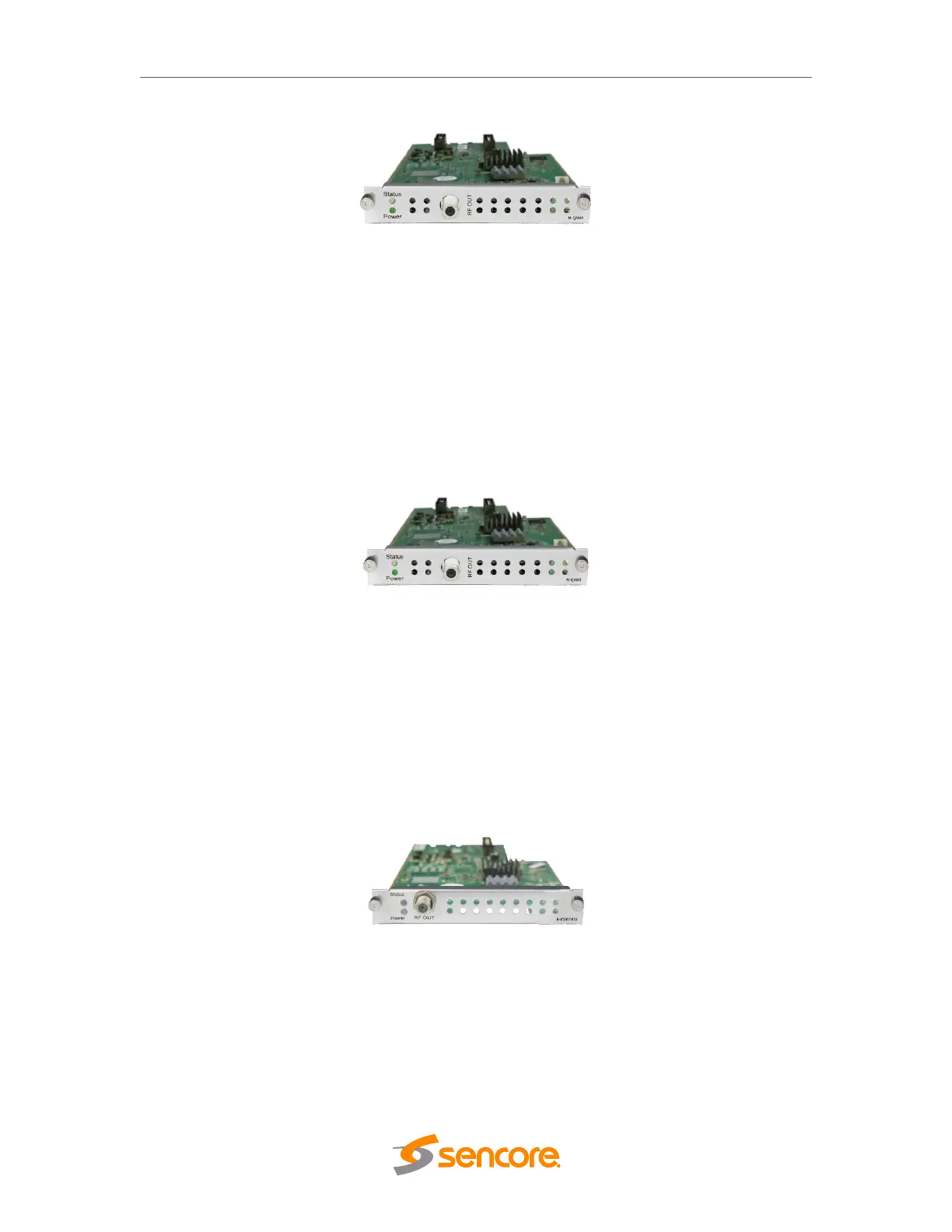

QAMA Modulation
Output 4/8 frequencies via 1 RF female
connector 75Ω
Standard ITU-T J.83 Annex A/C
Frequency Range 47 ~ 862MHz
Bandwidth 6/7/8MHz
Constellation 16QAM / 32QAM / 64QAM / 128QAM /
256QAM
Symbol Rate 3.6~6.9Ms/s
Output Level Max. 105dBµV
MER ≥32dB
QAMB Modulation
Output 4/8 frequencies via 1 RF female
connector 75Ω
Standard ITU-T J.83 Annex B
Frequency Range 47 ~ 862MHz
Bandwidth 6/7/8MHz
Constellation 64QAM / 256QAM
Symbol Rate 3.6~6.9Ms/s
Output Level Max. 105dBµV
MER ≥32dB
ISDB-T Modulation
Output 4/8 frequencies via 1 RF female
connector, 75Ω
Standard ARIB STD-B31
Frequency Range 57 - 860MHz
Bandwidth 6MHz
Constellation QPSK, 16QAM / 64QAM
Transmission Mode 2K
RS Code RS (204.188)
