OmniHub 6/6D– User Manual
Page 49 of 182

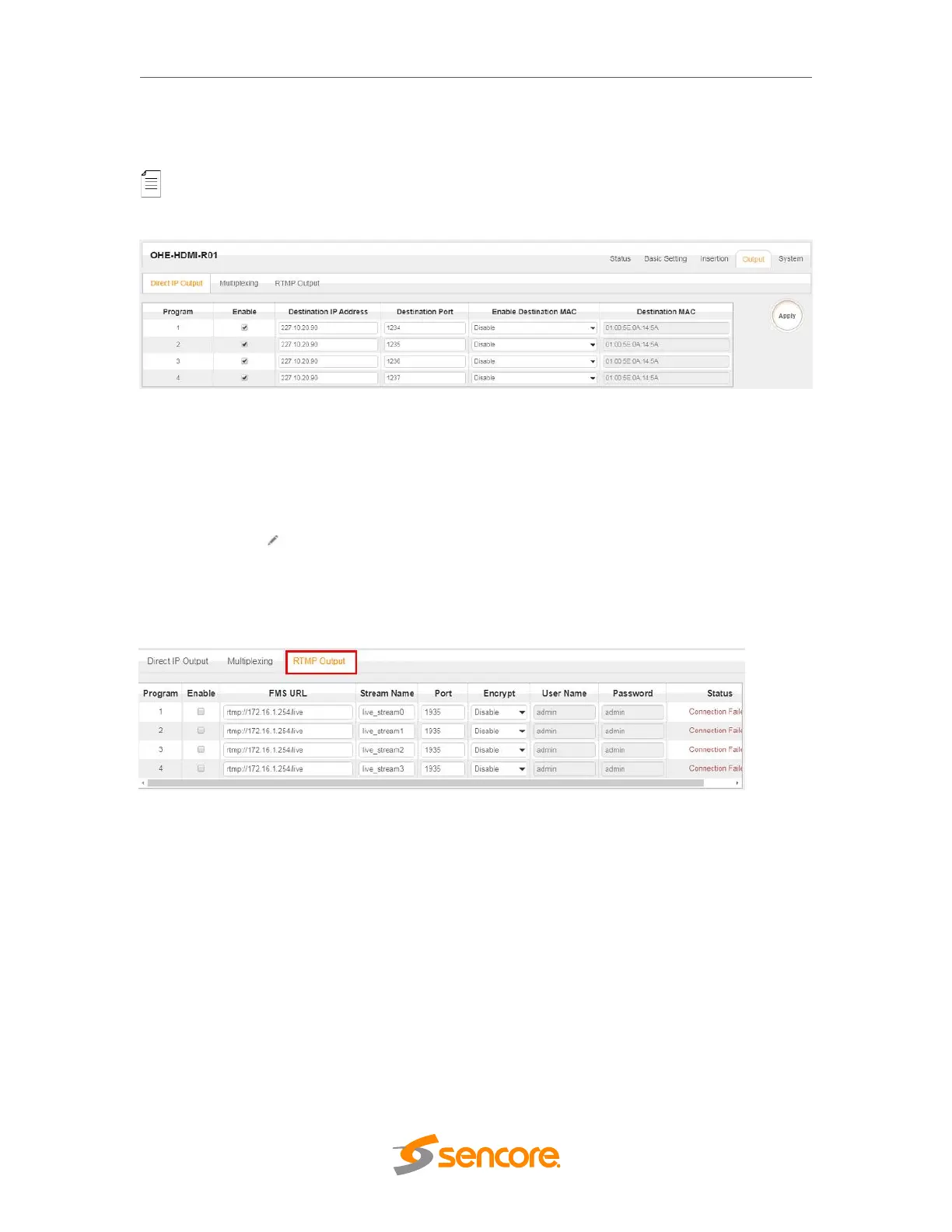

OHE6-HDMI-R01 has RTMP output settings. Direct IP output is specifically for encoding
a single program and outputting it directly to IP. This setting will not occupy multicast
bandwidth baseboard.
If you want to use IP output channel on the encoder module and the baseboard IP
module at same time, you should avoid the multicast IP addresses conflicts. If there are
two same IP addresses enabled meantime, all the multicast videos will be affected.
Destination IP Address and Destination Port: for multicast IP addresses or
unicast IP addresses and ports.
Enable Destination MAC: Generally, you do not need to enable this option. This
is reserved for exceptional cases when the unicast stream cannot be received
with the unicast IP addresses. You can enable destination MAC and streaming
out by setting Destination MAC.
To use Multiplexing mode on service level
1. Click on (pencil) icon. There will always be a BaseBoard selection for the IP
output and other Output option depending on the modules inserted.
2. Select the correct Output and Channel you want to output the Service.
3. Check Multiplex for the Channel you want to output,. You can output multiple
services in same channel or output same service in multiple channels.
To use RTMP output to configure streaming to any website capable of receiving RTMP,
it is necessary to create a new stream instance on the intended receiving platform and
enter the corresponding URL and port.
3.4.1.4 Insertion
You should choose a channel first before you set Insertion.
