OmniHub 6/6D– User Manual
Page 91 of 182
OHM-QAMA-02 and OHM-QAMA-02A have the same HW but different license.

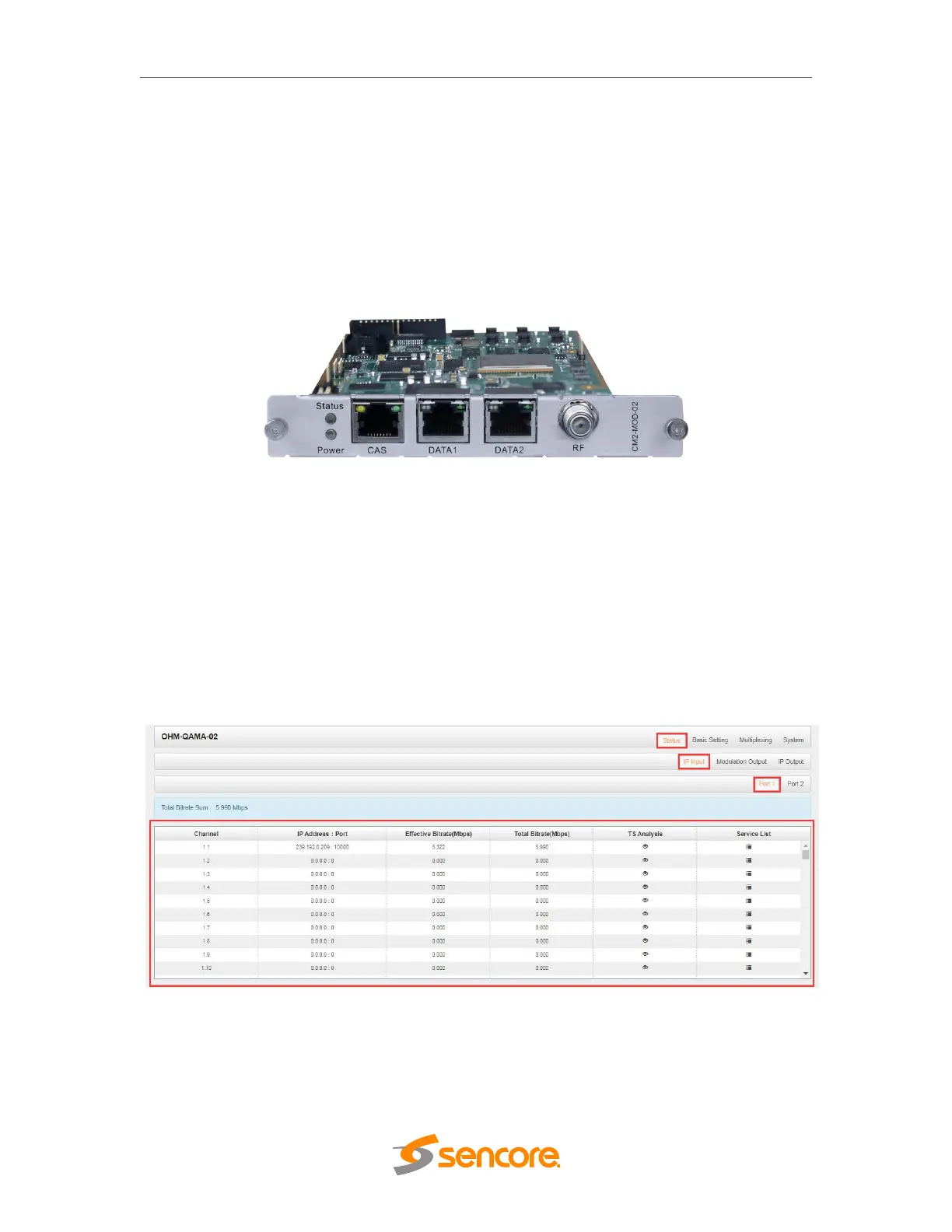

OHM-QAMB-02 is a 16-channel QAM-B modulation module, 2 gigabit IP input electrical
ports, each input port supports 512 channels; 1 CAS interface (RJ45), support
scrambling function; 1 RF output interface, support 16-channel QAM-B non-advanced
frequency Modulation output, independent constellation mode configuration.
OHM-QAMB-02A is a 32-channel QAM-B modulation module, support 32-channel QAM-
B non-advanced frequency Modulation output, other function descriptions are the same
as OHM-QAMB-02.
OHM-QAMB-02 and OHM-QAMB-02A have the same HW but different license.
3.5.8.1 OHM-QAMA-02
3.5.8.1.1 Module Status
The Status page contains status information of IP Input, Modulation Output and IP
Output.
IP Input > OHM-QAMA-02 has 1024 IP input channels. Those channels are divided into
two RJ45 ports, each of which has 512 IP input channels. Clicking Port 1, you can
obtain status information of the 512 channels, such as input source IP address and port
number, total bitrate (Mbps) and effective bitrate (Mbps). The TS analysis and Service
List button of each channel allow you to check their individual detailed information. See
the image below for reference.
