The SL Handheld DW

117

►

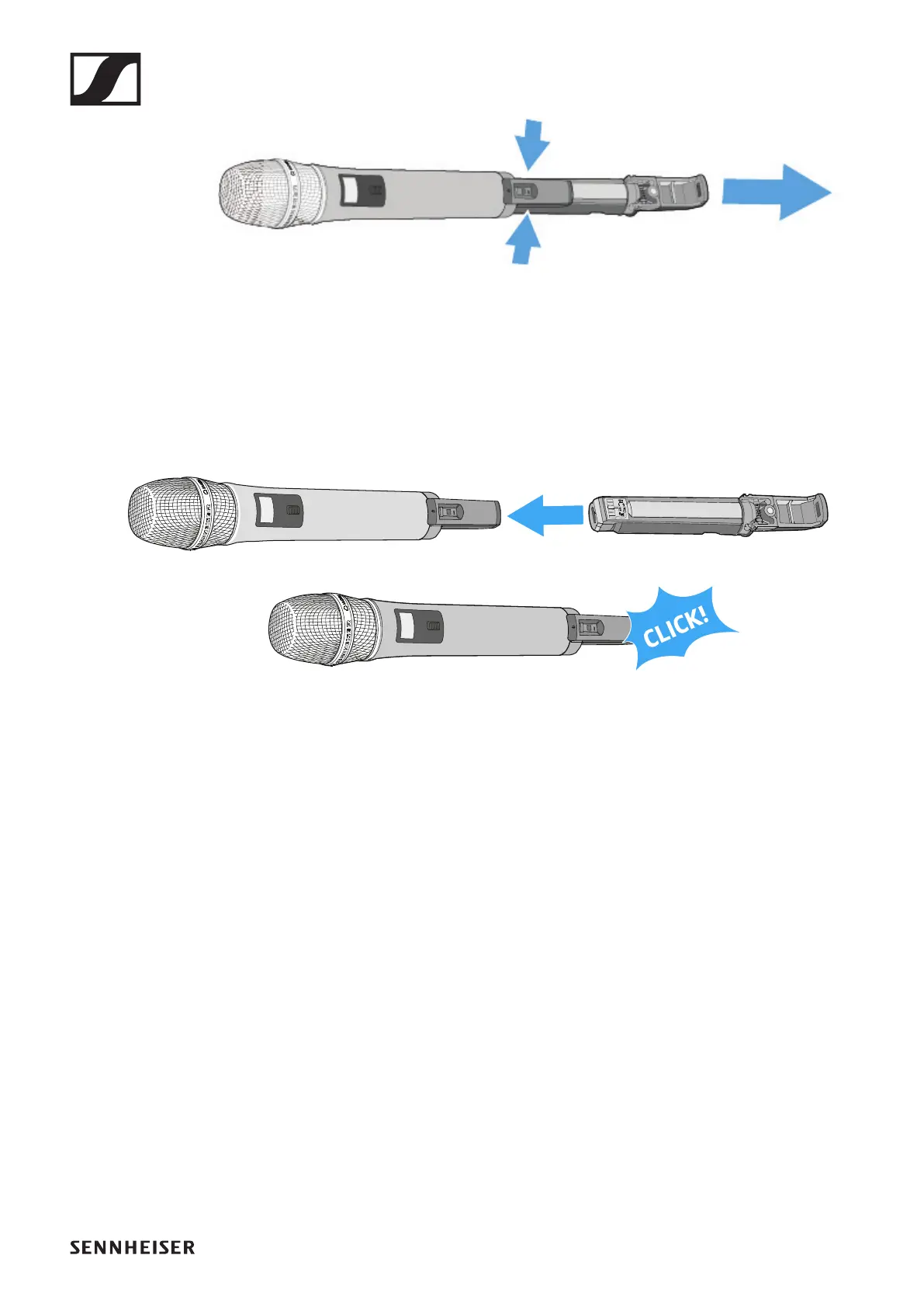

To insert the accupack:

▷ Slide the accupack onto the handheld transmitter as

shown.

The accupack or the battery compartment locks into place

with an audible click.

►
