The CHG 4N charger

184

Connecting the CHG 4N charger to the power

supply system

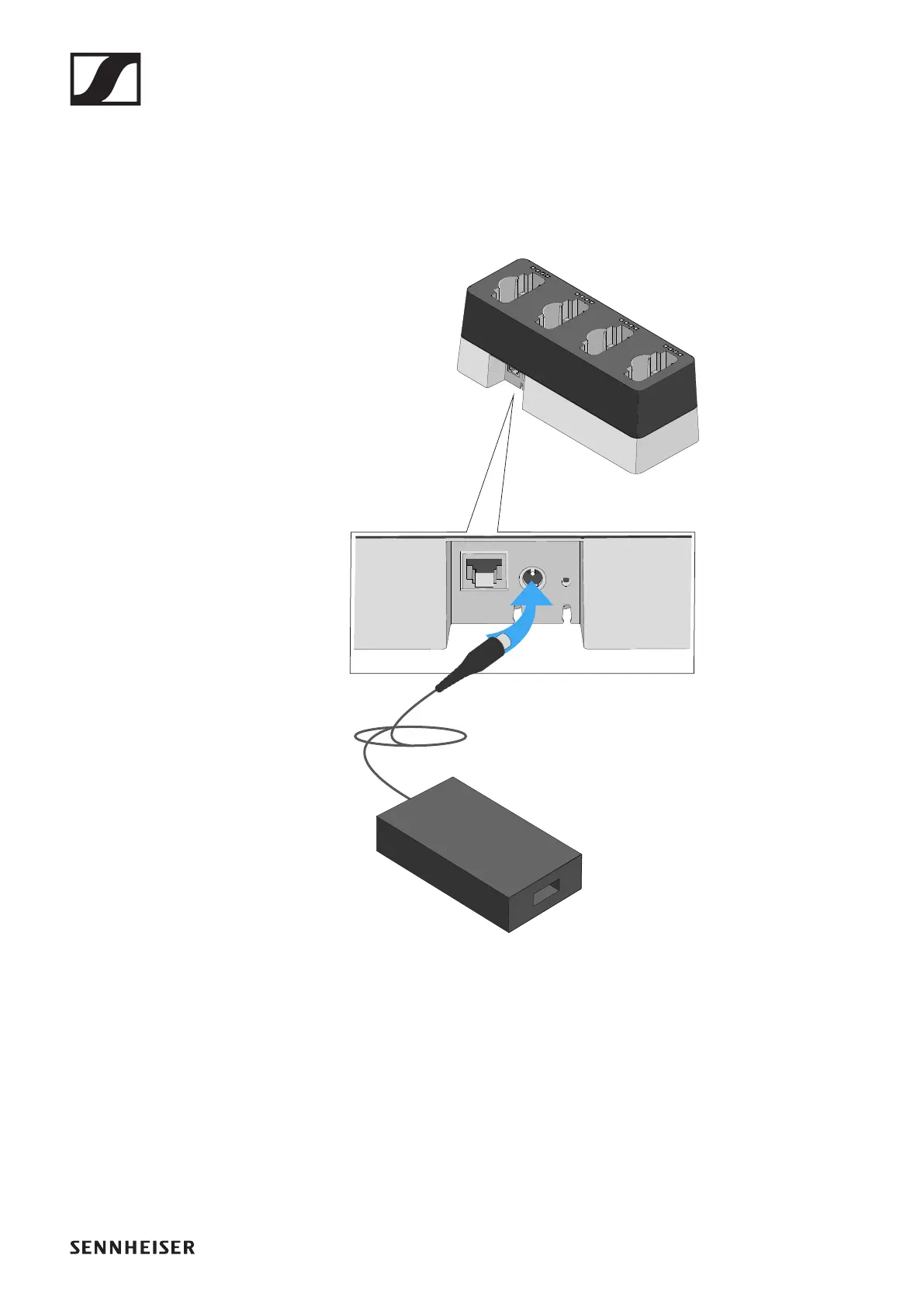

To connect the CHG 4N charger to the power supply system:

▷ Connect the cable end of the power supply unit to the sock-

et at the base of the charger.

►

▷ Guide the cable through the cable guide at the base of the

charger so that the charger is stable once in position.
