The AWM 4 antenna wall mount

206

Connecting and mounting the AWM 4

Attaching the antennas

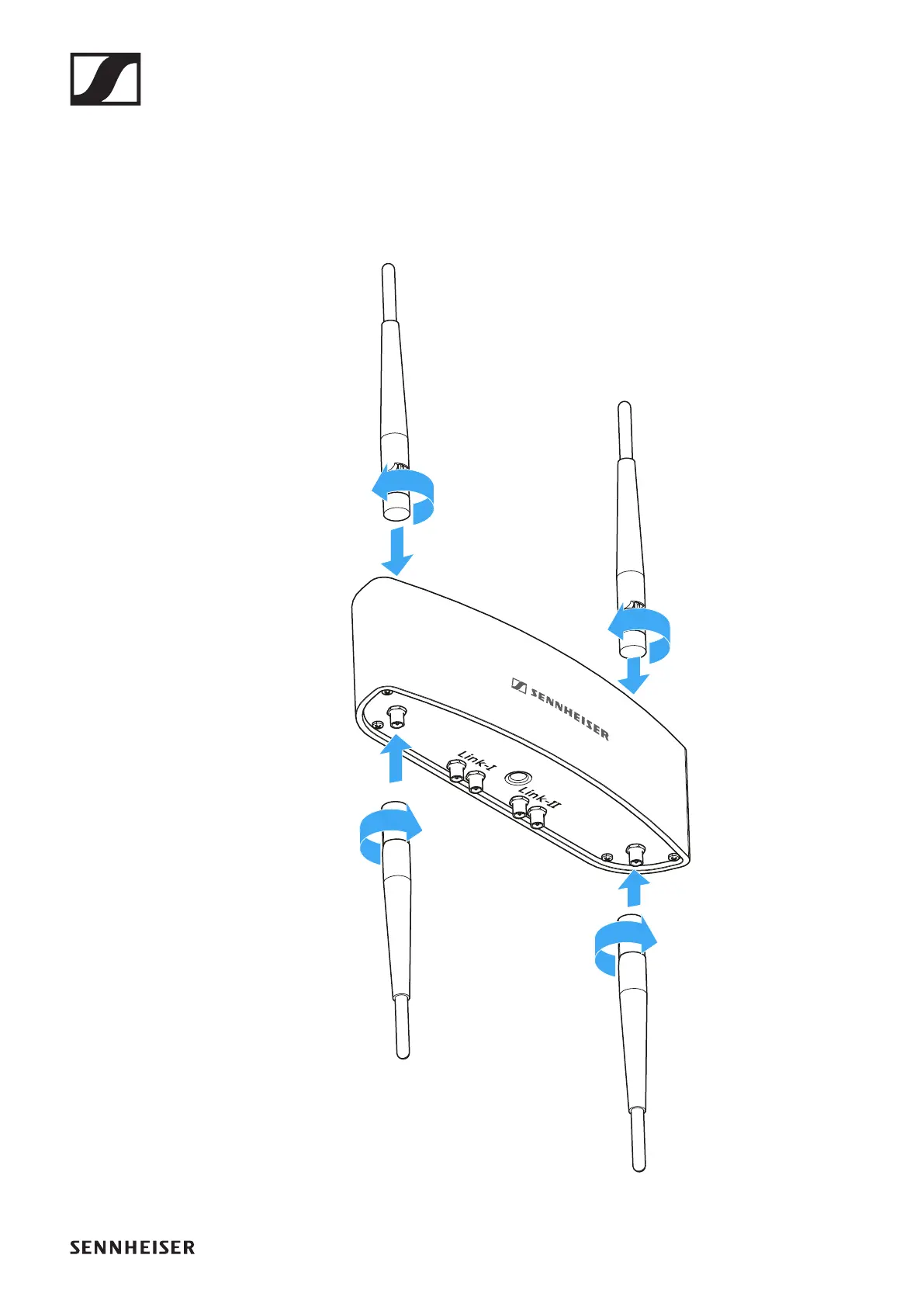

▷ Screw the four supplied rod antennas onto the housing as

shown.

►
