The AWM 2 antenna wall mount
200
Connecting and mounting the AWM 2

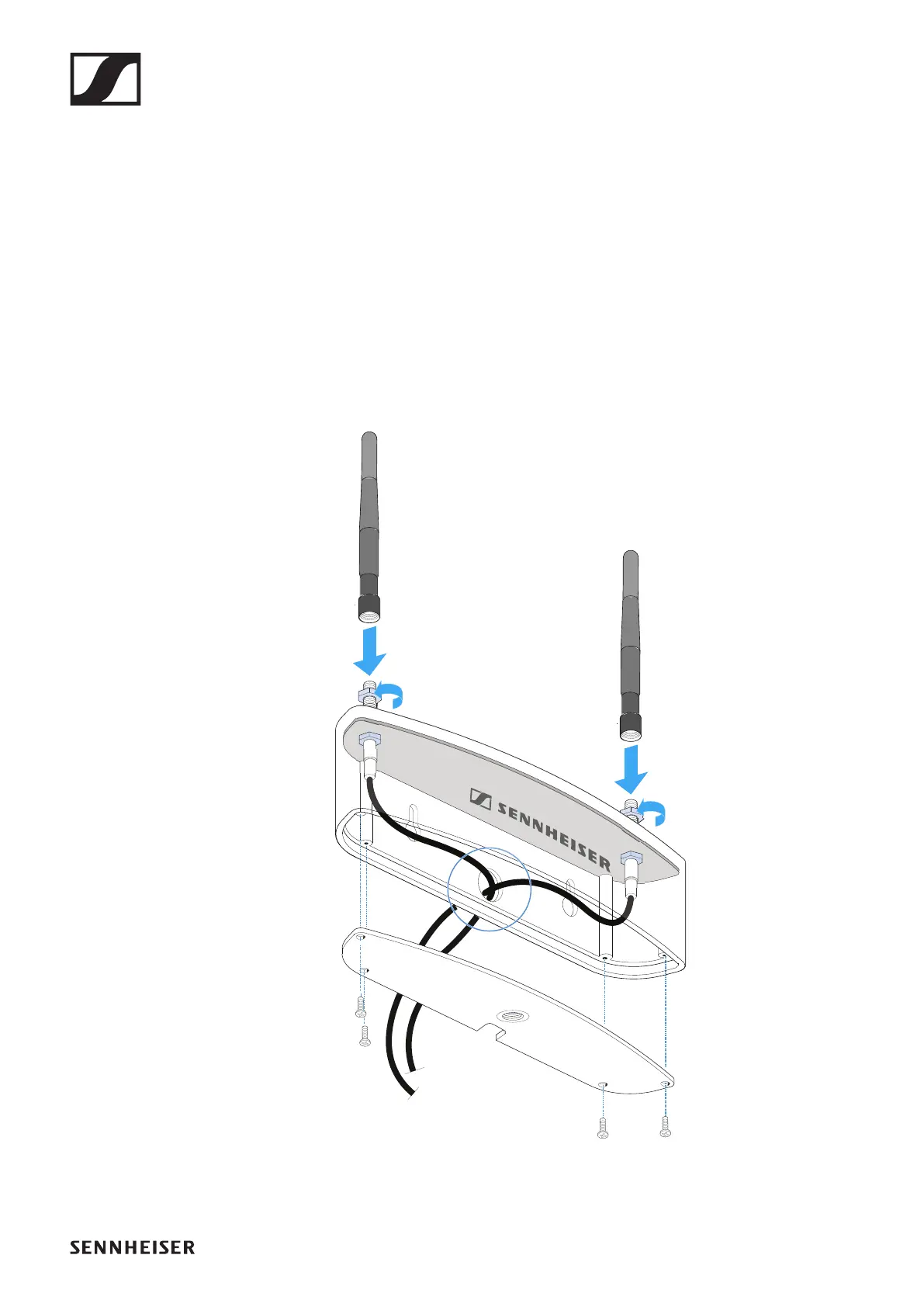

Instead of the rod antennae, you can connect the optional
AWM 2 antenna wall mount to the receiver. The AWM 2 is suit-
able for all applications where the antennae are to be posi-
tioned further away from the receiver.
▷ Unscrew and remove the four screws from the base of the
antenna wall mount and remove the cover.
To mount the antenna wall mount to a wall
▷ Pass the antenna cable ends fitted with the R-SMA sockets
from behind through the cable hole located at the rear of
the antenna housing.
►
▷ Do not kink the antenna cables and, when running the ca-
bles, make sure not to bend them beyond a bend radius of
43 mm.
