The SL Headmic 1 headset microphone

175

Connecting the SL Headmic 1 to the SL

Bodypack DW

►

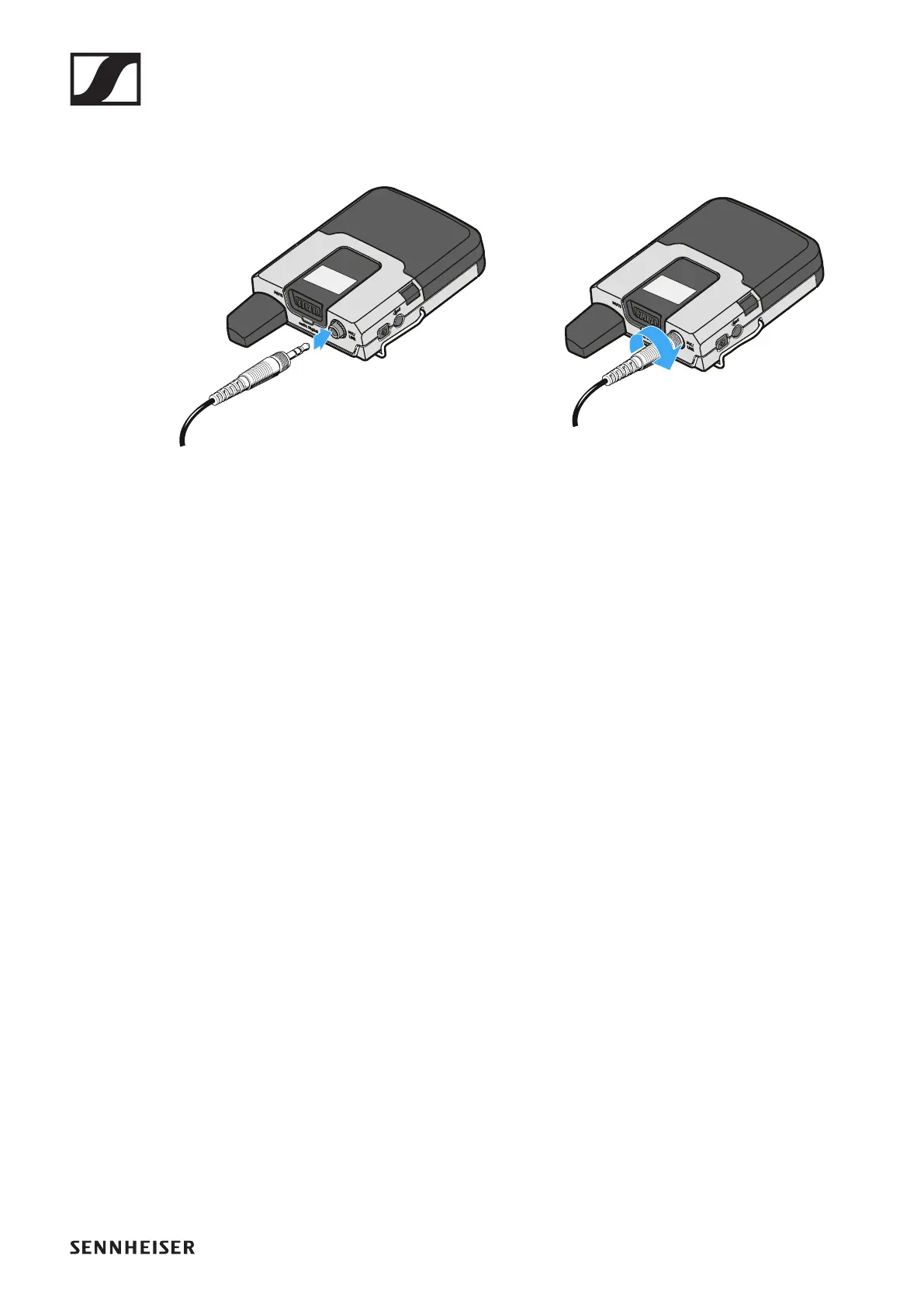

▷ Connect the jack plug of the SL Headmic 1 to the 3.5 mm

jack socket (MIC/LINE) of the bodypack transmitter.

▷ Lock the jack plug by screwing down the coupling ring.

When the jack plug is not firmly locked, crackling noise can

appear in the audio signal.
