The SL PASC 4 passive antenna splitter/combiner
210
The SL PASC 4 passive antenna splitter/
combiner
The SL PASC 4 is a passive four-way true diversity antenna
splitter/combiner for the SpeechLine Digital Wireless micro-
phone series. It is used to distribute the antenna signals from
up to 4 SpeechLine Digital Wireless radio links. In combination
with the AWM 2 or AWM 4 remote antennas, the number of re-
quired antenna cables is reduced to a minimum. The rack re-
ceivers are connected to the SL PASC 4 using the supplied
SMA-R cables.
Return to first page of the instruction manual
Connectors on the rear of the device

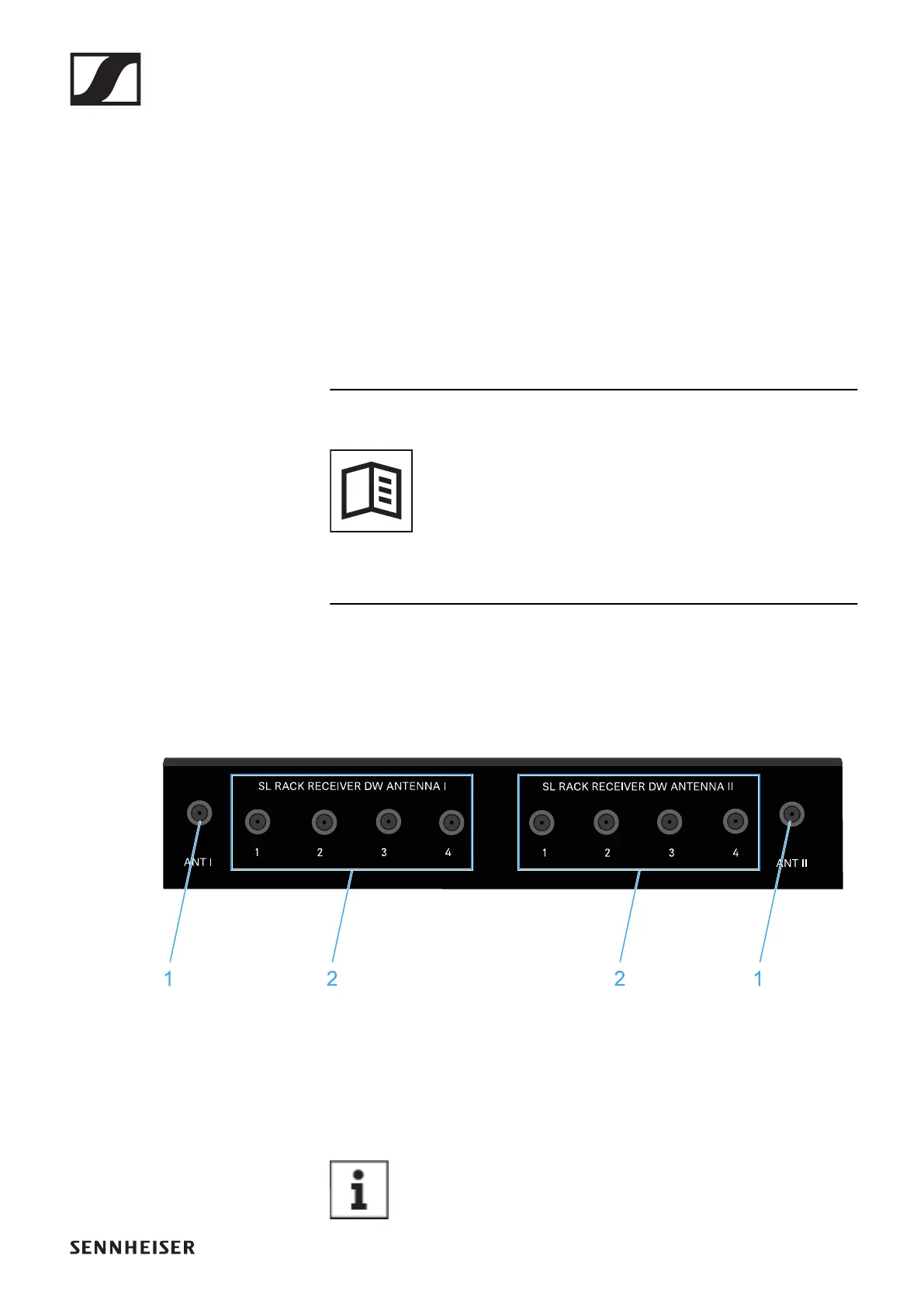

Product overview – SL PASC 4 rear panel
►
1 R-SMA output sockets ANT I and ANT II
• for connecting the antennas (AWM 2 or AWM 4)
2 R-SMA input sockets SL RACK RECEIVER DW ANTENNA I
and SL RACK RECEIVER DW ANTENNA II
• for connecting the receivers
You can find more information on wiring in the chap-
ter „Option 2: Combining multiple links to one AWM
2/AWM 4“.
