The Products of the SpeechLine Digital Wireless Series

The CHG 2 charger

►

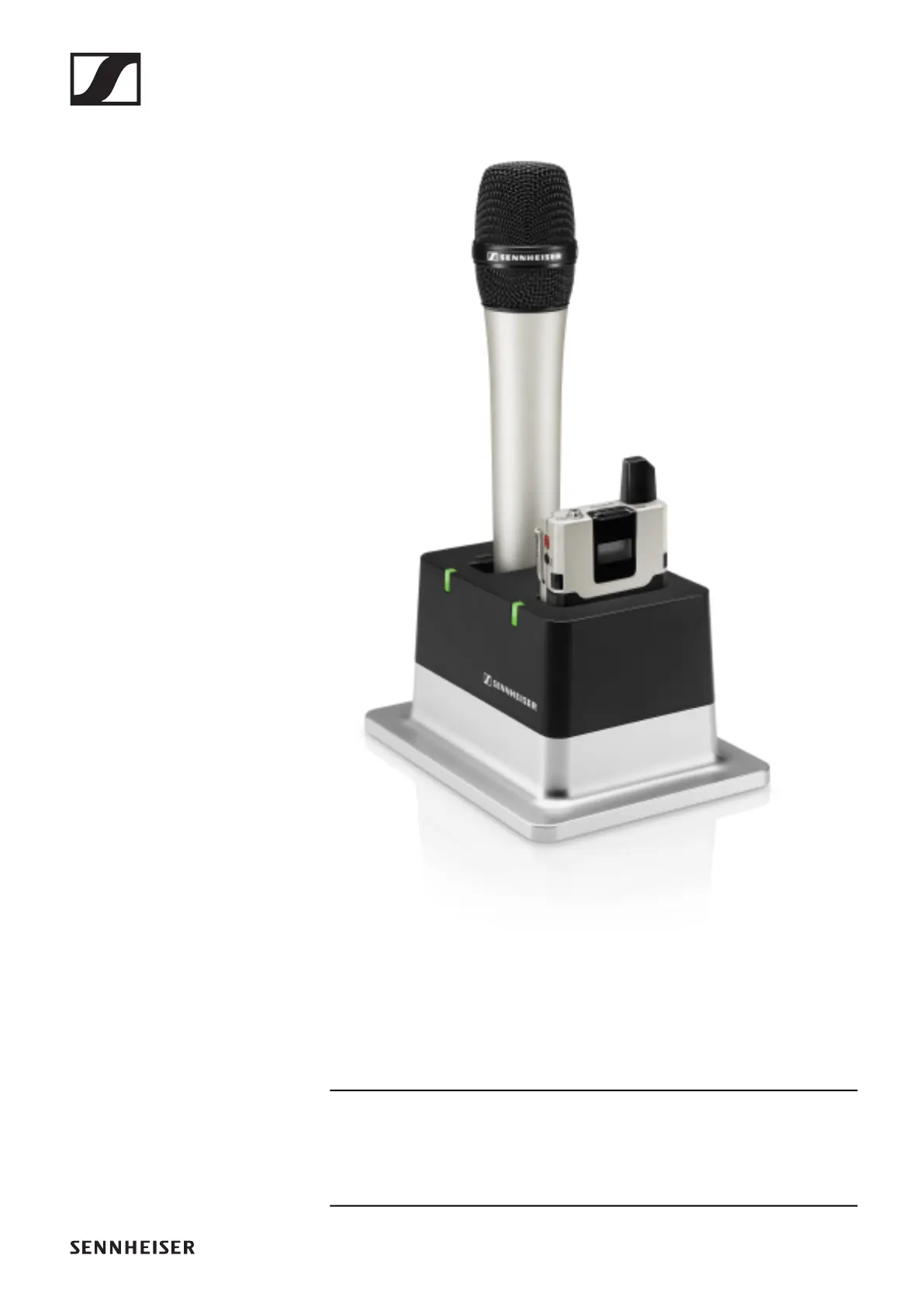

The CHG 2 charger allows you to simultaneously charge up to

two transmitters of the SpeechLine Digital Wireless series. A

bi-color LED at each charging slot provides information on the

current charge status. The charger has universal charging

slots for charging both handheld and bodypack transmitters.

For information about installation and operation, see the in-

struction manual: „The CHG 2 charger“
