Recommendations on antenna mounting
43
Option 2: Combining multiple links to one
AWM 2/AWM 4
With this variant, you can use passive antenna splitters
(SL PASC 2 or SL PASC 4) together with the AWM 2 or AWM 4
to combine the antenna signals from multiple receivers. This
reduces the number of antenna cables required to a minimum.
Combining up to 2 links using the AWM 2 and the
SL PASC 2

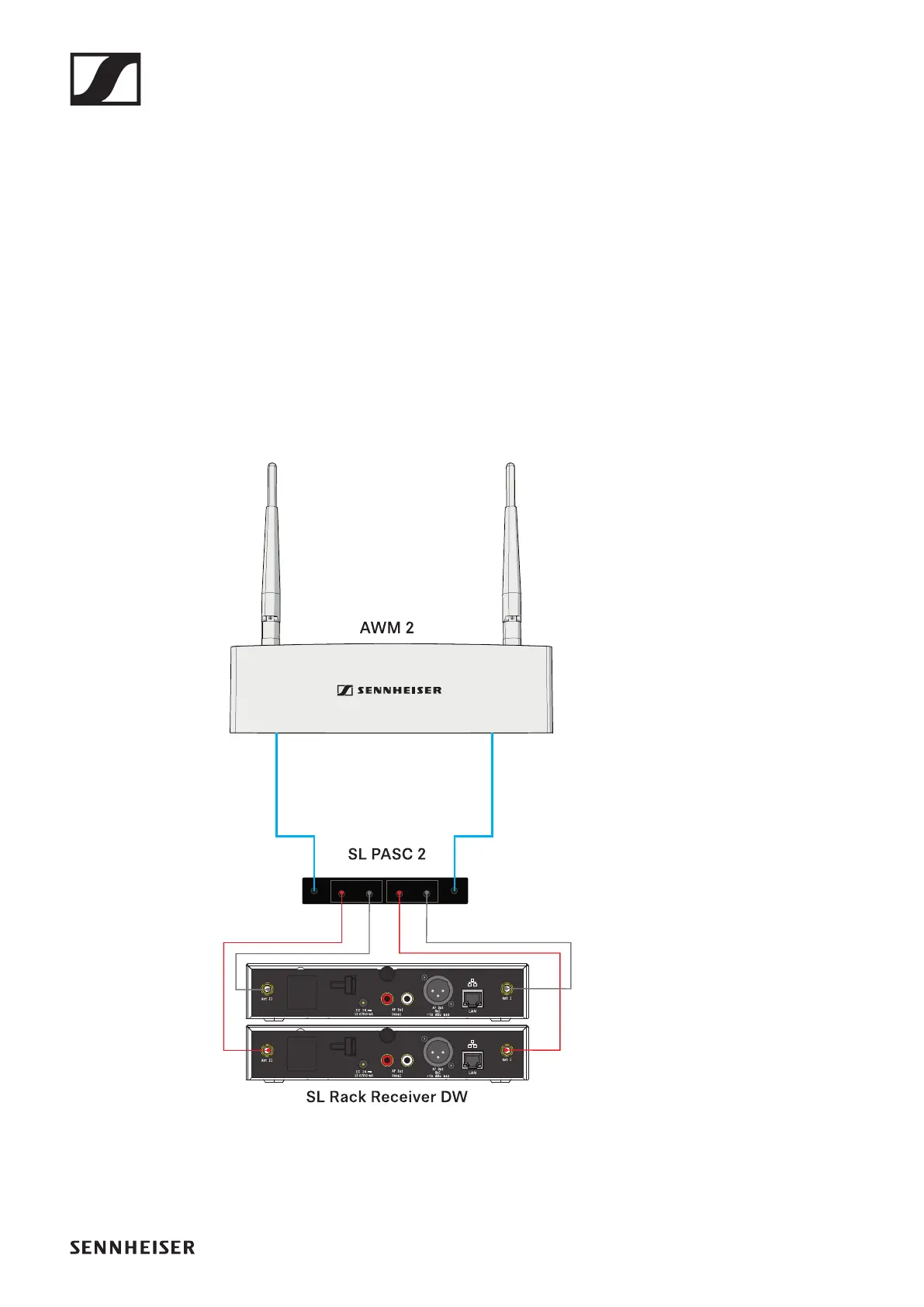

The following illustration shows an example of how to com-
bine up to 2 links with one AWM 2 antenna wall mount. This re-
duces the number of antenna cables required from 4 to 2.
►
▷ Please observe the information below on the length of the
extension cables („Signal loss due to extension cables and
antenna splitters“).
SL RACK RECEIVER DW ANTENNA II
1234
12 4
SL RACK RECEIVER DW ANTENNA II
SL RACK RECEIVER DW ANTENNA I
ANT II
ANT I
12
2
1
Cables for connecting the SL PASC 2 to the
SL Rack Receiver DW are supplied with the
SL PASC 2.
Use the following Sennheiser cables
for connecting the AWM 2 to the SL
PASC 2:
CL 5 (5 m / 16.4 ft)
art. no. 505976
CL 10 (10 m / 32.8 ft)
art. no. 506263
