Recommendations on antenna mounting
44
Combining up to 4 links using the AWM 2 and the
SL PASC 4

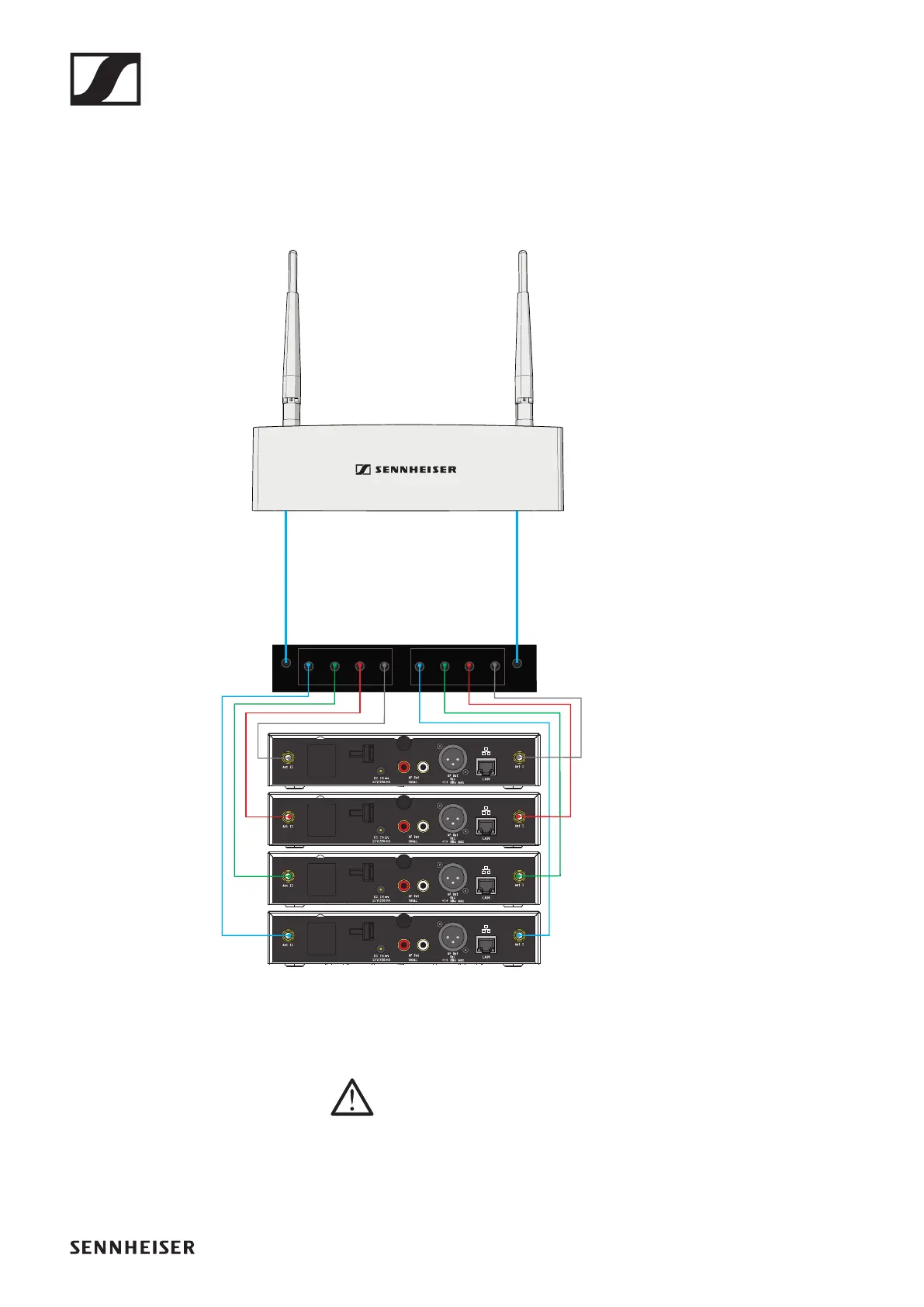

The following illustration shows an example of how to com-
bine up to 4 links with one AWM 2 antenna wall mount. This re-
duces the number of antenna cables required from 8 to 2.
►
▷ Please observe the information below on the length of the
extension cables („Signal loss due to extension cables and
antenna splitters“).
Always combine all antenna sockets ANT I of all receiv-
ers and all antenna sockets ANT II of all receivers re-
spectively to one of the two antennas of the AWM 2. If
you are using only 3 of the 4 connections on the antenna split-
ter, you should close the unused connection with a terminat-
ing resistor (50 Ω) to minimize interfering signals and
maximize transmission power.
SL RACK RECEIVER DW ANTENNA I
SL RACK RECEIVER DW ANTENNA II
ANT I
ANT II
1234
1234
SL Rack Receiver DW
SL PASC 4
AWM 2
Cables for connecting the SL PASC 4 to
the SL Rack Receiver DW are supplied
with the SL PASC 4.
Use the following Sennheiser cables
for connecting the AWM 2 to the SL
PASC 4:
CL 5 (5 m / 16.4 ft)
art. no. 505976
CL 10 (10 m / 32.8 ft)
art. no. 506263
