Recommendations on antenna mounting
40

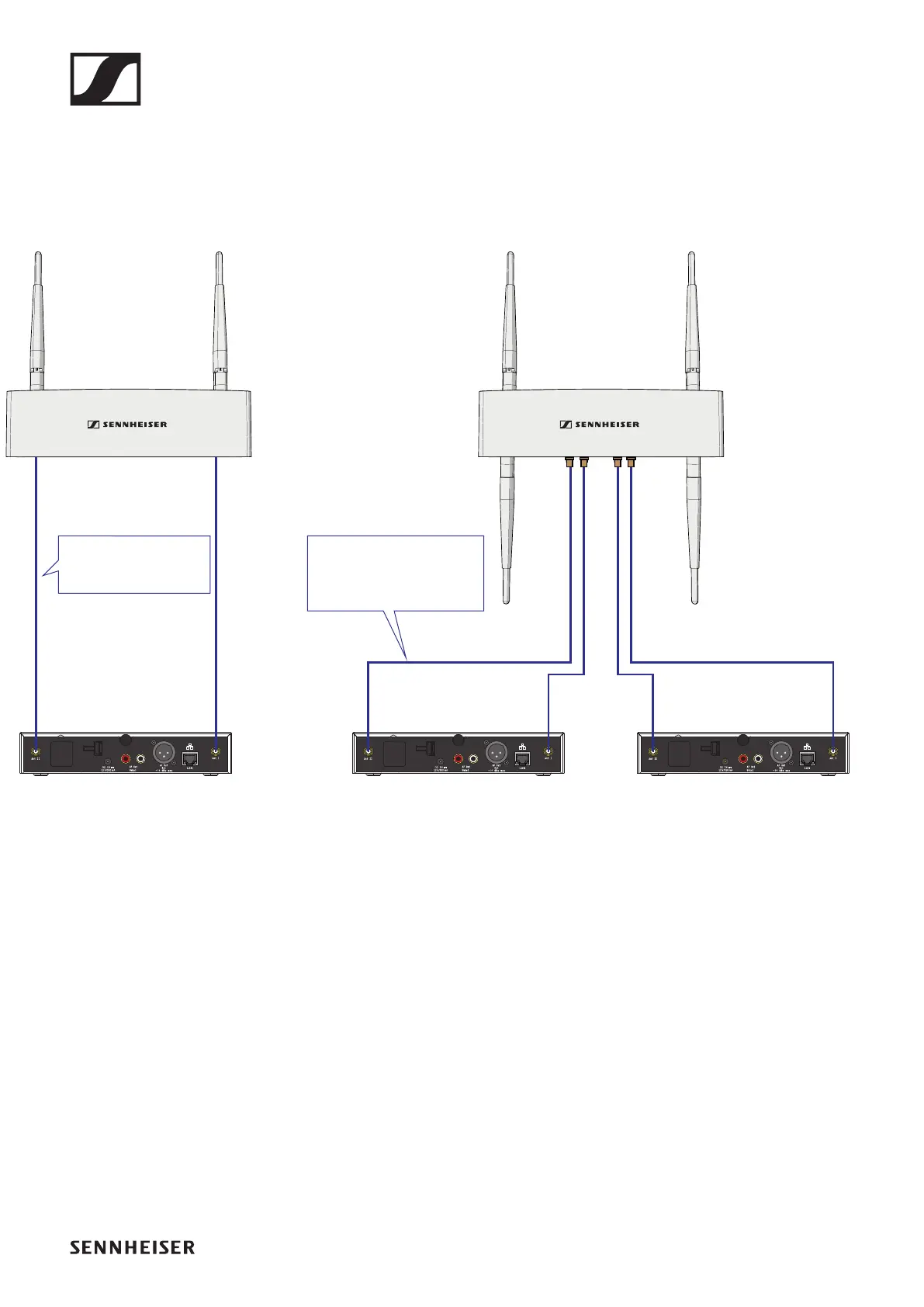

Option 1: Connecting the AWM 2 or AWM 4
antenna wall mount directly to the receiver(s)
You can connect one receiver directly to one AWM 2 antenna
wall mount or you can connect two receivers directly to one
AWM 4 antenna wall mount.
►
• For the AWM 2, you can use Sennheiser extension cables
CL 5/10/20.
• For the AWM 4, you can use Sennheiser extension cables
CL 1/5/10/20 PP.
Observe the following information when using extension ca-
bles:
Signal loss due to extension cables
In this scenario, using extension cables for remote antenna
mounting results in a loss of transmission power, depending
on the cable length.
You can compensate this signal loss by configuring the trans-
mission power of the receiver accordingly.
▷ Observe the following minimum transmission power set-
SL Rack Receiver DWSL Rack Receiver DW SL Rack Receiver DW
Link I - Ant ILink I - Ant II Link II - Ant ILink II - Ant II
AWM 4AWM 2
CL 1 PP (1 m / 3.3 ft)
CL 5 PP (5 m / 16.4 ft)
CL 10 PP (10 m / 32.8 ft)
CL 20 PP (20 m / 65.6 ft)
CL 5 (5 m / 16.4 ft)
CL 10 (10 m / 32.8 ft)
CL 20 (20 m / 65.6 ft)
