The CHG 2 charger

180

Connecting the CHG 2 charger to the power

supply system

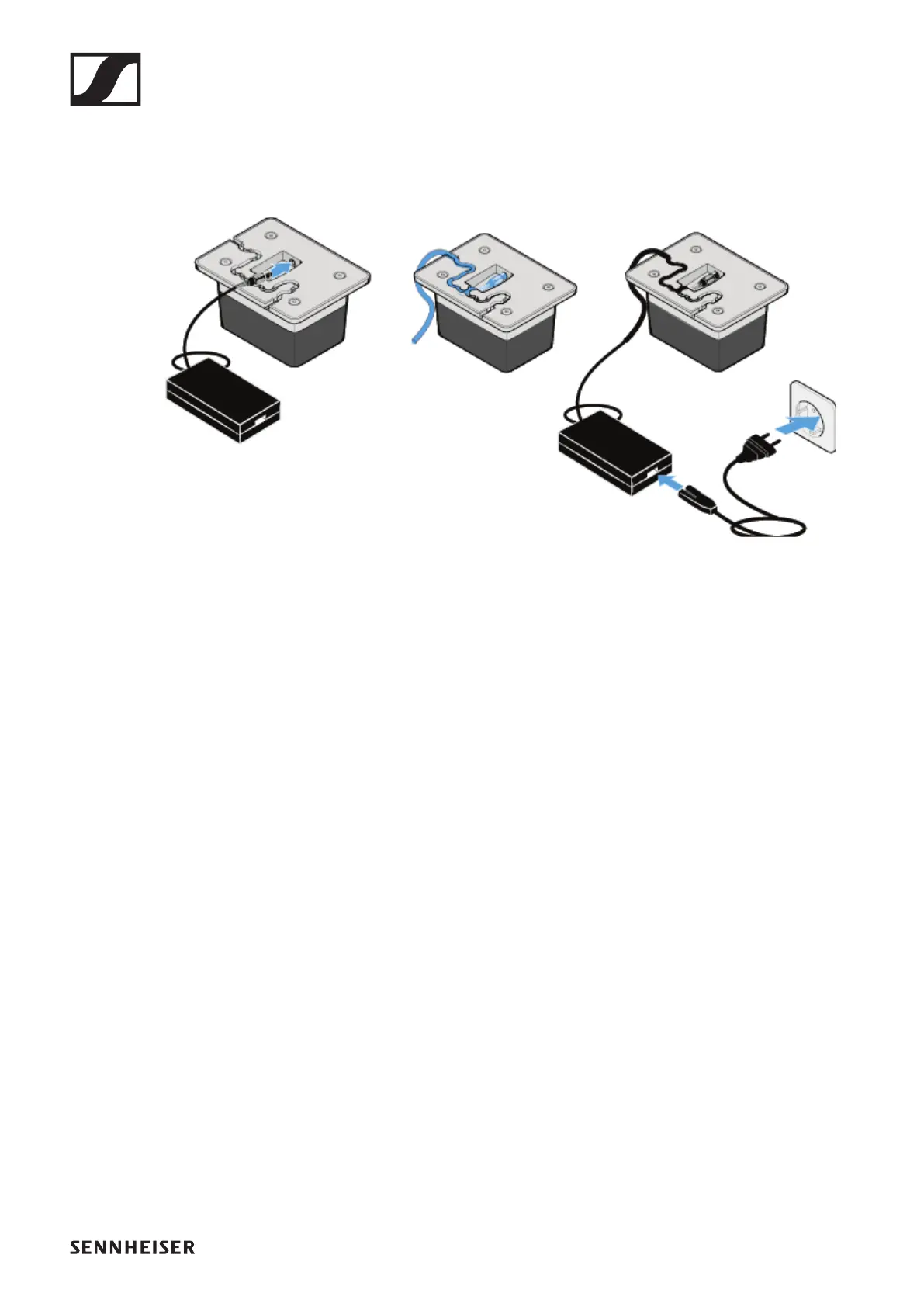

To connect the CHG 2 charger to the power supply system:

►

▷ Connect the cable end of the power supply unit to the sock-

et at the base of the charger.

▷ Guide the cable through one of the cable guides at the base

of the charger so that the charger is stable once in position.

▷ Connect one end of the power cord to the power supply unit

and the other end to the wall socket.
