The AWM 4 antenna wall mount
207

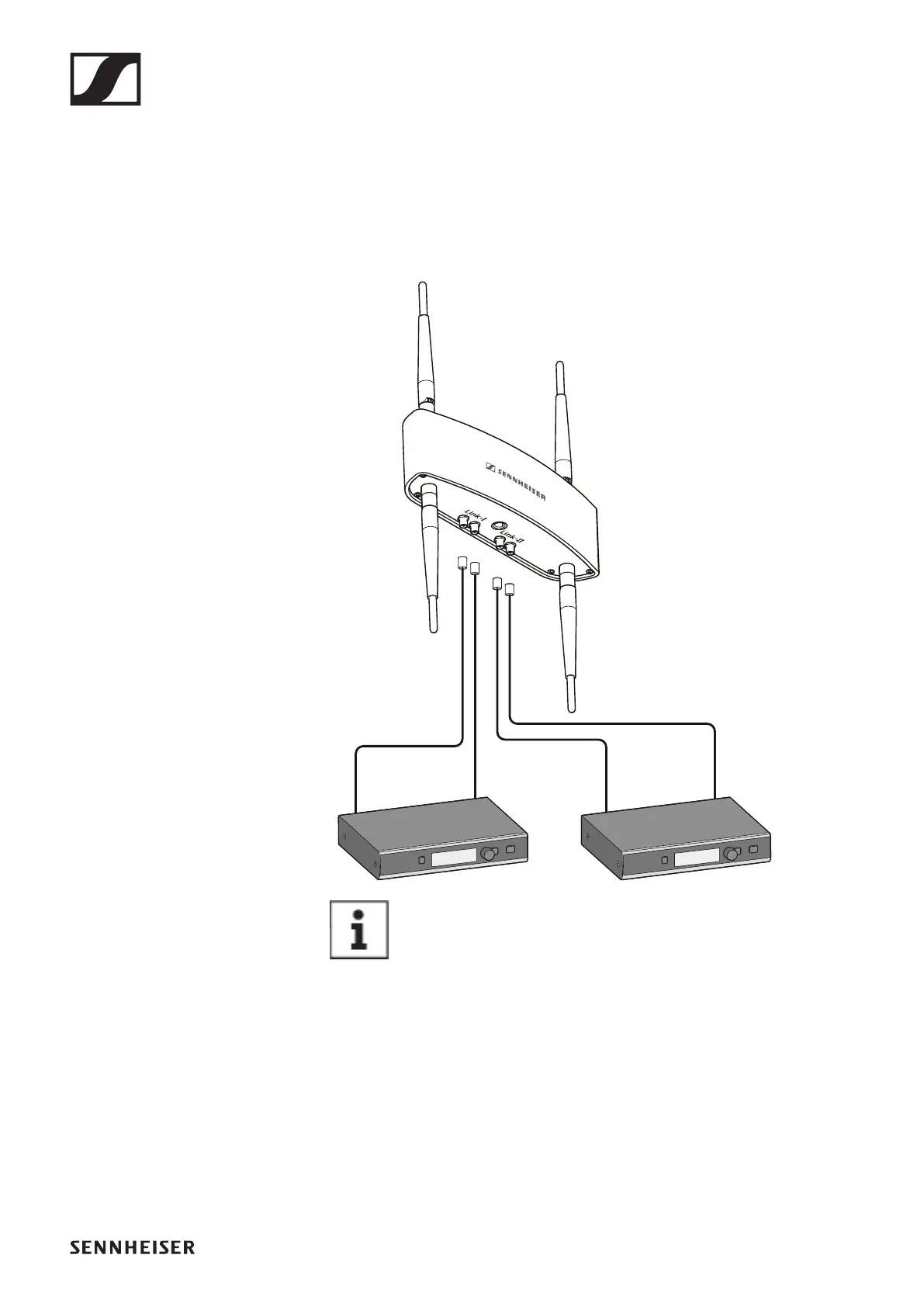

Connecting the antenna cables
You can connect two receiver directly to the AWM 4.
▷ Connect the two antenna outputs ANT I and ANT II of the
first receiver to the connections LINK I of the AWM 4.
▷ Connect the two antenna outputs ANT I and ANT II of the
second receiver to the connections LINK II of the AWM 4.
►
You can find additional information on possible set-
ups using the AWM 4 and general recommendations
on antenna usage under „Recommendations on an-
tenna mounting“.
For direct connection of the receivers to the AWM 4, we rec-
ommend using the following low-loss Sennheiser antenna ca-
bles:
• CL 1 PP
• CL 5 PP
• CL 10 PP
• CL 20 PP
These cables can be directly connected to the SL Rack Receiv-
er DW and the AWM 4 without the need for an adapter.
