The CHG 4N charger

185

►

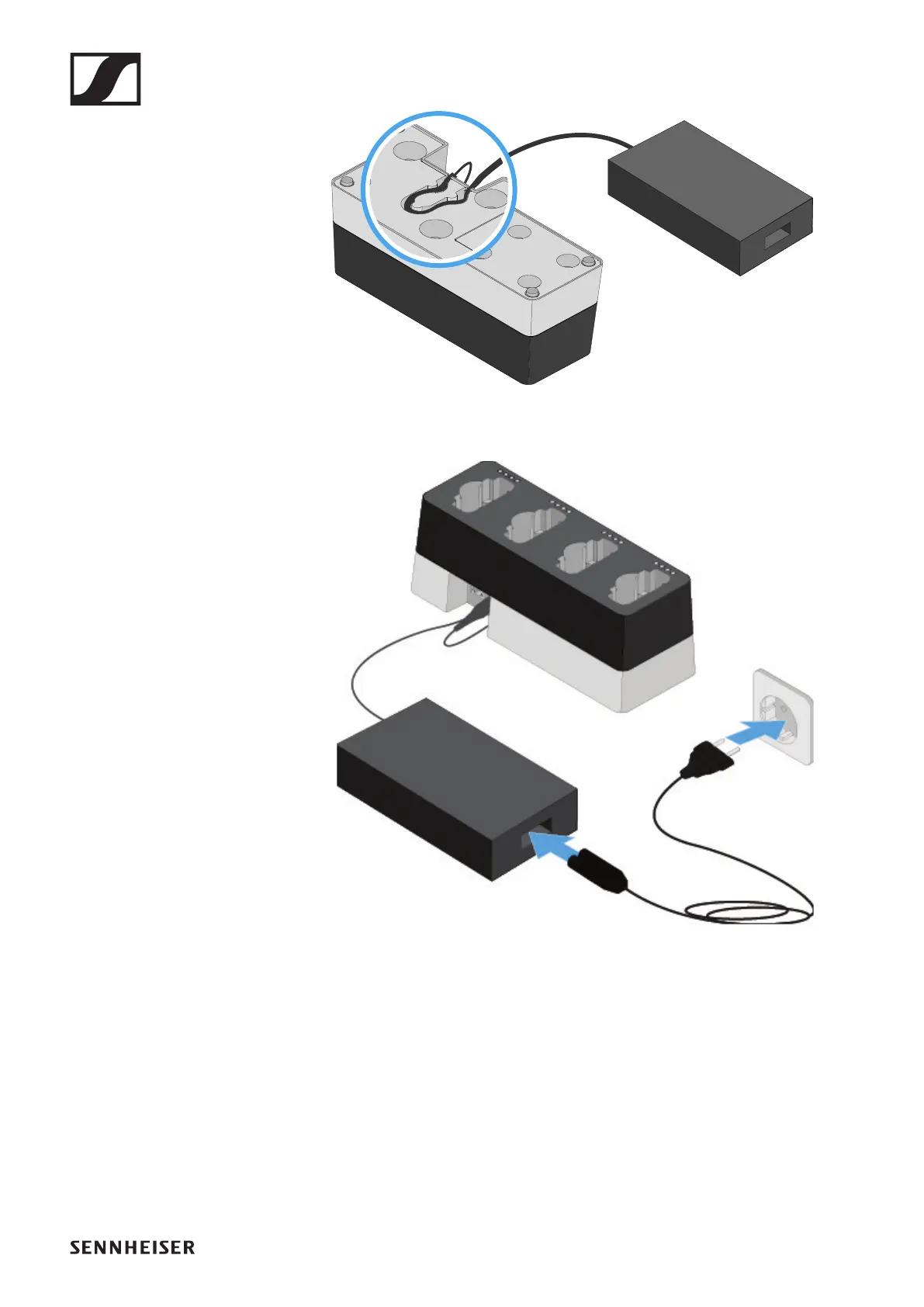

▷ Connect one end of the power cord to the power supply unit

and the other end to the wall socket.

►
