The SL Bodypack DW

125

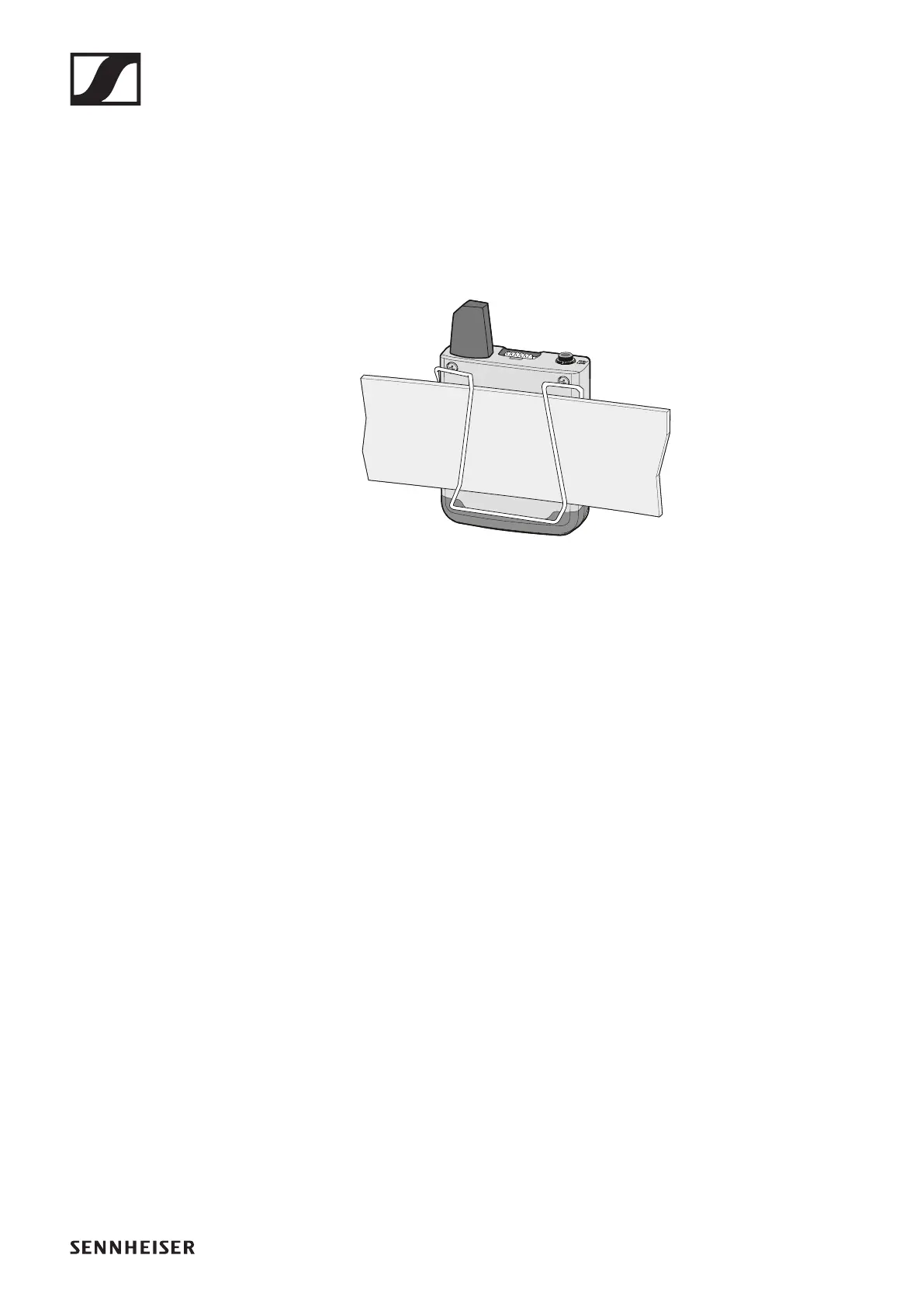

10Belt clip

You can use the belt clip to attach the bodypack transmitter to

clothing (e.g. belt, waistband). The bodypack transmitter

should be attached so that the antenna is not covered, other-

wise the transmission range will be reduced.

►
