The SL Tablestand 153-S DW

144

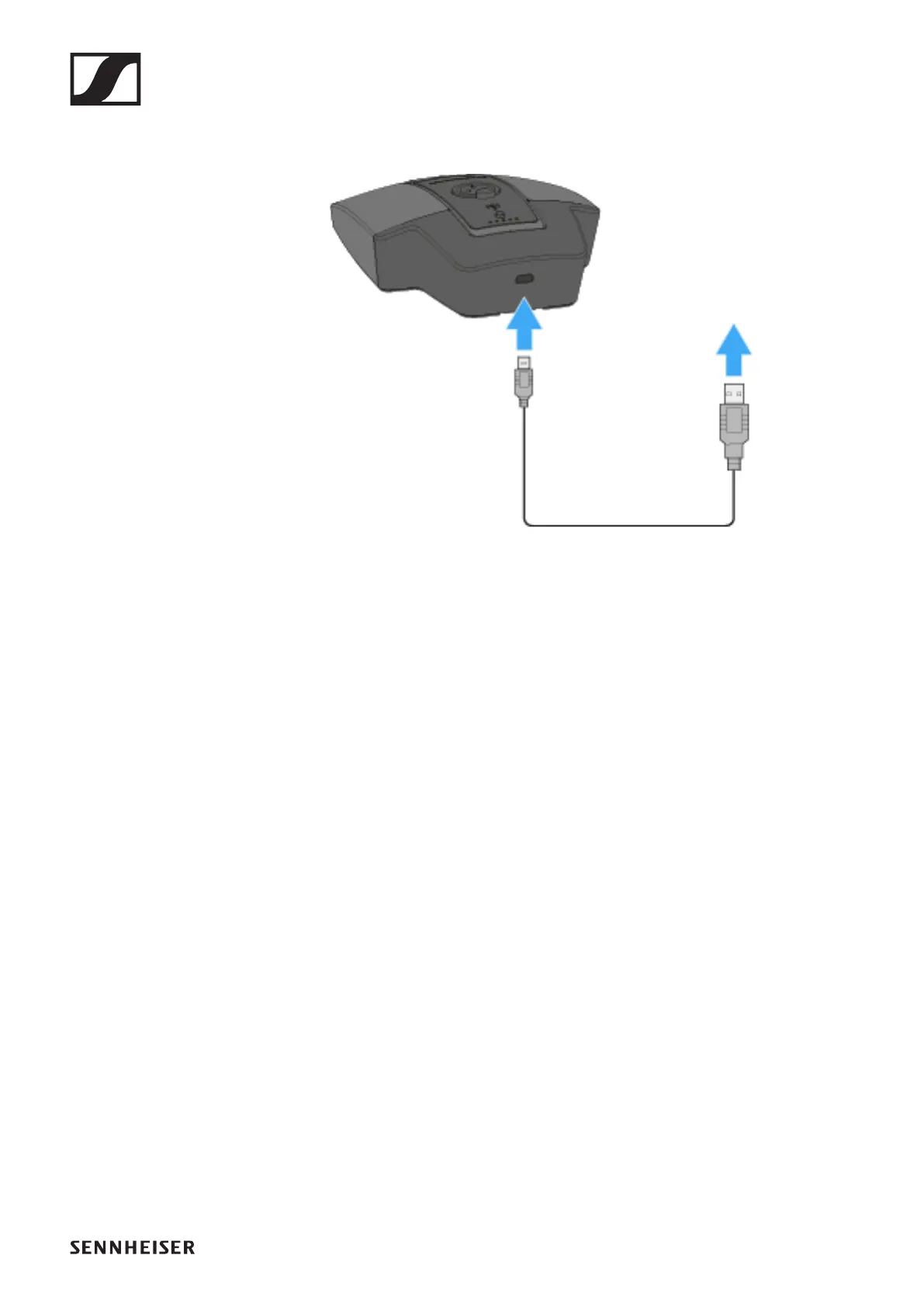

Charging the table stand via USB

To charge the table stand via USB:

►

▷ Connect the USB cable’s Micro-USB plug to the Micro-USB

socket of the accupack.

▷ Plug the other end of the USB cable into a USB power sup-

ply unit.

The charge level LEDs indicate the charge level.
