The SL Headmic 1 headset microphone
170

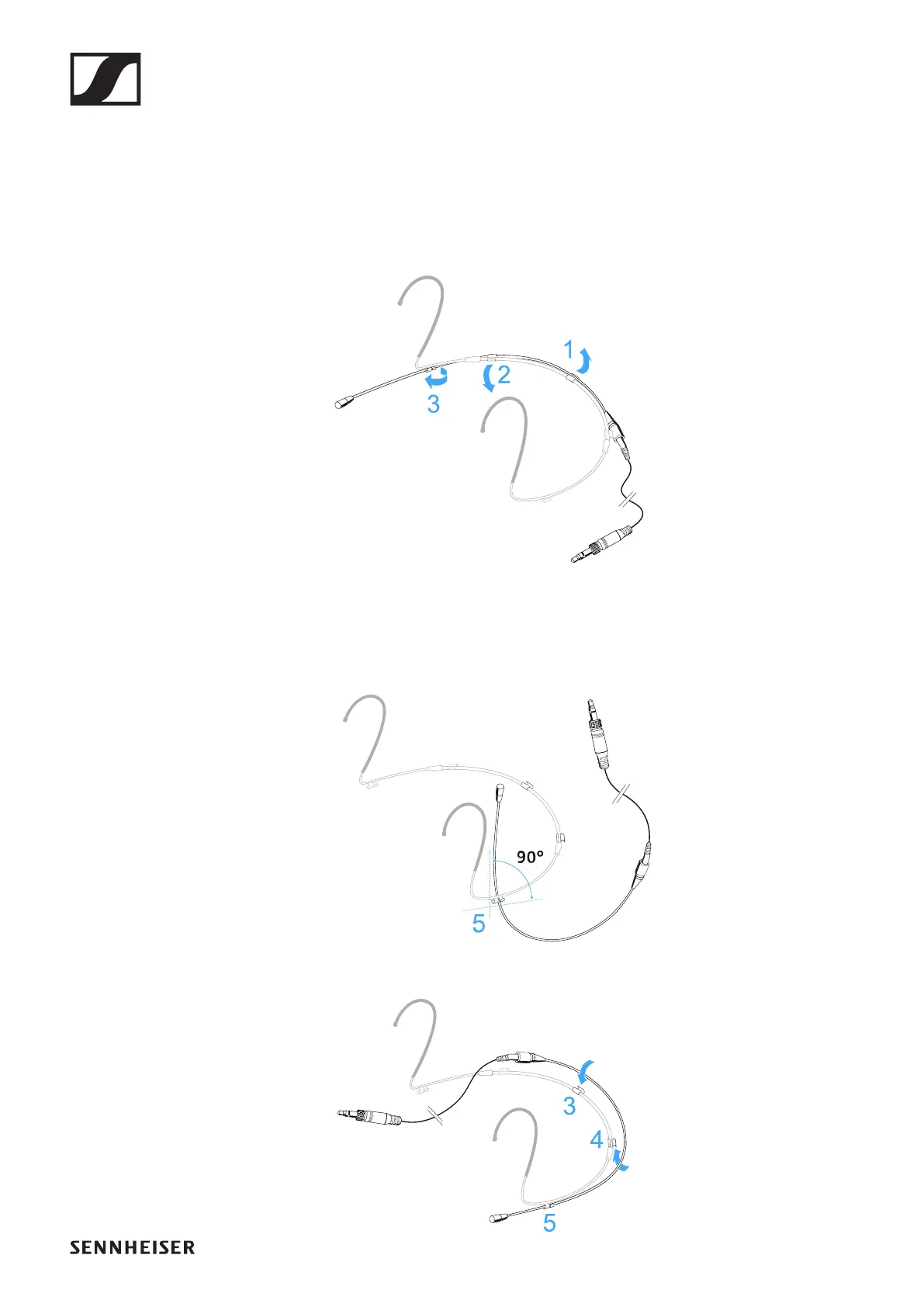

Modifying the microphone boom
To remove the microphone boom:
▷ First remove the microphone boom from the two clips 1 and
2.
▷ Turn the microphone boom to remove it from the third clip
3.
To reattach the microphone boom:
▷ First attach the end of the microphone boom where the mi-
crophone capsule is fitted to the clip
5 on the desired side
of the neckband.
▷ Press the microphone boom into the two clips 3 and 4.
