The SL PASC 4 passive antenna splitter/combiner
213
holes.
▷ Screw the unit consisting of antenna splitter and mounting
accessories into a 19" rack.
Mounting the jointing plate and fastening the
mounting angles (to install two antenna splitters
side by side)
To fasten the mounting angles:
▷ Remove the two recessed head screws on both outer-fac-
ing sides of the antenna splitters.
▷ Fasten the mounting angles to the outer-facing sides of the
antenna splitters using the previously removed recessed
head screws.
To mount the jointing plate:
▷ Place the two antenna splitters side by side on a flat sur-
face with the undersides facing upward.

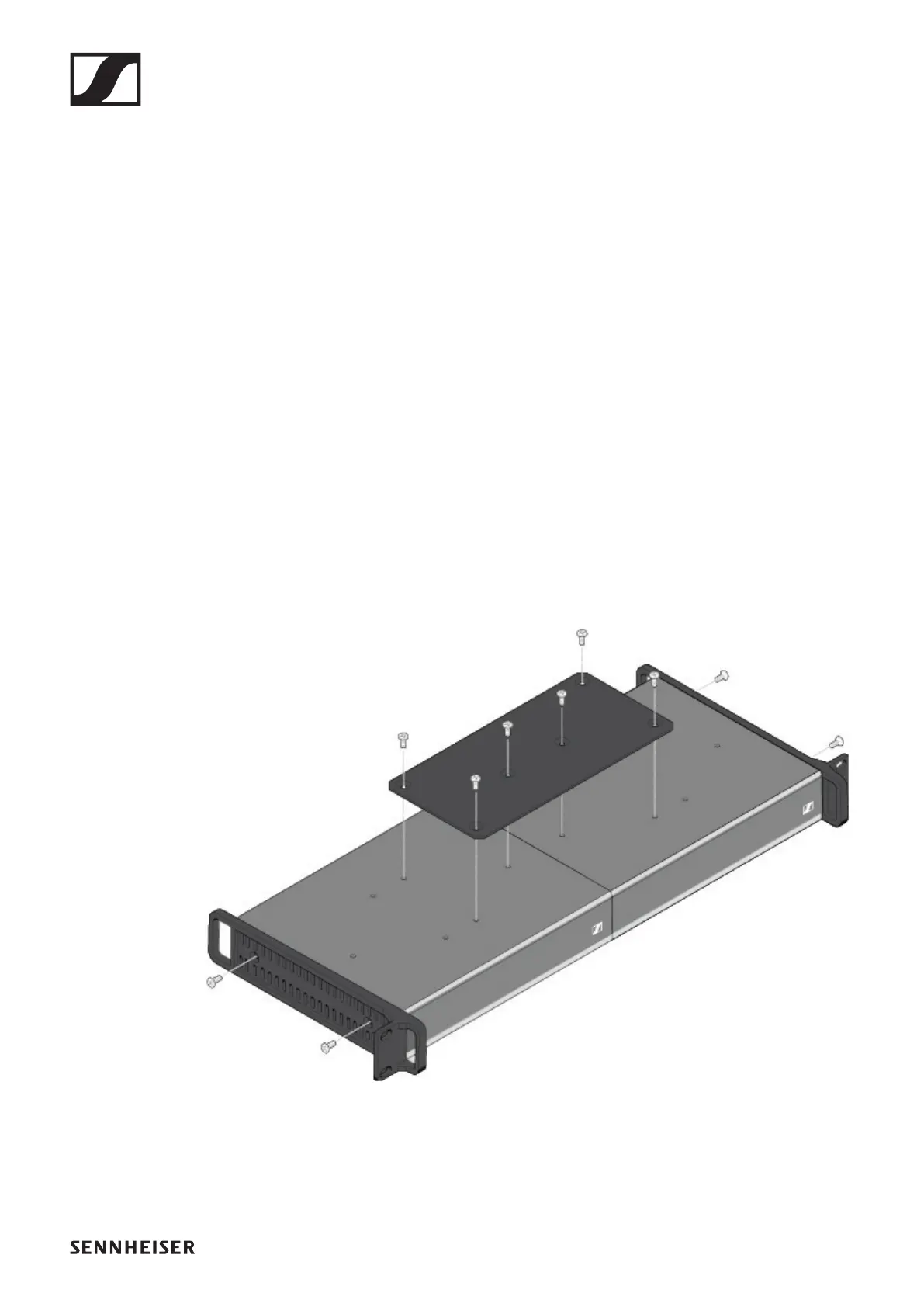

▷ Screw the two antenna splitters together using the jointing
plate and the six recessed head screws, as shown in the
figure.
►
▷ Screw the unit consisting of the two antenna splitters into
a 19" rack.
