SL Rack Receiver DW

►

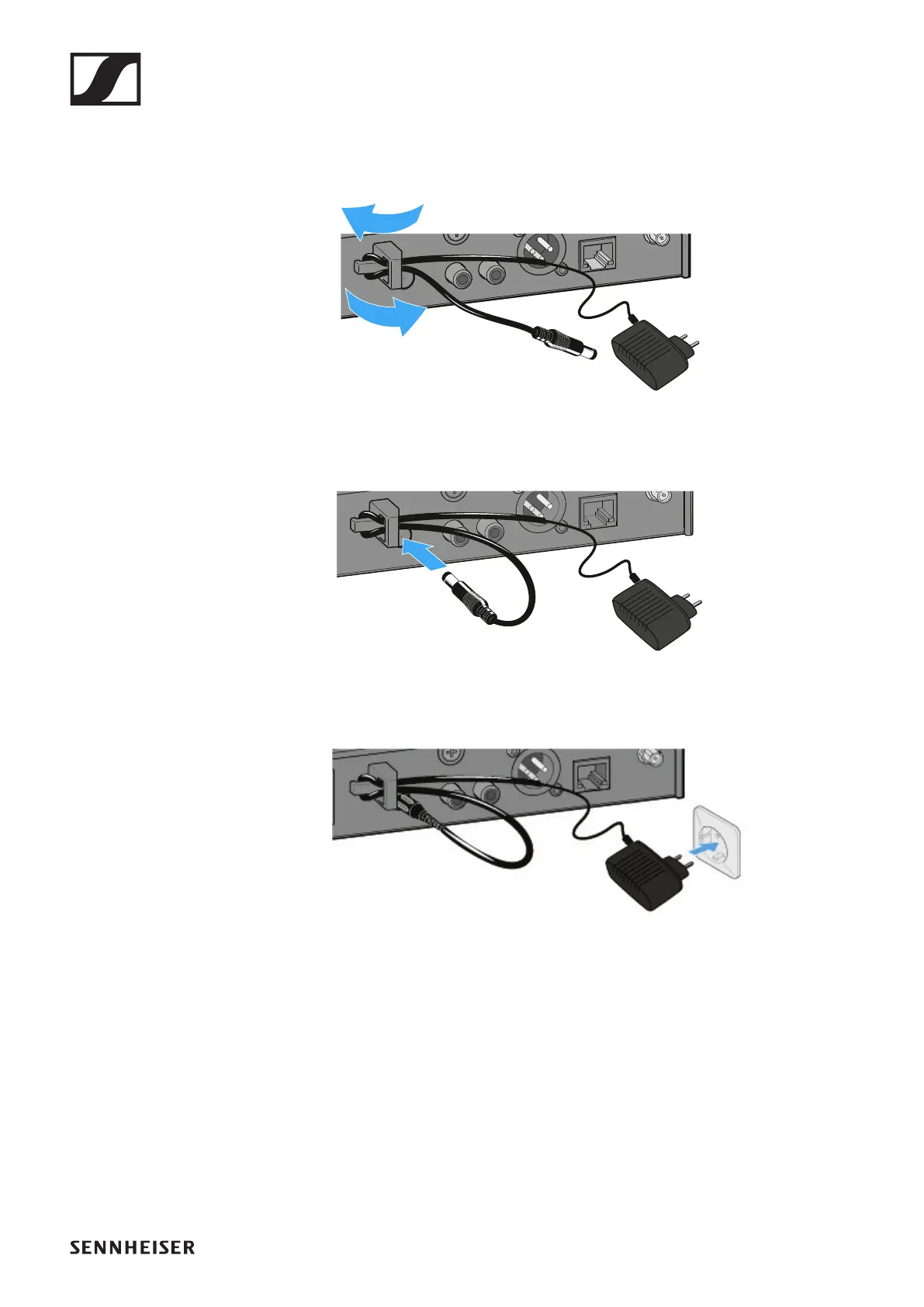

To connect the power supply unit:

▷ Pass the cable of the power supply unit through the strain

relief grip as shown.

►

▷ Connect the hollow jack plug of the power supply unit to

the DC IN socket of the receiver.

►

▷ Plug the power supply unit into the wall socket.

►
