SL Rack Receiver DW

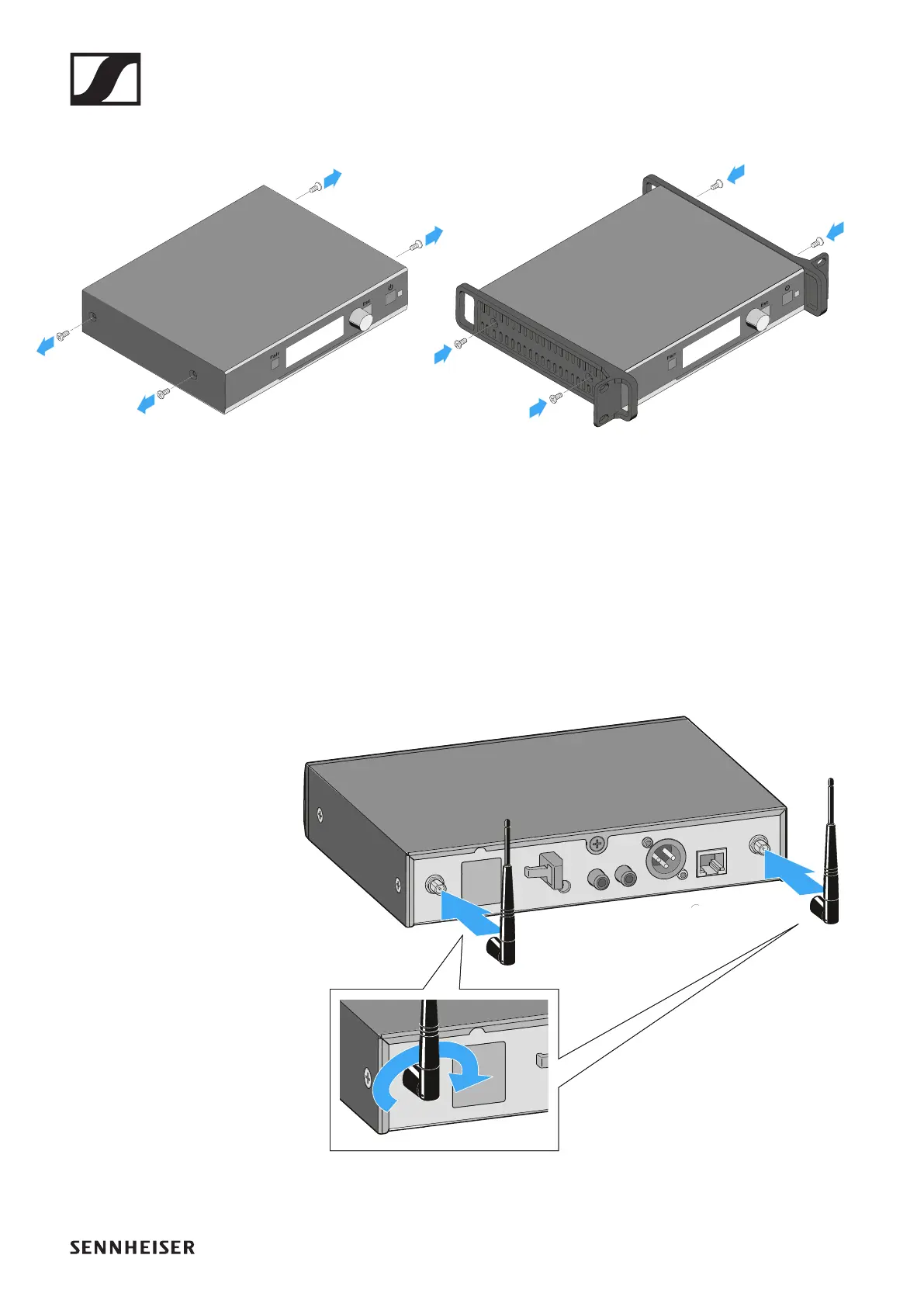

Make sure that the angled ends of the mounting angles

point forward.

►

Connecting the rod antennae to the receiver

To connect the supplied rod antennae to the receiver:

▷ Screw the two rod antennae into the receiver's two antenna

sockets, ANT I and ANT II, as shown.

▷ Align the rod antennae vertically.

►
