SL Rack Receiver DW
81

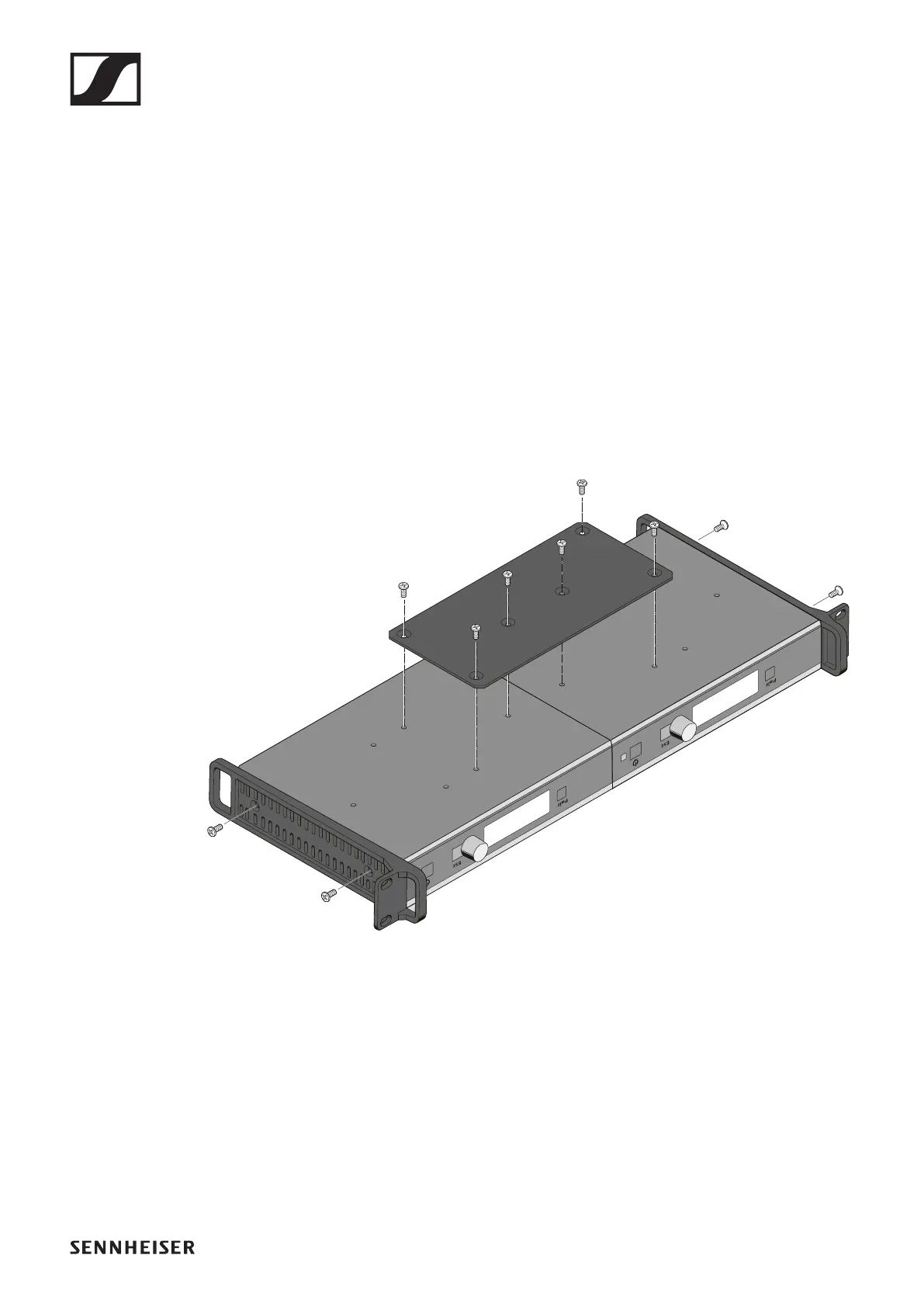

Mounting the jointing plate and fastening the
mounting angles (to install two receivers side by
side)
To fasten the mounting angles:
▷ Unscrew and remove the two recessed head screws on the
outward-facing sides of the receiver.
▷ Secure the mounting angles to the outward-facing sides of
the receiver using the previously removed recessed head
screws.
To mount the jointing plate:
▷ Place the two receivers side by side upside-down onto a
flat surface.
▷ Secure the jointing plate to the receiver using the six re-
cessed head screws as shown.
►
Connecting the AWM 2 / AWM 4 remote antenna to
the receiver
Instead of the supplied rod antennae, you can also connect a
remote antenna to the receiver. For more information, see
„The AWM 2 antenna wall mount“ and „The AWM 4 antenna
wall mount“.
▷ Pay attention to the notes about antenna installation under
„Recommendations on antenna mounting“.
