2.2

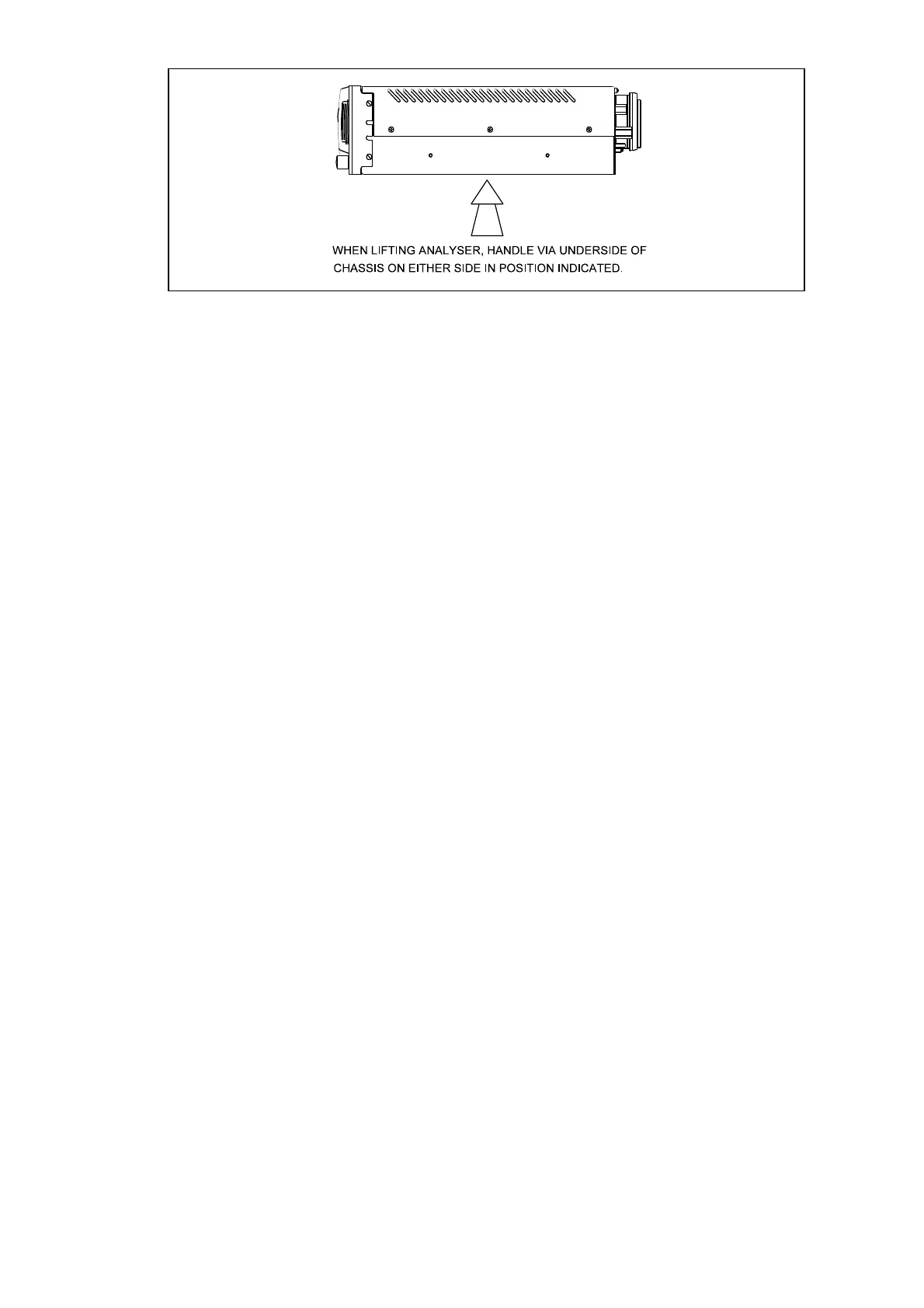

Figure 2.1 Recommended handling
The weight of the xentra (nominally 20 Kg) will vary according to configuration. The
rack mounting brackets (See Figure 2.2 item 1) are not designed to be used as handles
or grips. When removing the instrument from its packing, and for subsequent handling,
ensure that the analyser is gripped securely underneath in the positions indicated in
Figure 2.1). Lift and remove the xentra from its packing and inspect for any damage
incurred during transit. If damage has occurred, inform Servomex or its agent
immediately. Retain all packing and shipping information. The shipping carton may be
used for future transportation.
After the initial visual inspection, perform the following checks:
(1) Check that the specification details table in the front of this manual are in order
and agree with the purchase requirements. Pay particular attention to any
inserted Instrument Modification Sheets.
(2) Check that the accessories are present and undamaged.
Standard xentra accessories provided are :-
Spare mains fuses suitable for electrical power voltage range ordered.
Two connectors for wiring to standard chassis signal output plugs (PL1
and PL5).
Electrical power cord with moulded IEC connector or loose IEC connector
for wiring during installation.
Optional xentra accessories are:-
Connectors for wiring to each optional signal output plug (PL2 to PL4).
Spanner and spare filter elements for those analysers configured with a
sample filter.
Rack mounting slides and kit of parts (See Figure 2.3).
