2: Meter Overview and Specifications
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
2: Meter Overview and Specifications
2.1: Hardware Overview
The Shark® 100 monitor is a multifunction
power meter designed to be used in electrical
substations, panel boards and as a power
meter for OEM equipment. The unit provides
multifunction measurement of all electrical
parameters.
The unit is designed with advanced measure-
ment capabilities, allowing it to achieve high
performance accuracy. The Shark 100®
meter is specified as a 0.2% class energy
meter for billing applications as well as a
highly accurate panel indication meter. The
Shark® 50 meter is specified as a 0.5% class energy meter.
The Shark® 100 meter provides a host of additional capabilities, including either
standard RS485 Modbus® or RJ45 Ethernet, DNP Protocols and an IrDA Port panel
mount interrogation. The Shark® 50 meter has optional RS485 Modbus communica-
tion.
Shark® 100 meter features that are detailed in this manual are as follows:
• 0.2% class revenue certifiable energy and demand metering
• Meets ANSI C12.20 (0.2%) and IEC 62053-22 (0.2%) accuracy classes
• Multifunction measurement including voltage, current, power, frequency, energy,
etc.
• Power quality measurements (%THD and Alarm Limits)
• V-Switch
TM
technology - field upgrade without removing installed meter
• Percentage of Load bar for analog meter perception
• Easy to use faceplate programming

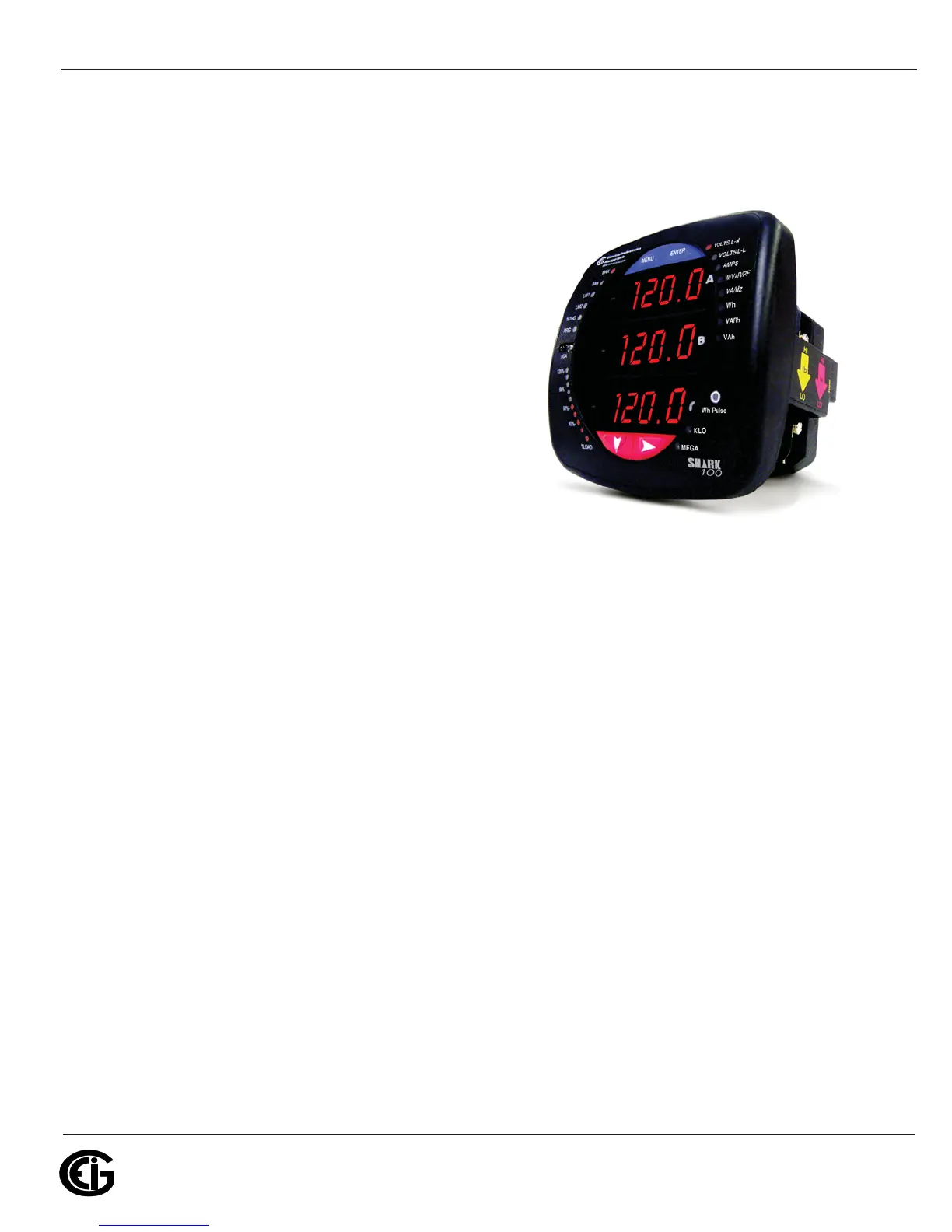

Figure 2.1: Shark® 100 Meter
