3: Mechanical Installation
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
3.4: Shark® 100T Transducer Installation
The Shark® 100T Transducer model is installed using DIN Rail Mounting.
Specs for DIN Rail Mounting
International Standards DIN 46277-3
DIN Rail (Slotted) Dimensions: 7.55mm x 35mm

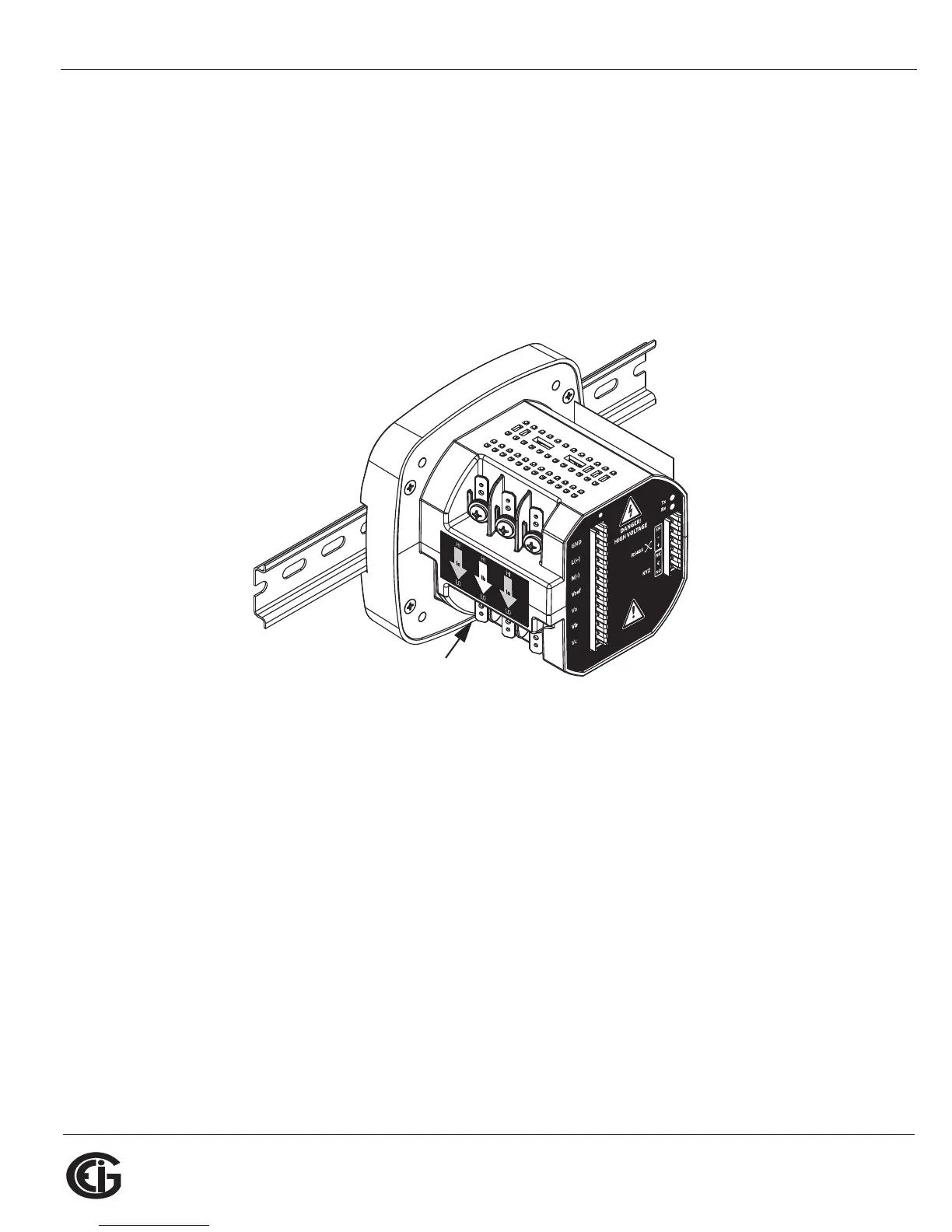

Figure 3.9: DIN Rail Mounting
DIN RAIL INSTALLATION STEPS:
1. Slide top groove of meter onto the DIN Rail.
2. Press gently until the meter clicks into place.
Release Clip
