Communication connections are detailed in Chapter 5.
NOTE: Figures 4.1 - 4.4 show the back of a meter with the 485P option. If your meter
is a Shark® 100B or is a Shark® 100 with the INP10 option, you will see an RJ45 port
and KYZ Pulse Output on the back of the meter.
4.3: CT Leads Pass Through (No Meter Termination)
The second method allows the CT wires to pass through the CT inputs without termi-
nating at the meter. In this case, remove the current gills and place the CT wire
directly through the CT opening. The opening accommodates up to 0.177” / 4.5mm
maximum diameter CT wire.

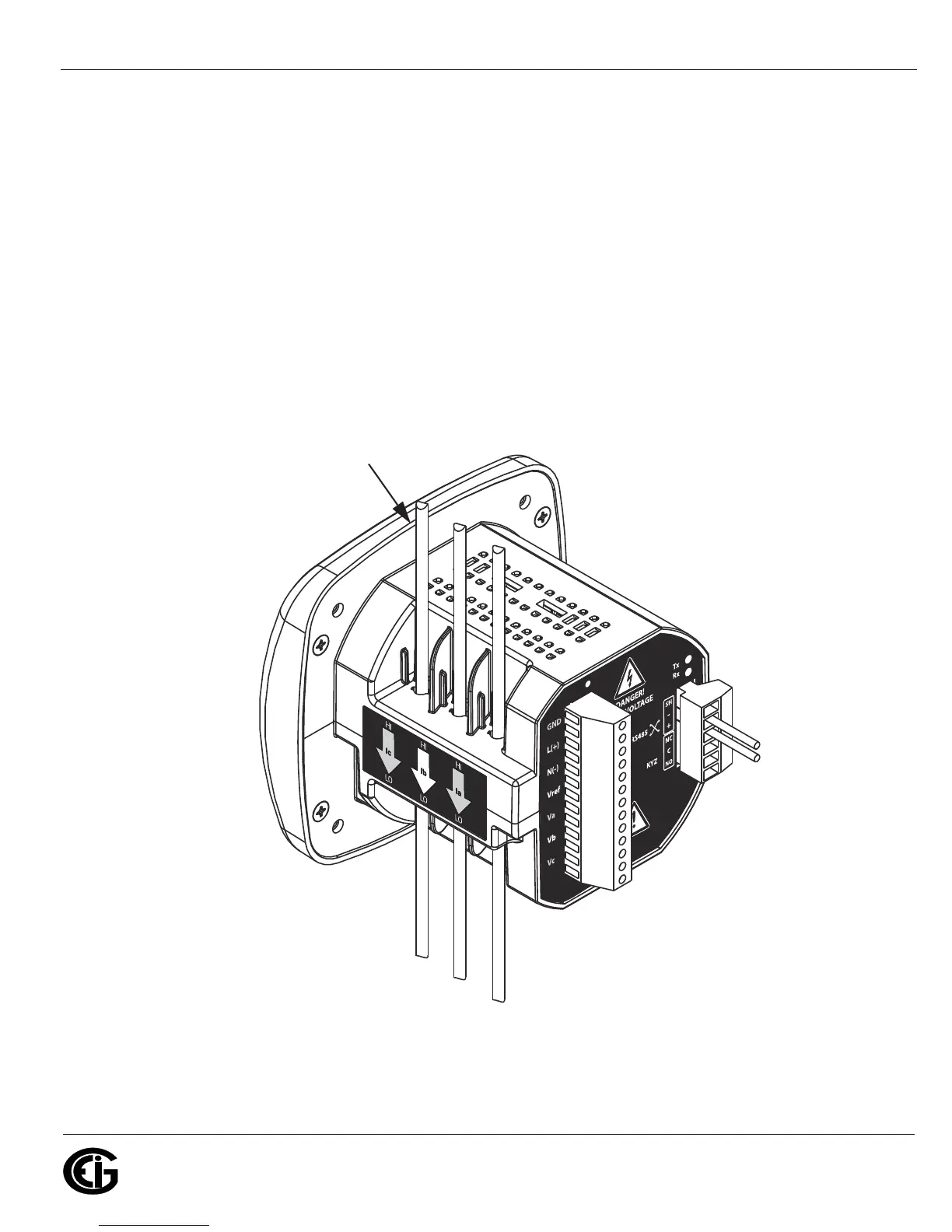

Figure 4.2: Pass Through Wire Electrical Connection
Current
gills
removed
CT wire
passing
through meter
