Doc# E145701 3 - 5
3: Mechanical Installation
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
3.3: DIN Installation Steps
INSTALLATION STEPS:
1. Slide meter with NEMA 12
Mounting Gasket into panel.
(Remove ANSI Studs, if in
place.)
2. From back of panel, slide 2 DIN
Mounting Brackets into grooves
in top and bottom of meter
housing. Snap into place.
3. Secure meter to panel by using
a #2 Phillips screwdriver to
tighten the screw on each of the
two mounting brackets. Do not
overtighten: the maximum
installation torque is 0.4
Newton-Meter.
DIN mounting
bracket
Top mounting
bracket groove
Bottom
mounting
bracket groove
#8 screw
Remove (unscrew)
ANSI studs for
DIN installation
Meter in
NEMA12
mounting
gasket

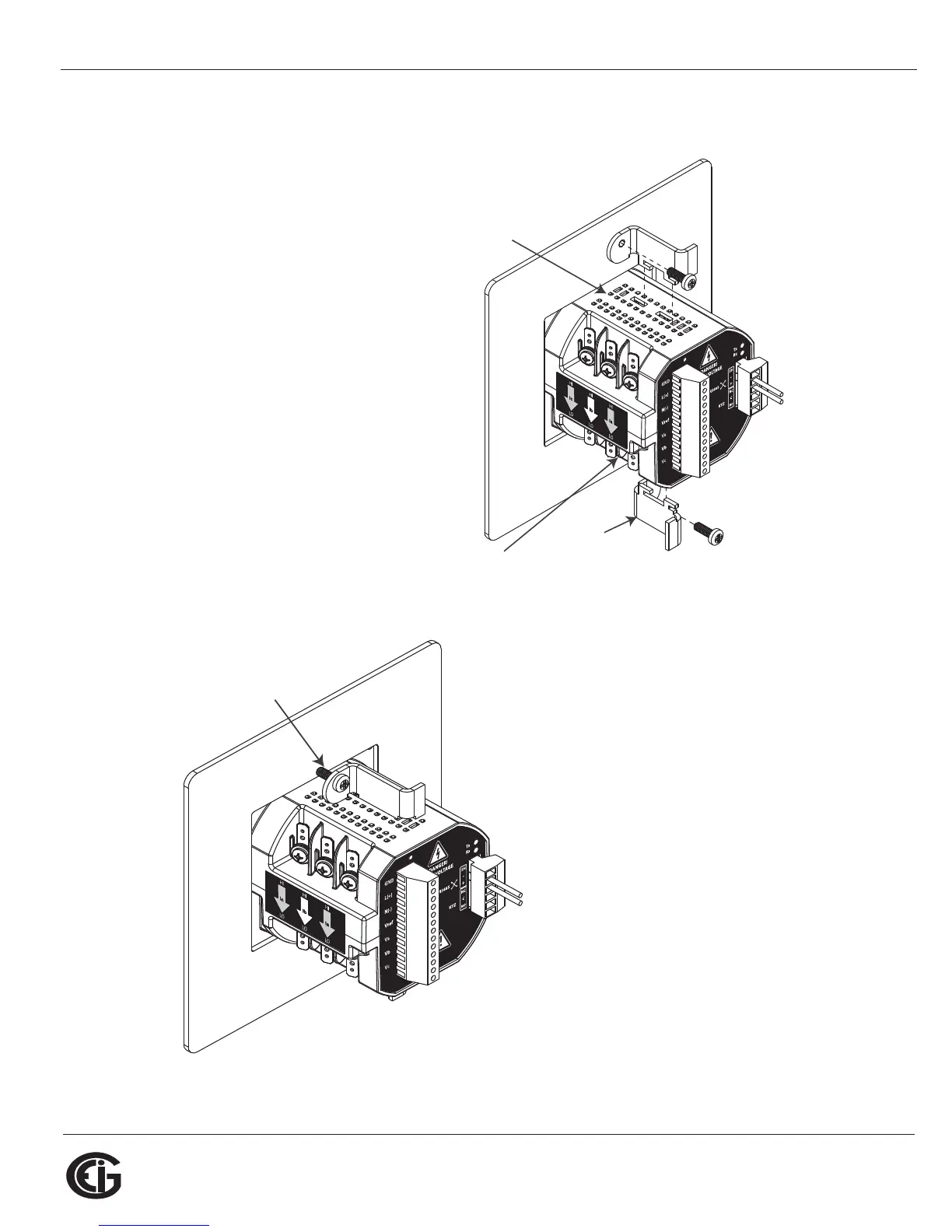

Figure 3.8: DIN Installation
