Sharp 60X50H - TV (Rear)

13
Preparation

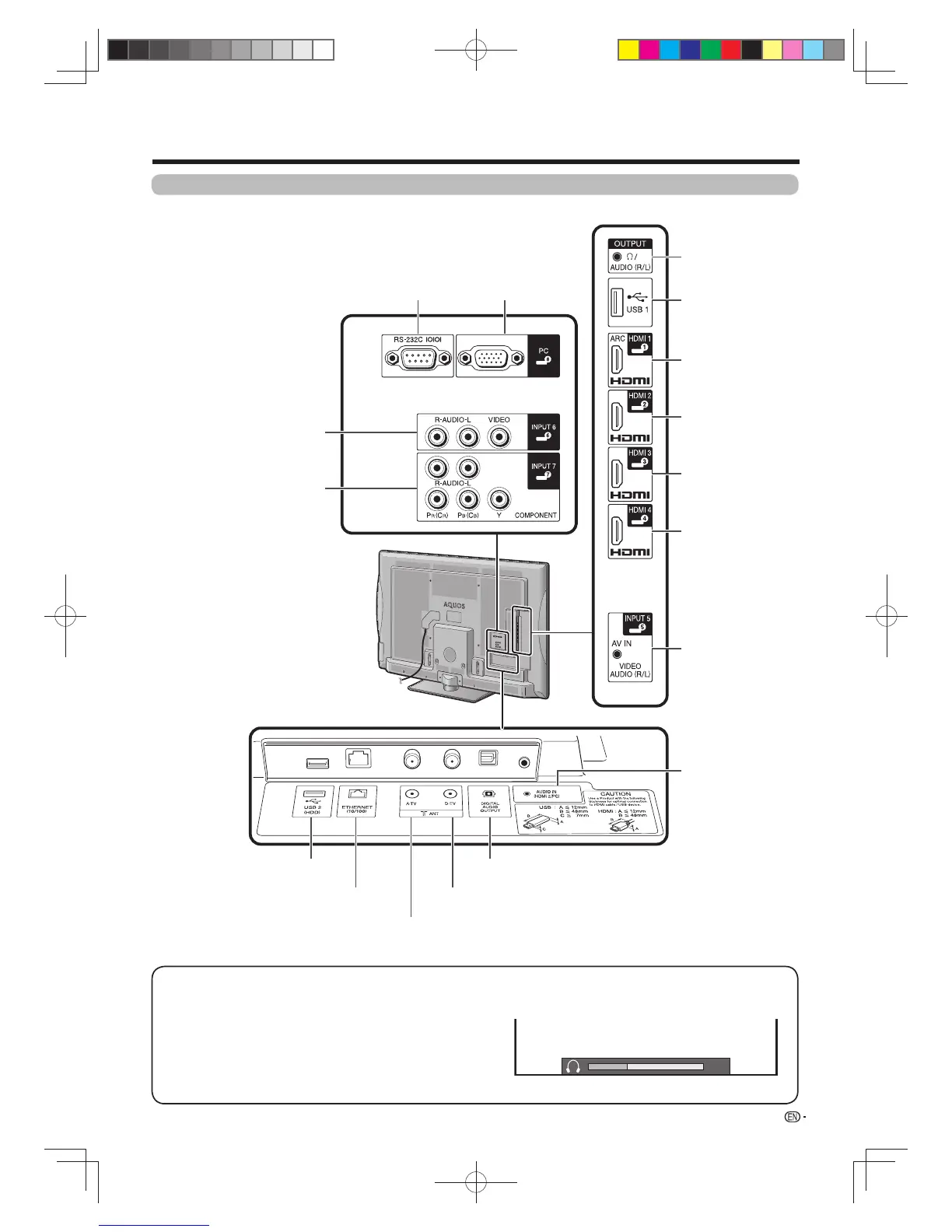

TV (Rear)
D-TV (Digital
antenna) terminal
HDMI 2 terminal
A-TV (Analogue
antenna) terminal
USB 2 (HDD) terminal**
LAN terminal
Regarding the headphone jack
• Use headphones with a stereo mini plug (Ø 3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “Audio” menu cannot be operated when headphones are
plugged in.
• You can set the volume to different levels for each input source.
Volume display when headphones are plugged in
20
Headphones/AUDIO
(R/L) terminal
HDMI 3 terminal
DIGITAL AUDIO
OUTPUT terminal
HDMI 1 terminal (ARC)
HDMI 4 terminal
INPUT5
(Video/Audio
input) terminal
HDMI 2/
PC AUDIO
INPUT
(
R
/L ) terminal*
RS-232C terminal
INPUT6 terminals
INPUT7 terminals
PC terminal
USB 1 terminal
* The
HDMI 2/ PC AUDIO INPUT
(
L
/R )
terminal
can use the same audio input
terminal (HDMI 2/
PC
). However, the
proper item must be selected in the
“Audio select” menu. (See pages 58
and 66 for details.)
** Use this terminal if the recharging of
the USB HDD is by USB.
