16
Preparation
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, a Digital
TV Set Top Box (STB), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

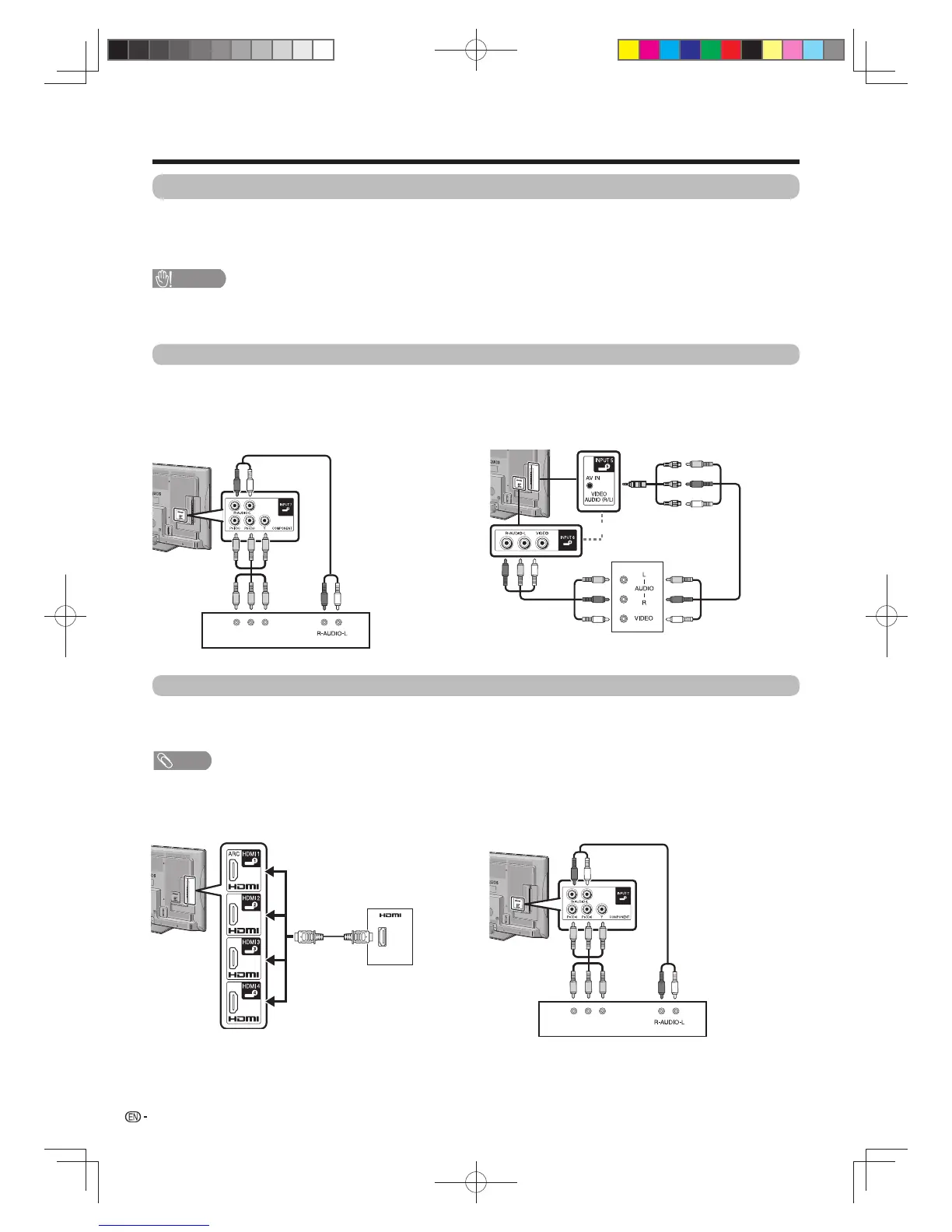

Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the INPUT5/INPUT6 (composite) or INPUT7 (component) terminals.
Connecting a DVD player
You can use the HDMI1 (ARC)/HDMI2/HDMI3/HDMI4 or the INPUT5/INPUT6 (composite) or INPUT7 (component)
terminals when connecting to a DVD player and other audiovisual equipment.
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV Set Top Box (STB) and PC. To view external source images, select the input source from
TV/VIDEO
on
the remote control unit or
TV/VIDEO
on the TV.
When using component cable
(commercially available)
When using composite cable
(commercially available)
VCR/Game console/Camcorder
VCR/Game console/Camcorder
YPB
(CB)
P
R
(CR)
AV cable
(supplied)
or
When using HDMI cable
(commercially available)
When using component cable
(commercially available)
NOTE
• When using a DVI-HDMI conversion adaptor, input the audio signal from the HDMI2/
PC AUDIO INPUT
terminal. (See page 58.)
DVD player
DVD player
YPB
(CB)
P
R
(CR)
60X50H_en_ID5.indd 1660X50H_en_ID5.indd 16 2011-6-13 17:19:542011-6-13 17:19:54
