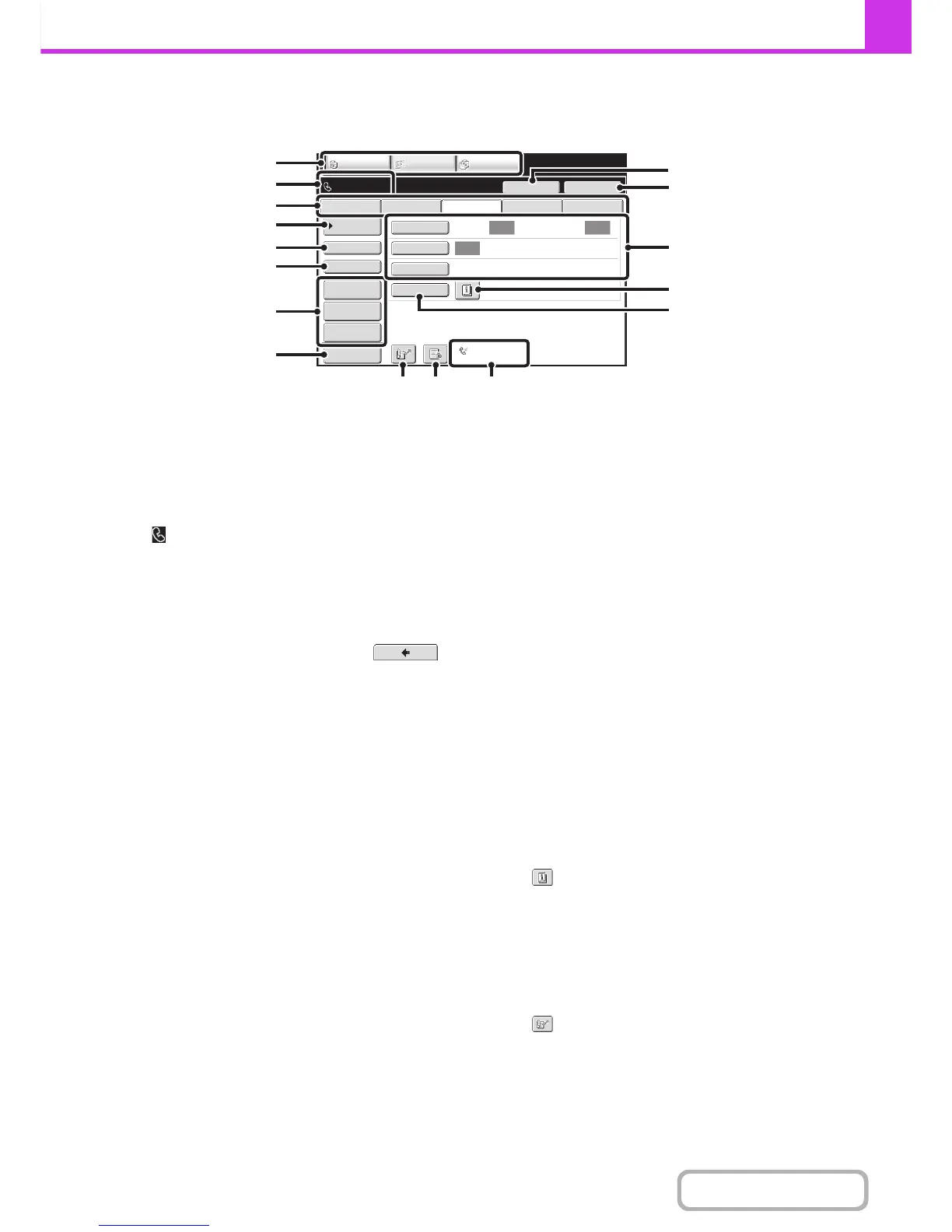

BASE SCREEN OF FAX MODE
This screen is used to select settings and operations in fax mode.
(1) Mode select keys
Use these keys to switch between copy, image send, and
document filing modes.
To switch to fax mode, touch the [IMAGE SEND] key.
(2) This shows various messages and the destinations
that have been entered.
The icon on the left indicates fax mode.
(3) Send mode tabs
Use these keys to change the mode of the image send
function.
Tabs of modes that cannot be used because the
appropriate options are not installed do not appear.
If the [Fax] tab does not appear, touch the
tab to move the screen.
+ BASE SCREEN OF FAX MODE (page 4-7)
(4) [Address Book] key
Touch this key to dial using a one-touch key or group
key. When the key is touched, the address book screen
appears.
+ RETRIEVING A FAX NUMBER FROM THE
ADDRESS BOOK (page 4-17)
(5) [Direct TX] key
Touch this key to send a fax by direct transmission.
When the [Direct TX] key is not highlighted, normal
transmission (memory TX mode) is selected.
+ To fax a large number of sheet originals, use the
automatic document feeder. (page 4-25)
+ If you wish to send a fax ahead of other previously
reserved fax transmissions, use direct transmission
mode. (page 4-26)
(6) [Sub Address] key
Touch this key to enter a sub-address and passcode for
F-code transmission.
+ F-CODE DIALING (page 4-110)
(7) Customized keys
The keys that appear here can be changed to show
settings or functions that you prefer.
+ Customizing displayed keys (page 4-9)
(8) [Preview] key
Touch to check the image that will be sent in the touch
panel before transmission.
+
CHECKING THE IMAGE TO BE TRANSMITTED
(Preview) (page 4-56)
(9) [Speaker] key / [Pause] key / [Space] key
Touch this key to dial using the speaker.
When entering a fax number to be dialed, the key
changes to the [Pause] key. When entering a
sub-address, the key changes to the [Space] key.
+
TRANSMISSION USING THE SPEAKER (page 4-38)
(10) [Resend] key / [Next Address] key
Touch this key to redial a fax number. When entering a fax
number to be dialed, this key changes to the [Next Address] key.
+ USING THE RESEND FUNCTION (page 4-23)
(11) Image settings
Image settings (original size, exposure, resolution) can
be selected.
+ IMAGE SETTINGS (page 4-45)
(12) key
This key appears when a special mode or 2-sided scanning is
selected. Touch the key to display the selected special modes.
+
Checking what special modes are selected (page 4-9)
(13) [Special Modes] key
Touch this key to use a special mode.
+ SPECIAL MODES (page 4-71)
(14) key
Touch this key to dial a fax destination using a search
number.
+ USING A SEARCH NUMBER TO RETRIEVE A
DESTINATION (page 4-20)
