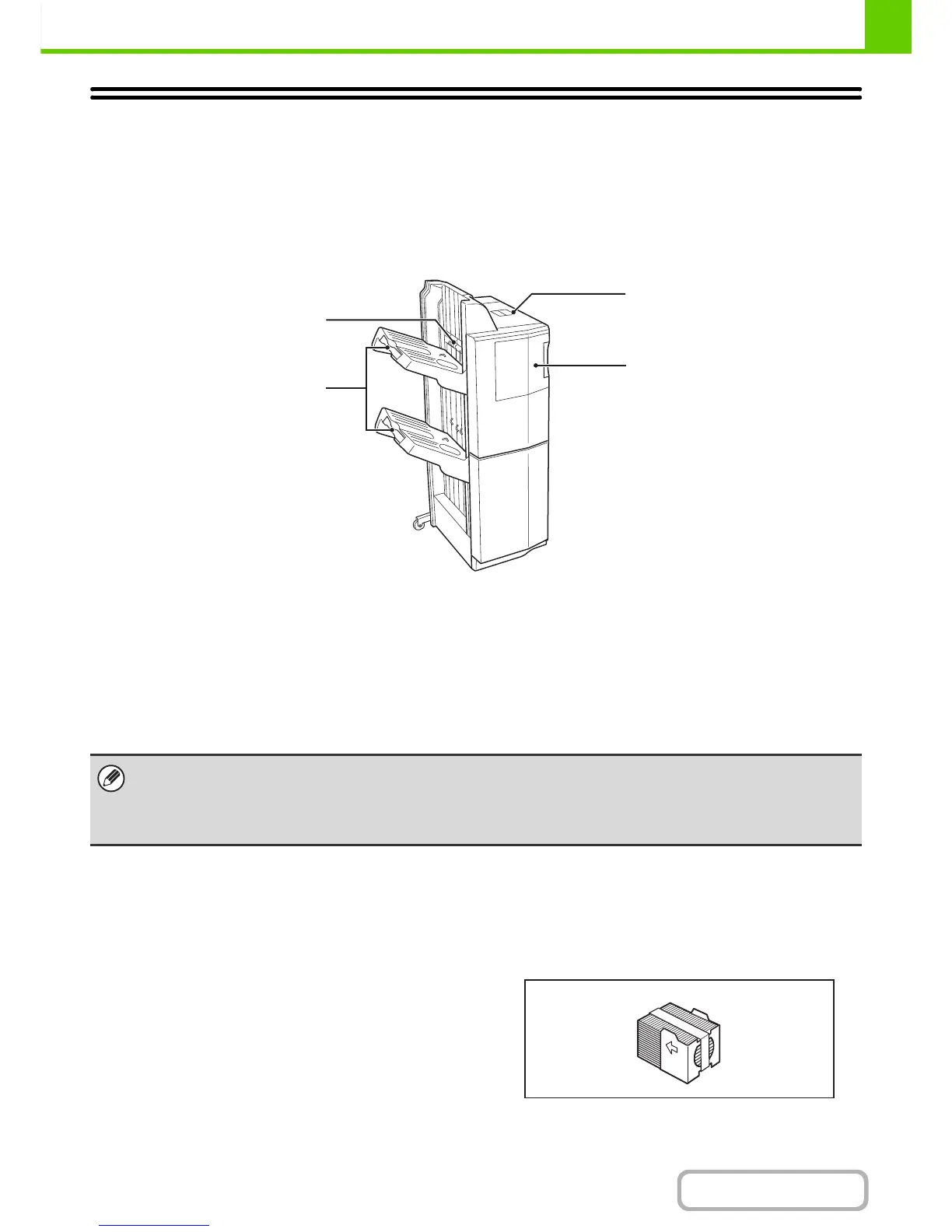

FINISHER (LARGE STACKER)
The finisher (large stacker) is equipped with the offset function, which offsets each set of output from the previous set, and
the staple sort function, which staples each set of output.
A punch module can also be installed to punch holes in output.
PART NAMES
(1) Stapler compiler
This temporarily stacks paper to be stapled.
(2) Output trays (upper tray, lower tray)
Stapled and offset output is delivered to these trays.
The trays are slidable. For large-size output (12" x 18",
11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 13-1/2",
8-1/2" x 13-2/5", A3W, A3, B4 and 8K sizes), extend the
tray.
(3) Top cover
Open this cover to remove a paper misfeed.
(4) Front cover
Open this cover to replace the staple cartridge or remove
a staple jam.
SUPPLIES
The finisher (large stacker) require the following staple cartridge:
Staple cartridge (approx. 5000 staples x 3 cartridges)
AR-SC2
(1)
(2)
(3)
(4)
• A paper pass unit is required to install a finisher (large stacker).
• Do not place heavy objects on the finisher (large stacker) or press down on the finisher (large stacker).
• Use caution when you turn on the power and when printing is taking place, as the output tray may move up and down.
• A finisher (large stacker) cannot be installed simultaneously with a saddle stitch finisher or a finisher.
To Next Page
