BEFORE USING THE MACHINEâ–ºPERIPHERAL DEVICES
FINISHER (LARGE STACKER)
This device outputs sorted paper while staggering each set of paper. As needed, it staples each set. To punch holes in
printed paper, install an optional hole punch module.

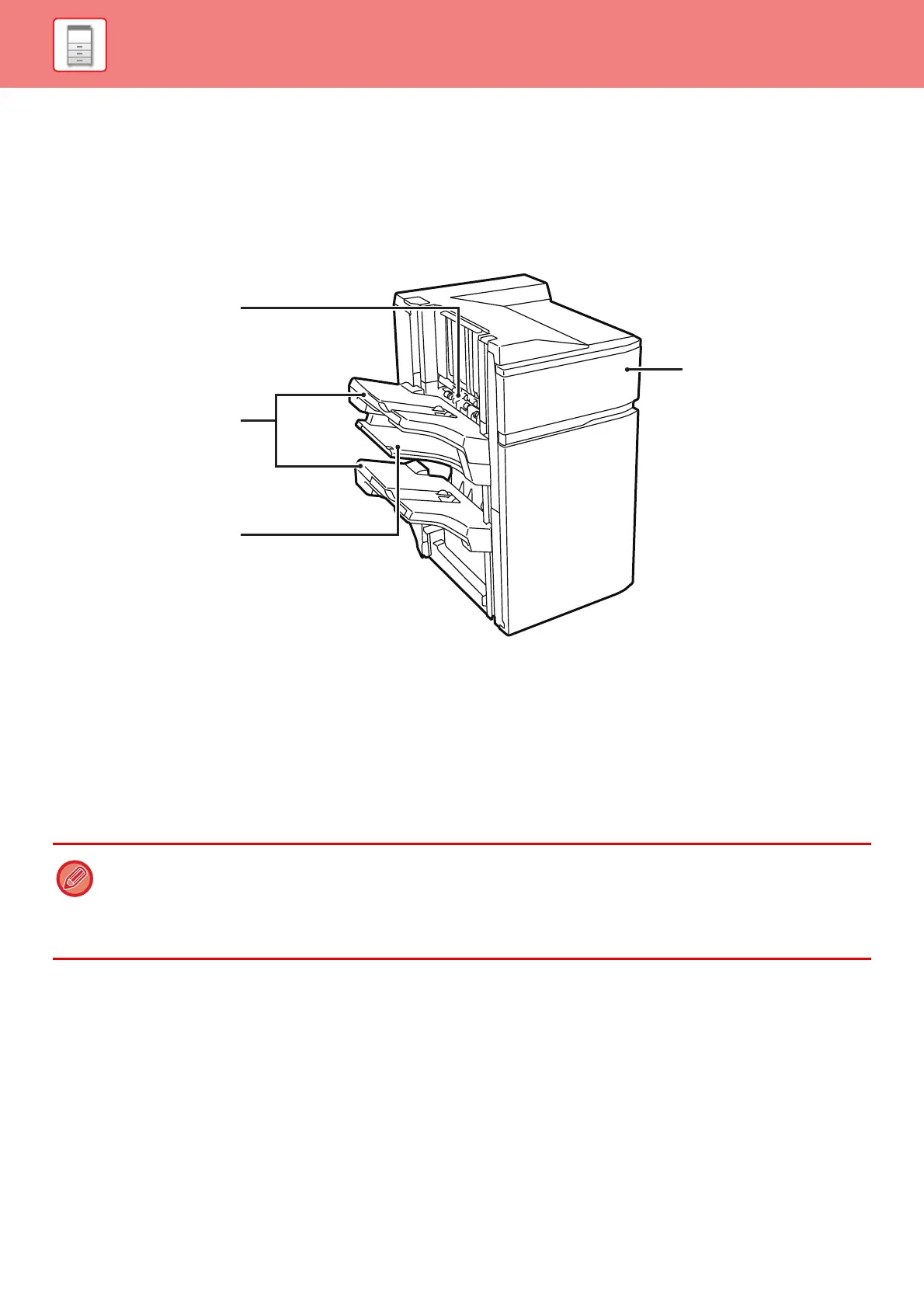

PART NAMES
(1) Staple compiler
This temporarily stacks paper to be stapled.
(2) Output tray
Stapled and offset output is delivered to this tray.
The tray is slidable. Extend the tray for printing on
large-size paper (12" × 18", 11" × 17", 8-1/2" × 14", 8-1/2"
× 13", A3W, A3 and B4 sizes).
(3) Middle output tray
Output paper that will not be offset in this tray.
The tray is slidable. Extend the tray for printing on
large-size paper (12" × 18", 11" × 17", 8-1/2" × 14", 8-1/2"
× 13", A3W, A3 and B4 sizes).
(4) Front cover
Open this cover to replace the staple cartridge or remove
a staple jam.
(2)
(1)
(3)
(4)
• To install a finisher (large stacker), a paper pass unit is required.
• A finisher (large stacker) cannot be installed simultaneously with an inner finisher, finisher, saddle stitch finisher or saddle
stitch finisher (large stacker).
• Do not place heavy objects on the finisher (large stacker) or press down on the finisher (large stacker).
• Exercise caution when you turn on the power and when printing take place, as the tray may move up and down.
