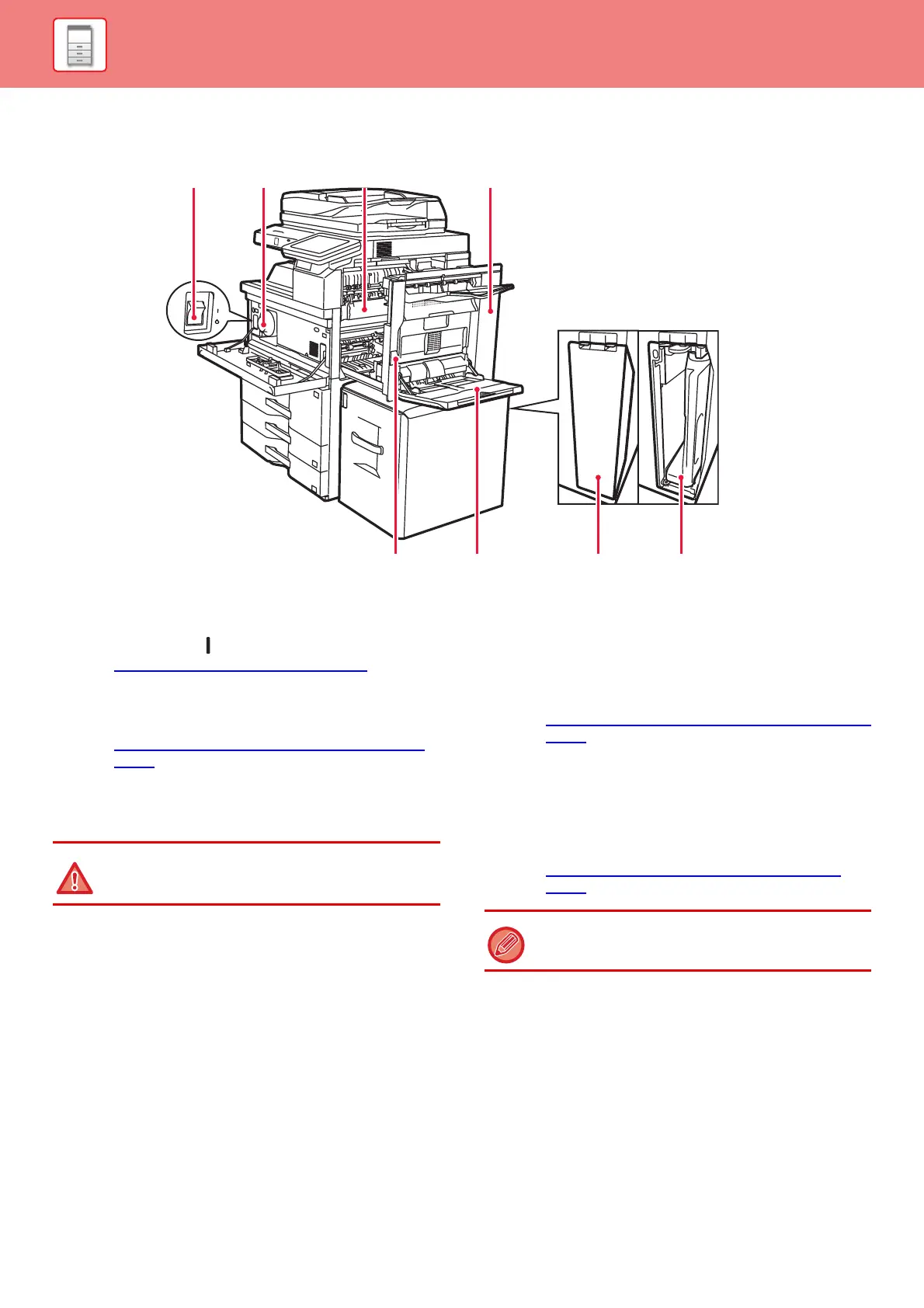

BEFORE USING THE MACHINE►BEFORE USING THE MACHINE
INTERIOR
(1) The main power switch
Use this switch to turn on the power for the machine.
When using the fax or Internet fax functions, always keep
this switch in the “ ” position.
► TURNING ON THE POWER
(page 1-11)
(2) Toner cartridge
This cartridge contains toner.
When the toner in a cartridge runs out, replace with new one.
► REPLACEMENT OF TONER CARTRIDGE (page
1-209)
(3) Fusing unit
Heat is applied here to fuse the transferred image onto
the paper.
(4) Right side cover
Open this cover to remove a paper misfeed.
(5) Right side cover release lever
To remove a paper misfeed, pull and hold this lever up to
open the right side cover.
(6) Bypass tray
Use this tray to feed paper manually.
When loading paper larger than 8-1/2" x 11"R or A4R,
pull out the extension guide.
► LOADING PAPER INTO THE BYPASS TRAY
(page
1-121)
(7) Cover for waste toner box
Open this cover when you need to replace the waste
toner box.
(8) Waste toner box
This container collects excess toner that remains after
printing.
► REPLACING THE WASTE TONER BOX
(page
1-212)
(1) (3)
(6)
(4)
(5) (7) (8)
(2)
The fusing unit is hot. Take care not to burn yourself
when removing a misfeed.
A service technician collects replaced waste toner
box.

Sharp MX-M7570 Specifications

General

Print Technology	Laser
Print Speed	75 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	75 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A3
Network Connectivity	Yes
Scanner Type	Color Flatbed Scanner with Duplex Single Pass Feeder (DSPF)
Functions	Print, Copy, Scan
Original Size	A3
Connectivity	USB 2.0, Ethernet
Operating System Compatibility	Windows, Mac
