Sharp MX-M7570 User Manual

7-17

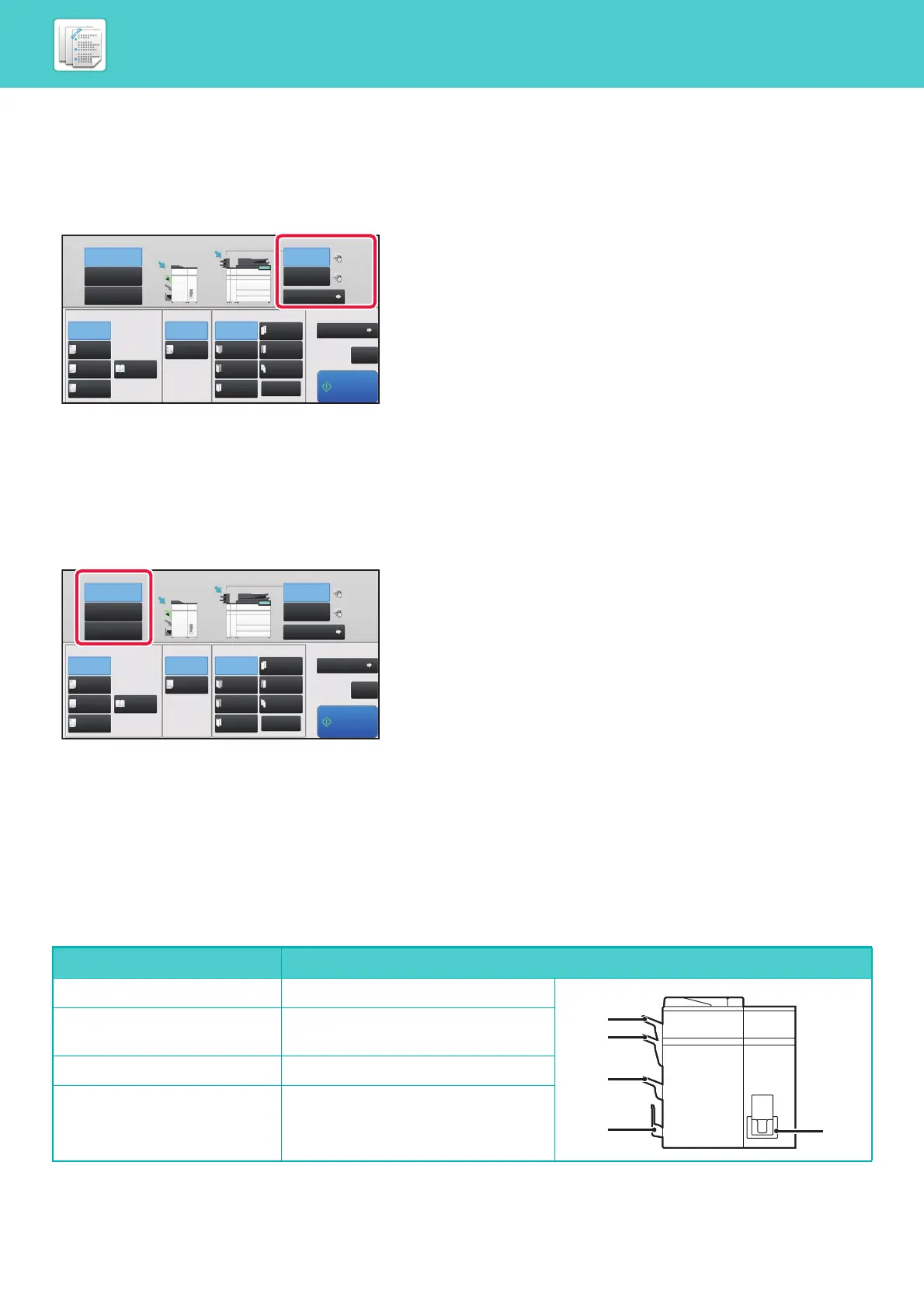

MANUAL FINISHING►OPERATION OF MANUAL FINISHING
TO CHANGE THE PAPER TRAY
The paper tray is automatically detected when paper is loaded in the inserter.
If you need to specify a paper tray when, for example, paper has been loaded into both the upper and lower trays on the
inserter, tap the [Upper Tray] or [Lower Tray] key to specify the appropriate paper tray.
TO CHANGE THE OUTPUT TRAY
The output tray is automatically selected based on the output function you set. If Z-Fold, Half Fold, or Punch is selected,
you can select the upper, middle or lower tray for the output tray.
Tap the [Upper Tray], [Middle Tray] or [Lower Tray] key in "Output Tray" and select the output tray you require.
Relation between output function and output tray
An output tray is automatically selected as shown below based on the output function you set. Depending on the output
function that is originally deselected, it may be deselected if you tap the [Upper Tray], [Middle Tray] or [Lower Tray] key
to change the output tray.
For example, if you tap the [Upper Tray], [Middle Tray] or [Lower Tray] key with "Saddle Stitch" selected, the setting for
"Saddle Stitch" is canceled.
Output function Deliver to
Staple Upper Tray (A) or Lower Tray (C)
Z-Fold/Half Fold/Punch Upper Tray (A), Middle Tray (B) or
Lower Tray (C)
Saddle Stitch/Saddle Fold Saddle Stitch Tray (D)
C-Fold/Accordion Fold/Double
Fold
Folding Unit Tray (E)
Upper Tray
Output Tray Inserter
Staple
Off
1 Staple
at Back
Saddle
Fold
Half Fold
C-Fold
1 Staple
at Front
2 Staples
Saddle
Stitch
Off
Off
Accord-
ion Fold
Copies/Pages
Type and Size
Double
Fold
Z-Fold
Detail
Punch Fold
Middle Tray
Lower Tray
Start
CA
Upper Tray
Lower Tray
Plain 1
Plain 1
2 Hole
Punch
8½x11
8½x11
Upper Tray
Output Tray Inserter
Staple
Off
1 Staple
at Back
Saddle
Fold
Half Fold
C-Fold
1 Staple
at Front
2 Staples
Saddle
Stitch
Off
Off
Accord-
ion Fold
Copies/Pages
Type and Size
Double
Fold
Z-Fold
Detail
Punch Fold
Middle Tray
Lower Tray
Start
CA
Upper Tray
Lower Tray
Plain 1
Plain 1
2 Hole
Punch
8½x11
8½x11
A
B
C
D
E

Sharp MX-M7570 Specifications

General

Print Technology	Laser
Print Speed	75 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	75 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A3
Network Connectivity	Yes
Scanner Type	Color Flatbed Scanner with Duplex Single Pass Feeder (DSPF)
Functions	Print, Copy, Scan
Original Size	A3
Connectivity	USB 2.0, Ethernet
Operating System Compatibility	Windows, Mac
