Sharp XV-Z17000 User Manual

Quick Start
-15

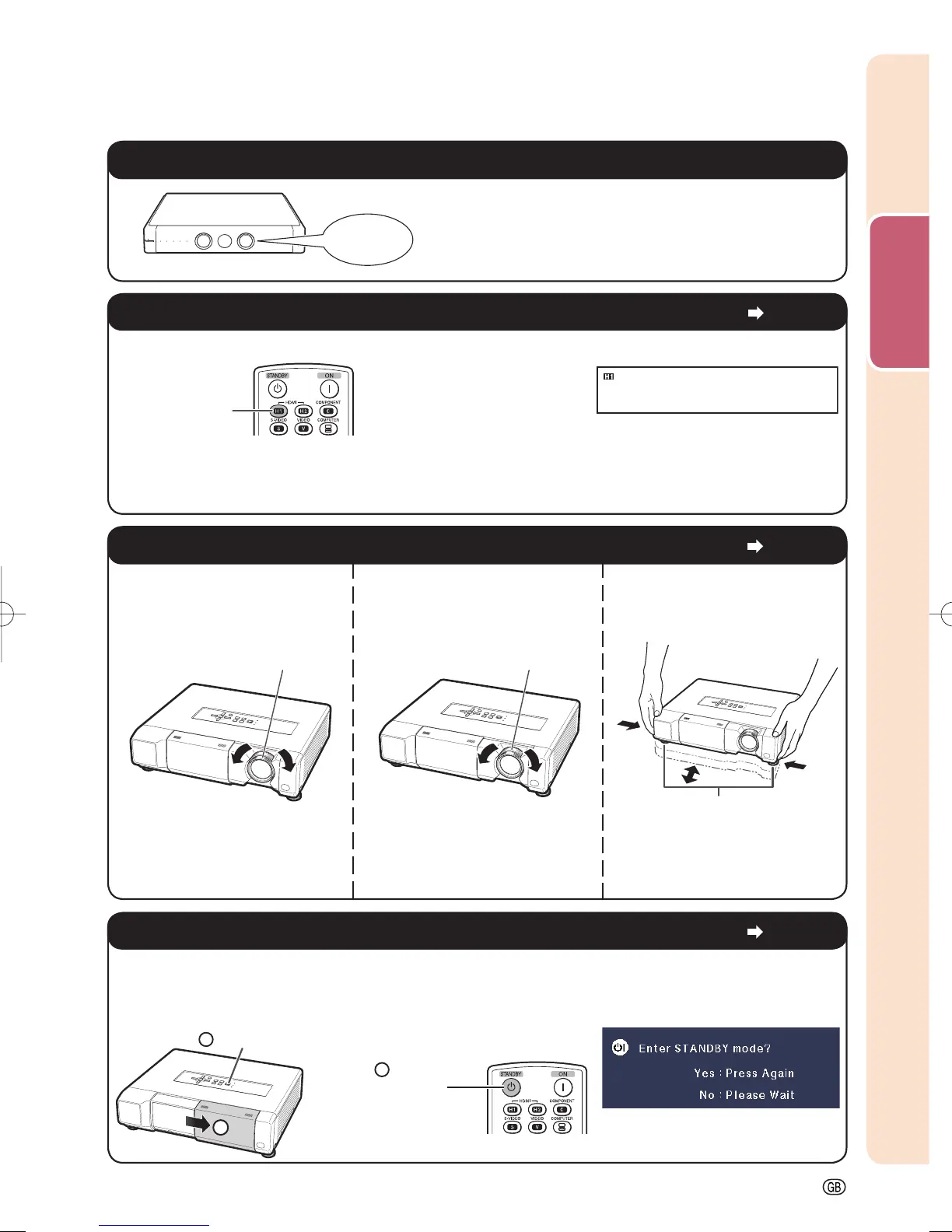

4. Turn the video equipment on and start playback
5. Select the input mode
Page 27
Press HDMI1 on the remote control to select “HDMI1” for the Input mode.
• Press HDMI1, HDMI2, COMPONENT, S-VIDEO, VIDEO and COMPUTER on the remote control to
switch the Input mode.
• Press P or R to select your desired input mode when you press INPUT on the remote control or on the
projector.
6. Adjust the projector angle, focus and zoom
Page 24
1. The focus is adjusted by
rotating the focus ring.
2. Zooming is adjusted by
rotating the zoom ring.
3. The projector angle is
adjusted by using the
adjustment feet.
Focus ring Zoom ring
Adjustment feet
7. Turn the power off
Page 23
Press STANDBY/ON on the projector or STANDBY on the remote control, then press that button again
while the confi rmation message is displayed, to put the projector into standby mode.
HDMI1 button
Playback
On-screen display
• When the image is distorted
trapezoidally, the keystone
correction is needed.
(See page 25.)
1
STANDBY
button
On the remote control
HDMI1
YPbPr
1080P
On the projector
2
1
STANDBY/ON button
XV-Z17000EUS.indb15XV-Z17000EUS.indb15 2010/12/1711:16:142010/12/1711:16:14

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
