Sharp XV-Z17000 User Manual

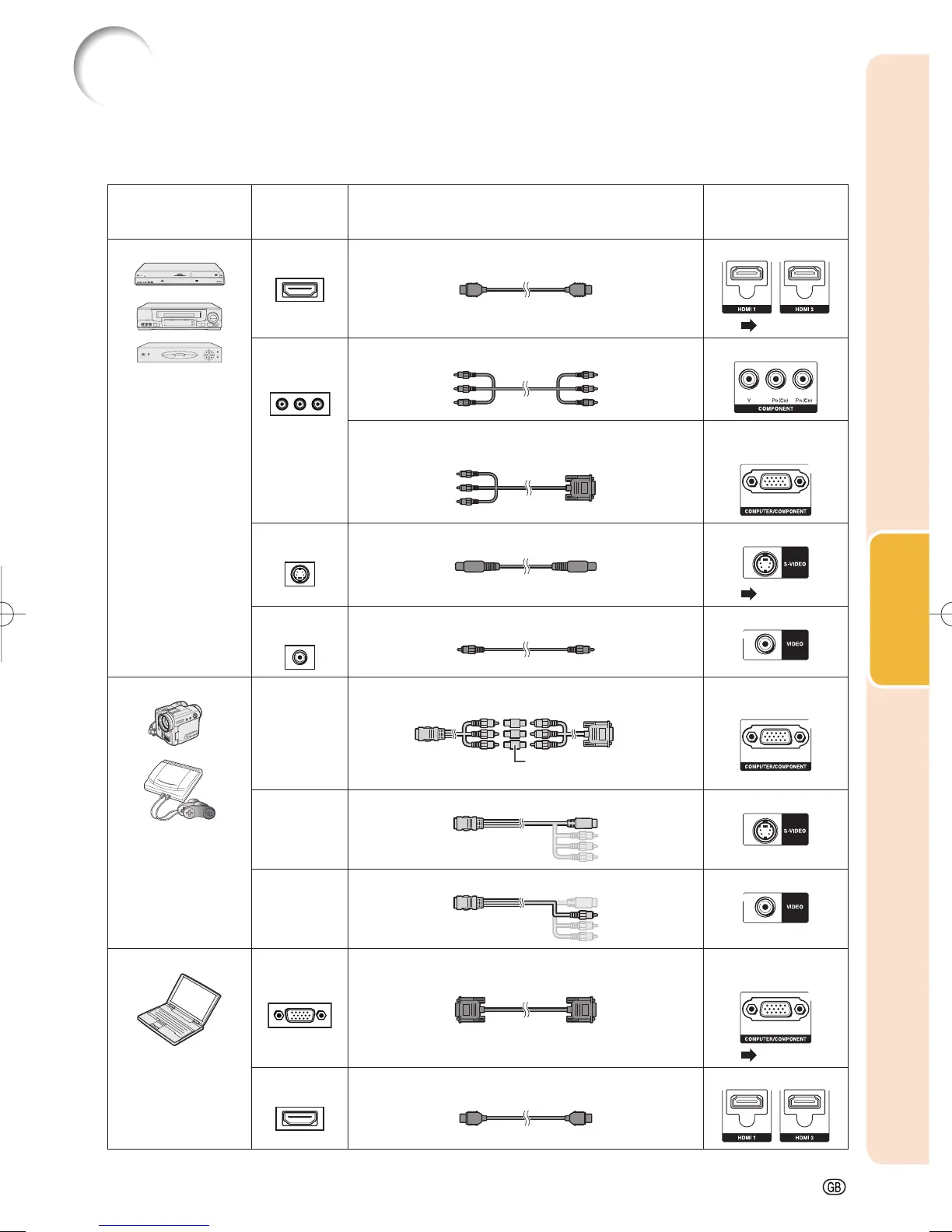

Connections
-19
Equipment
Terminal on
connected
equipment
Cable
Terminal on the
projector
Video equipment HDMI output
terminal
HDMI cable (commercially available) HDMI1, 2
( Page 20)
Component
video output
terminal
Component cable (commercially available) COMPONENT
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
COMPUTER/
COMPONENT
S-video
output terminal
S-video cable (commercially available) S-VIDEO
( Page 20)
Video output
terminal
Video cable (commercially available) VIDEO
Camera/Video game Component
video
output
terminal
Cables for a camera or a video game/3 RCA to mini
D-sub 15 pin cable (optional, AN-C3CP2)
RCA adaptor plug
(commercially available)
COMPUTER/
COMPONENT
S-video
output
terminal
Cables for a camera or a video game S-VIDEO
Video
output
terminal
Cables for a camera or a video game VIDEO
Computer RGB
output
terminal
RGB cable (commercially available) COMPUTER/
COMPONENT
( Page 21)
HDMI output
terminal
HDMI cable (commercially available) HDMI1, 2
Samples of Cables for Connection
For more details of connection and cables, refer to the operation manual of the connecting equipment.
You may need other cables or connectors not listed below.
•
•
XV-Z17000EUS.indb19XV-Z17000EUS.indb19 2010/12/1711:16:172010/12/1711:16:17

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
