Introduction
-3

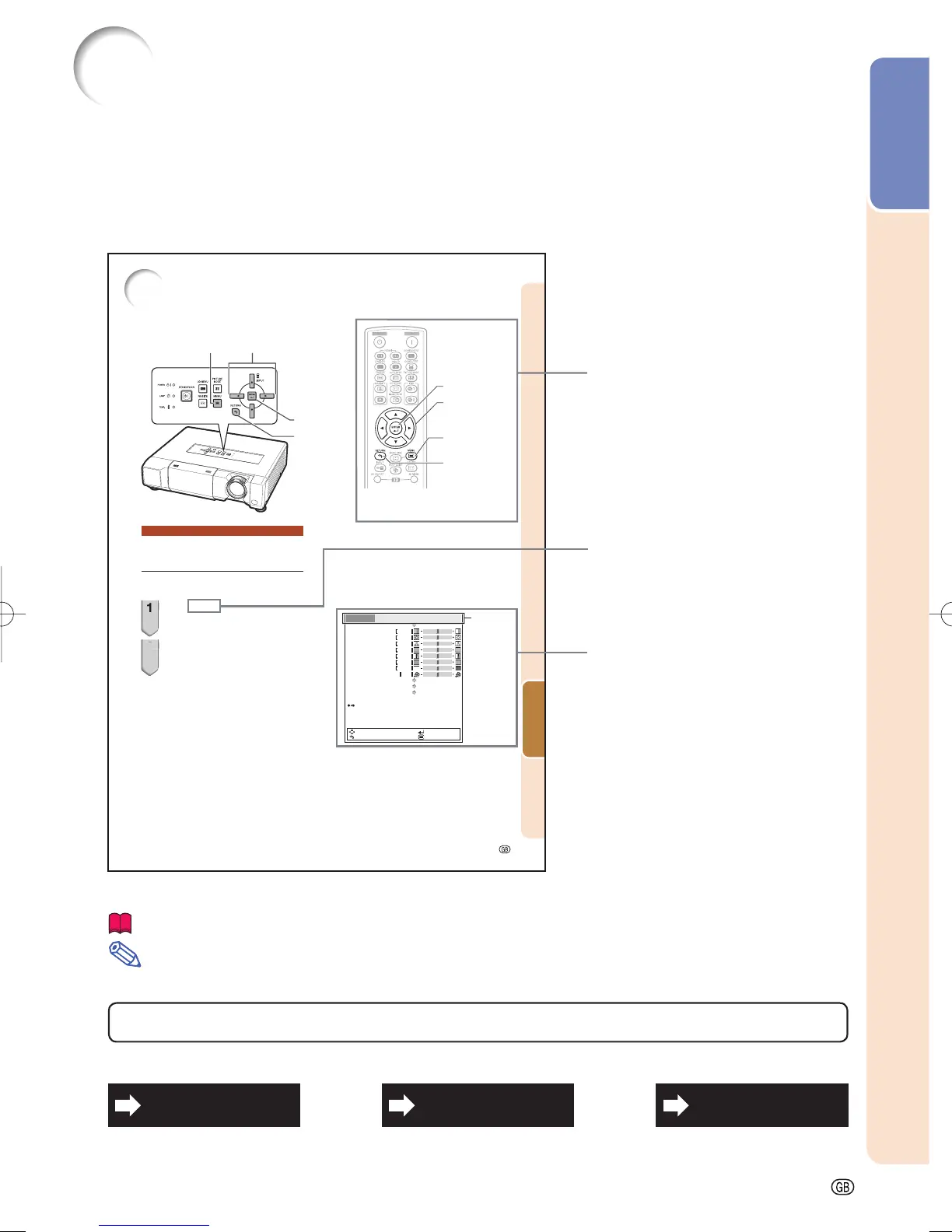

How to Read this Operation Manual
The specifi cations are slightly different, depending on the model. However, you can connect and operate all models
in the same manner.
In this operation manual, the illustration and the screen display are simplifi ed for explanation, and may differ slightly
from the actual display.

•
For Future Reference
Maintenance
P. 59
Troubleshooting
PP. 72 to 74
Index
P. 78
Buttons used in this operation
Info
............ Indicates safeguards for using the projector.
Note
............ Indicates additional information for setting up and operating the projector.
Useful Features
-35
Picture Mode Standard
High Brightness
On
Off
Contrast
Bright
Color
Tint
Sharp
Red
Blue
CLR Temp
IRIS1 (Manual)
IRIS2 (Auto)
Eco+Quiet
Advanced
Reset
SEL./ADJ.
RETURN
ENTER
END
SIG-ADJ
SCR-ADJ
PRJ-ADJ
0
0
0
0
0
0
0
0
Using the Menu Screen
Menu Selections (Adjust-
ments)
• This operation can also e performed using
the uttons on the pro ector.
1
Press MENU.
• The Picture menu screen for the se-
lected input mode is displa ed.
2
Press or to select the menu
screen to adjust on the menu
bar.
1
2
Example: “Picture” menu screen when
COMPONENT is selected for
input mode
RETURN utton
Ad ustment uttons
(///)
ENTER utton
MENU utton
Ad ustment uttons
(///)
Menu bar
ENTER utton
RETURN utton
MENU utton
• Press RETURN
to return to the
previous screen
hen the menu is
displa ed.
_?
?_
?_
Button used in this step
On-screen display
XV-Z17000EUS.indb3XV-Z17000EUS.indb3 2010/12/1711:16:072010/12/1711:16:07

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
