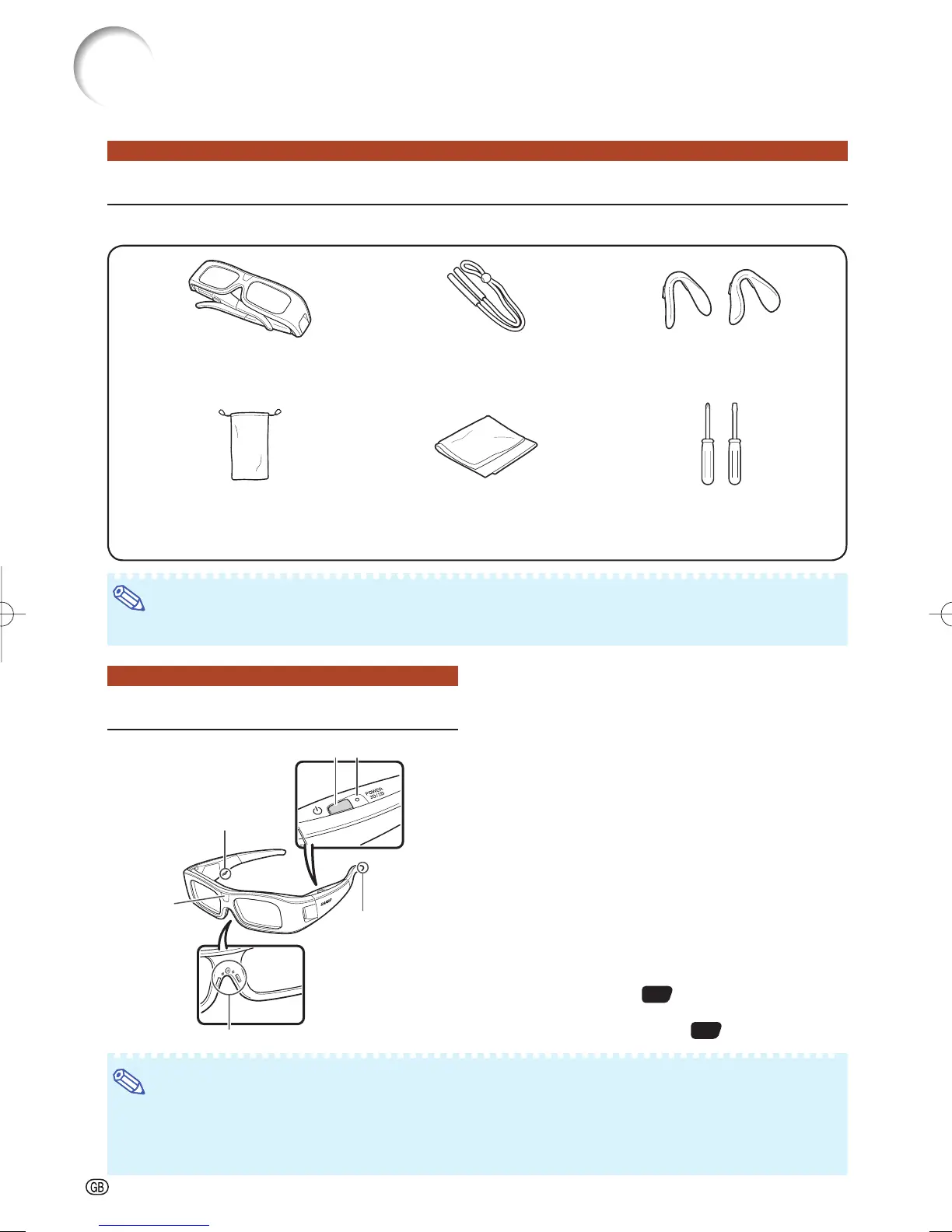

Sharp XV-Z17000 User Manual

-50
Supplied Accessories for 3D Glasses
Make sure the following accessories are provided with the 3D Glasses. Two sets of 3D Glasses are provided.
Nose pad *
(Large ×2, small ×2)
Page 52
Cleaning cloth
(×2)
Glasses case
(×2)
3D Glasses band *
(×2)
Page 52
* Use the 3D Glasses band and nose pad as needed.
Precision screwdriver
(Phillips ×2, slotted ×2)
Page 51
3D Glasses
(×2)
Pages 51 to 54
Note
• Please contact your local authority for the correct method of disposal of this product and/or packaging.
1 2
4
5
3
6
1 Power button
•Press for at least 2 seconds to turn on and off the
3D Glasses.
•When the 3D Glasses are turned on, pressing this
button switches between 2D and 3D modes. (See
page 52.)
2 LED light
•Blinks 3 times when the power is turned on.
•Blinks 2 times when 2D mode is selected.
•Blinks 3 times when 3D mode is selected.
•Blinks 6 times when the battery power is low.
•Lights for 2 seconds when the power is turned off.
3 Service terminal
This terminal is for service use only.
Please do not connect any other device to this terminal.
4 Infrared receiver
An infrared signal sent from the projector is refl ected onto
the screen. The refl ected infrared signal is then received
by the infrared receiver. The 3D Glasses turn off
automatically after 3 minutes if no signal is received.
5 Nose pad mount
52
The dedicated nose pad can be mounted here.
6 3D Glasses band mount
52
The dedicated 3D Glasses band can be mounted here.
Note
• Do not soil or apply stickers or other obstacles to the infrared receiver. Doing so may block signals from
the screen and prevent the 3D Glasses from working correctly.
• Interference from other infrared communications equipment may prevent you from viewing 3D images
correctly.
Enjoying 3D Image Viewing (Continued)
Part Names
XV-Z17000EUS.indb50XV-Z17000EUS.indb50 2010/12/1711:16:362010/12/1711:16:36

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
