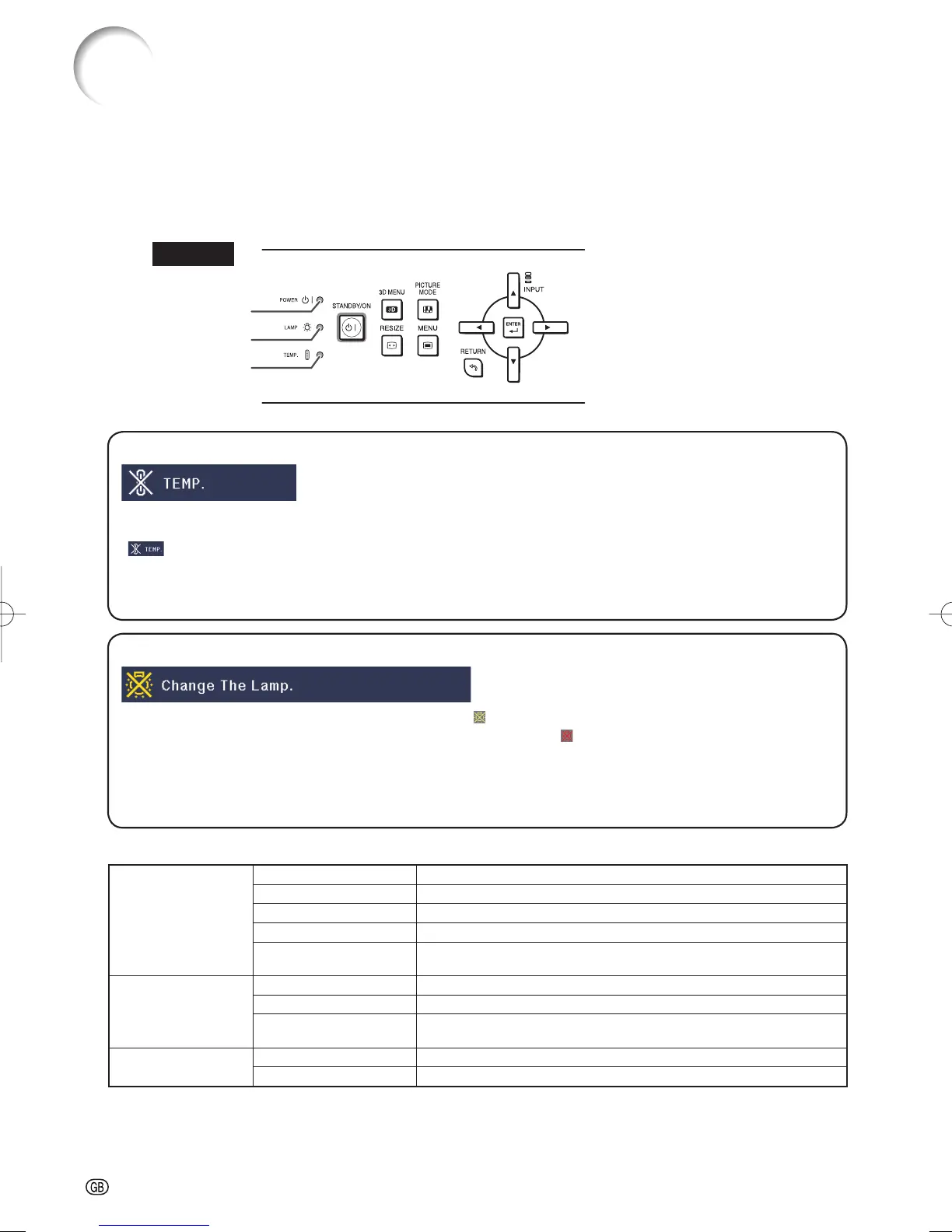

About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting
location, the temperature warning indicator will blink. And if the temperature keeps on rising,
“
” will illuminate in the lower left corner of the picture with the temperature warning indicator blinking.
If this state continues, the lamp will turn off, the cooling fan will run and then the projector will enter
standby mode. When you fi nd the temperature warning indicator blinking, be sure to perform the measures
described on page 61.
Maintenance Indicators
 The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector
indicate problems inside the projector.
 If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and
the projector will enter standby mode. After the projector has entered standby mode, follow the procedures
given below.
Top View
Lamp indicator
Temperature warning
indicator
Power indicator
About the lamp indicator
 When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will be displayed on
the screen. When the percentage becomes 0%, it will change to
(red), the lamp will automatically turn off
and then the projector will automatically enter standby mode. At this time, the lamp indicator will illuminate
in red.
 If you try to turn on the projector a fourth time without replacing the lamp, the projector will not
turn on.
Indicators on the Projector
Power indicator Red on Normal (Standby)
Green on Normal (Power on)
Red blinks Abnormal (See page 61.)
Green blinks Normal (Cooling)
Green and orange blink
alternately
The lens shutter is closed. (See page 23.)
Lamp indicator Green on Normal
Green blinks The lamp is warming up.
Red on The lamp is shut down abnormally or requires to be changed. (See
page 61.)
Temperature warning
indicator
Off Normal
Red on/Red blinks The internal temperature is abnormally high. (See page 61.)
XV-Z17000EUS.indb60XV-Z17000EUS.indb60 2010/12/1711:16:442010/12/1711:16:44

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
