Numbers in refer to the main pages in this operation manual where the topic is explained.
Projector

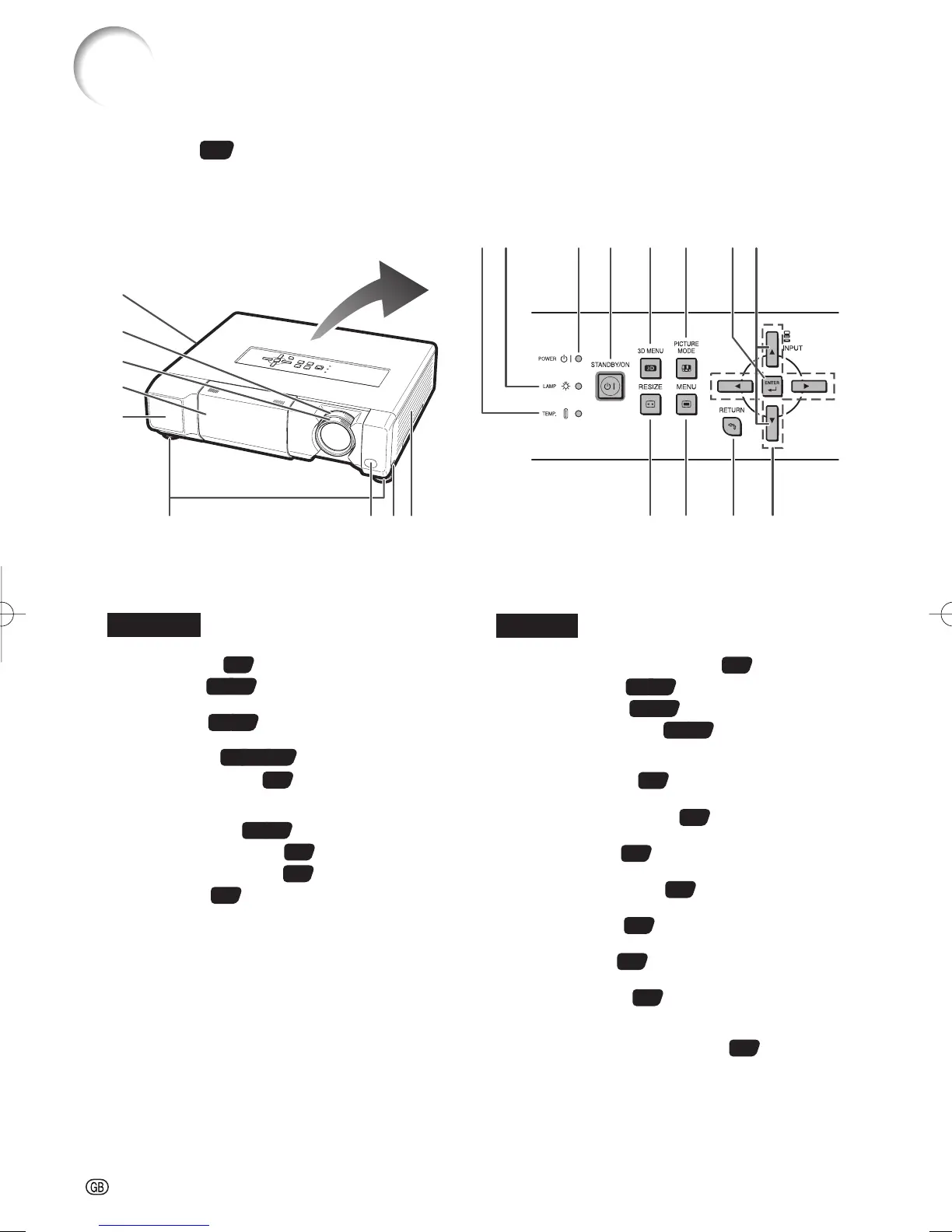

Part Names and Functions
Front View
1 Exhaust vent
59
2 Zoom ring
15, 24
For enlarging/reducing the picture.
3 Focus ring
15, 24
For adjusting the focus.
4 Lens shutter
23, 28, 63
5 IR (infrared) emitter
52
Emits an infrared signal when 3D images are
projected.
6 Adjustment foot
15, 24
7 Remote control sensor
13
8 HEIGHT ADJUST lever
24
9 Intake vent
59
Top View
10 Temperature warning indicator
60
11 Lamp indicator
23, 60
12 Power indicator
23, 60
13 STANDBY/ON button
14, 23
For turning the power on and putting the projector into
standby mode.
14 3D MENU button
53
For displaying the 3D MENU screen.
15 PICTURE MODE button
28
For selecting the appropriate picture.
16 ENTER button
35
For setting items selected or adjusted on the menu.
17 INPUT buttons (P/R)
27
For switching input mode.
18 RESIZE button
30
For switching the picture size (NORMAL, 16:9, etc.).
19 MENU button
35
For displaying adjustment and setting screens.
20 RETURN button
35
For returning to the previous menu screen during menu
operations.
21 Adjustment buttons (P/R/O/Q)
35
For selecting menu items.
2
4
5
6
3
8 9
1
7
121110 13 14
18
19 20 21
15 1716
XV-Z17000EUS.indb10XV-Z17000EUS.indb10 2010/12/1711:16:102010/12/1711:16:10

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
