Sharp XV-Z17000 User Manual

Introduction
-11

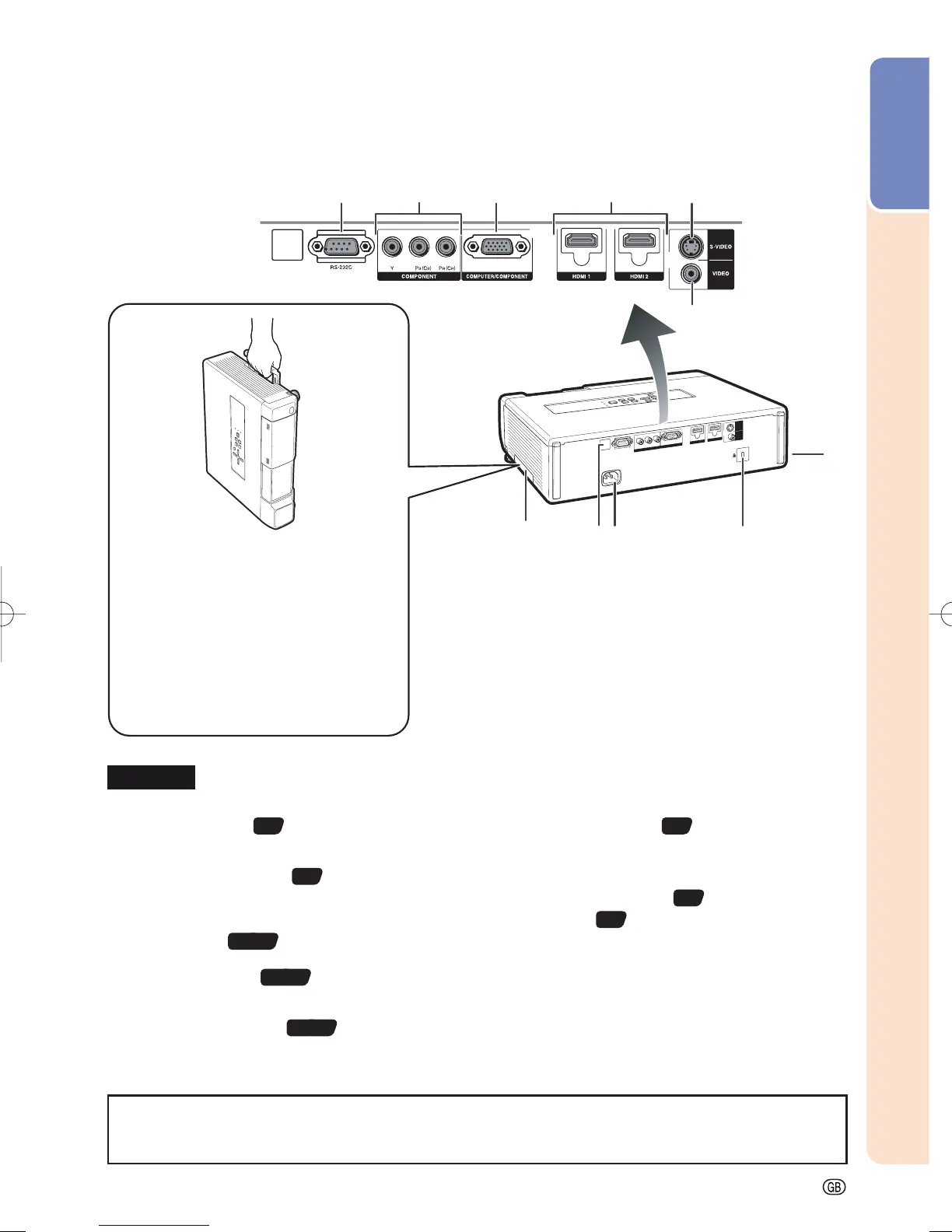

Projector (Rear View)
Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System.
Refer to the information that came with the system for instructions on how to use it to secure the projector.
•
Terminals
11
79 108
123 5
4
6
Using the Carrying Handle
When transporting the projector,
carry it by the carrying handle on
the side.
Always close the lens shutter to
prevent damage to the lens when
transporting the projector.
Do not lift or carry the projector
by the lens as this may damage
the lens.
•
•
1 RS-232C terminal
22
Terminal for controlling the projector using a
computer.
2 COMPONENT terminals
19
Terminal for connecting video equipment with
component output terminal.
3 COMPUTER/COMPONENT
input terminal
19, 21
Terminal for computer RGB and YPbPr signals.
4 HDMI1, 2 terminals
19, 20
Terminal for connecting video equipment with
HDMI output terminal.
5 S-VIDEO input terminal
19, 20
Terminal for connecting video equipment with
an S-video terminal.
6 VIDEO input terminal
19
Terminal for connecting video equipment.
7 Carrying handle
For carrying the projector.
8 Remote control sensor
13
9 AC socket
23
Connect the supplied power cord.
10 Kensington Security Standard connector
11 Security bar
XV-Z17000EUS.indb11XV-Z17000EUS.indb11 2010/12/1711:16:112010/12/1711:16:11

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
