Sharp XV-Z17000 User Manual

-12
Numbers in refer to the main pages in this operation manual where the topic is explained.

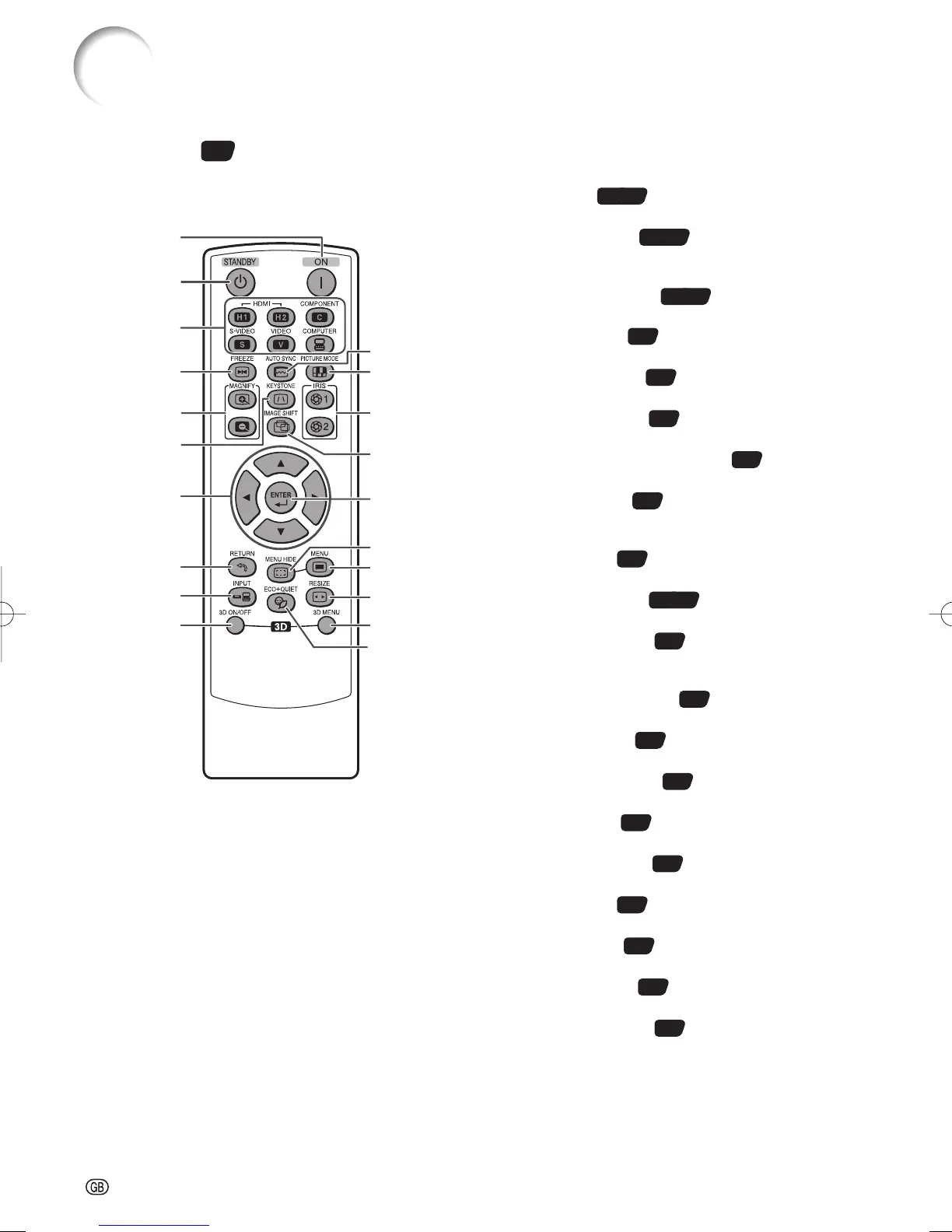

Remote Control
2
3
4
7
9
6
1
8
10
20
11
12
5 13
14
15
17
18
19
16
1 ON button
14, 23
For turning the power on.
2 STANDBY button
15, 23
For putting the projector into the standby mode.
3 HDMI1, 2, COMPONENT, S-VIDEO, VIDEO,
COMPUTER buttons
15, 27
For switching to the respective input modes.
4 FREEZE button
28
For freezing images.
5 MAGNIFY buttons
29
For enlarging/reducing part of the image.
6 KEYSTONE button
25
For entering the Keystone mode.
7 Adjustment buttons (P/R/O/Q)
35
For selecting and adjusting menu items.
8 RETURN button
35
For returning to the previous me nu screen during menu
operations.
9 INPUT button
27
For switching input mode.
10 3D ON/OFF button
53, 54
For switching between 2D and 3D modes.
11 AUTO SYNC button
28
For automatically adjusting images when connected to
a computer.
12 PICTURE MODE button
28
For selecting the appropriate picture.
13 IRIS 1, 2 buttons
29
For switching “High Brightness” and “High Contrast”.
14 IMAGE SHIF T but ton
27
For shifting images horizontally and vertically.
15 ENTER button
35
For setting items selected or adjusted on the menu.
16 MENU HIDE button
29
For temporarily hiding menu screen.
17 MENU button
35
For displaying adjustment and setting screens.
18 RESIZE button
30
For switching the picture size (NORMAL, 16:9, etc.).
19 3D MENU button
53
For displaying the 3D MENU screen.
20 ECO+QUIET button
29
For lowering the noise of the cooling fan and extending
the lamp life.
Part Names and Functions (Continued)
XV-Z17000EUS.indb12XV-Z17000EUS.indb12 2010/12/1711:16:112010/12/1711:16:11

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
