Sharp XV-Z17000 User Manual

-20
Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices
to be connected. After making all connections, turn on the projector and then the other devices.
Connecting Equipment with HDMI Output Terminal to the HDMI Terminal on the Projector
For video connection, use a cable that conforms to HDMI standards. Using cables that do not conform to HDMI
standards may result in a malfunction.
Note
• Depending on specifi cations of equipment or the DVIÙHDMI digital cable, the signal transmission may
not work property. (The HDMI specifi cation does not support all connections to equipment that has digital
output terminal using a DVIÙHDMI digital cable.)
• HDMI (High-Defi nition Multimedia Interface) is a digital AV interface that can deliver a high-defi nition video
signal, multi-channel audio signal, and bi-directional control signal all in just one cable.
• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital
video signal does not degrade when transmitted, and a high-quality image with a simple connection can
be enjoyed.

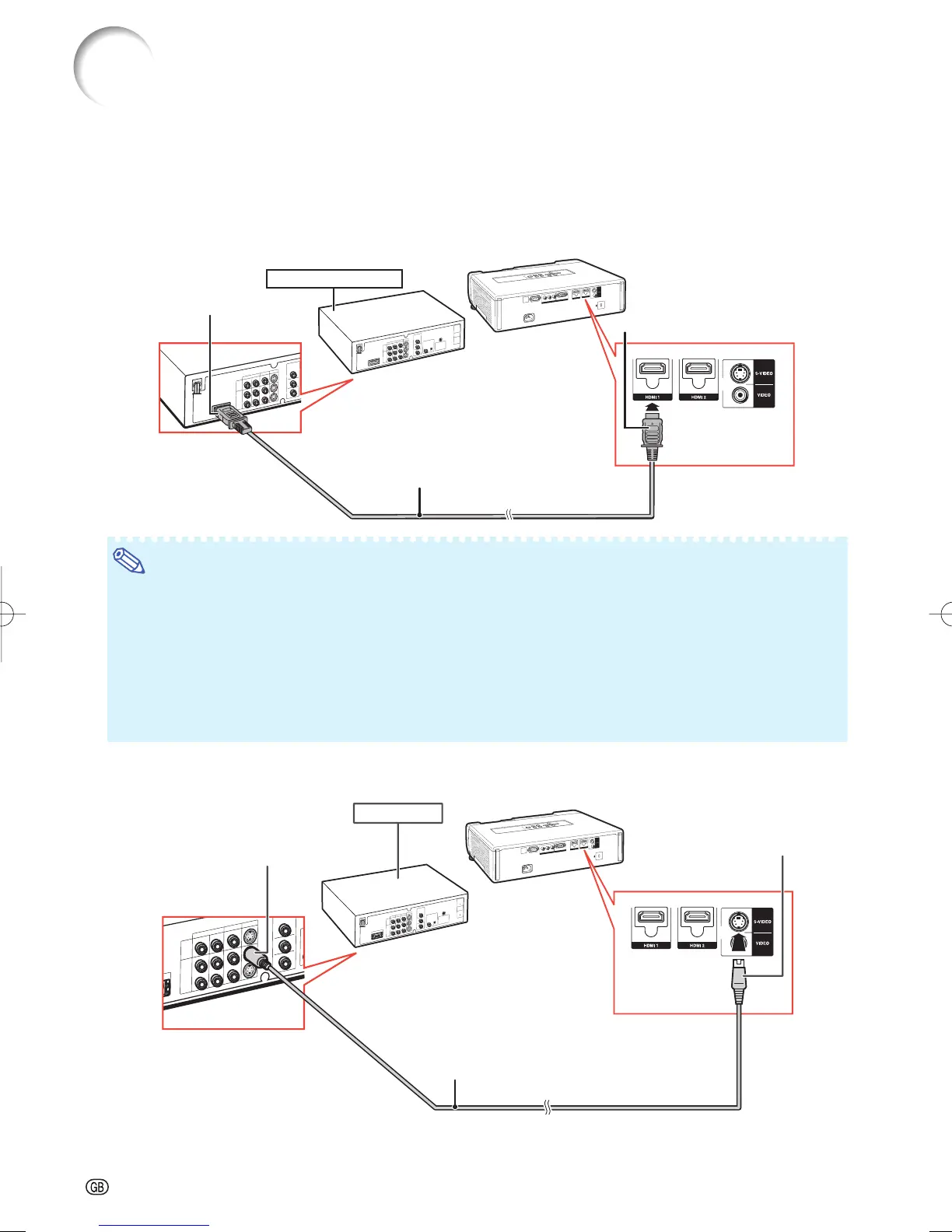

Connecting to Video Equipment
DVD Player, etc.
To S-video output terminal
S-video cable
(commercially available)
To S-VIDEO terminal
HDMI-compatible device
To HDMI output terminal
HDMI cable (type A)
(commercially available)
To HDMI1 or 2 terminal
Connecting to Equipment with S-video Output Terminal
Refer to “Samples of Cables for Connection” on page 19 for connecting other equipment.
XV-Z17000EUS.indb20XV-Z17000EUS.indb20 2010/12/1711:16:192010/12/1711:16:19

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
